Alarm Annuciator with Latest technology with Rugged Plastic Encloser :

Providing excellence with Latest Technology with Rugged Plastic Enclosures with High Strength Alarm Annunciators & Hooters

Prompt detection and rectification of any system failure or mal-operation is of vital importance for any power or process plant. PROTON Alarm Annunciators continuously monitor the various process parameters and equipment status in power-stations, process plants and these parameter are displayed at centralized control room or on control panel. PROTON Annunciators stand for instant alarming of any abnormal condition occurs during process and protect the valuable equipments. PROTON Annunciators ensure the higher order of reliability and thus provide a comprehensive service to the industry for monitoring, alarm and control of process plant parameters. These highly advanced and compact systems use the latest single chip micro-computer technology for it’s design and offer multipoint annunciation with operating sequences as per prevailing standards and with many optional features as indicated aside.

Application Areas:

Thermal power stations and sub-stations of Electricity Boards, Steel Plants, Sugar Industries,Cement and Chemical Industries, A.C. Plants, Process Plants, Heat Treatment Plants, Hotels, Fire Alarm Systems and in telephone exchange as Audio-Visual panels etc

Salient Features :

• Based on latest single chip microcontroller technology. Compact design for reliable and accurate operation.
• Fast response time.
• Models available from 4 to 64 windows.
• Field selectable operational sequences.
• Incorporates a group of super bright LED’s instead of twin filament lamps for ultimated life at very less power consumption.
• Annunciator can communicate with external master device using Mod bus (Rs 485) - 2 wire Communication.
• Actuated thro’ potential free fault input contacts.
• Fault input contacts NO/NC site selectable by means of DIP switches.
• Opto-insolated all fault inputs, immune to noise disturbances.
• Provision for external audible (Bell or Hooter) thro’ potential free relay output contact.
• All models are with built-in TestSilence accept & Reset push buttons, provision on back side terminal strip.
• The extensive protection so provided safeguards all I.C.'s & components from failute, thereby offering comokete reliability.
• All cards interconnected with plug-in polaride connectors for easy servicing.
• Rugged Plastic enclosure with high strength.
• Test facility checks flashing, accept and reset operations.
• Specially designed power supply for high noise immunity, wide input variations and having built-in transient protection.
• Offering complete reliability.
• Rugged M.S. enclosure with high strength.
• Easy to install.
• Type tested for noise, impulse and functional test as per various standards.

Optional Features :

• Multicoloured inscription plate for easy differentiation of Trip and Non-Trip fault annunciations.
• Site selectable facility for grouping of Trip and Non-Trip Faults or Trip and Alarm faults for visual and audio discrimination thro'two separate output relay contacts.
• Extra relay output contact per channel for repeat annunciation.
• Actuated thro' LIVE fault input contacts. (AC or DC voltage directly can be given.)
• Provision for Dual (AC & DC) power supply with automatic changeover with A. C. fail or D. C. fail annunciation.
• Computer interface with 485 modbus ASCII protocol.
• Output connections for remote Test, Accept and Reset operations.
• Partly POTENTIAL FREE and partly LIVE fault input contacts can be given in one single unit.
• Choice of different window sizes 30x30 or 30x65mm.

Technical Specifications :

Tpical Connection :

	Type tests as per various standards conducted on 'PROTON' Annunciator unit
	Electrical Tests Test Description Reference High voltage surge Susceptibility test 2KV AC (RMS) for 1 min. or 2.5 KV for 1 sec IEC -255-4, IEEE 472 - 1974 IS3231 Impulse voltage withstand test 5 KV impulse at all i/p and o/p points IS 8686-1977 IEEE - 472 BS - 923 High voltage high frequency disturbance (Noise) test Longitudinal (2.5 KV) Transverse (1 IS - 8686-1977 Mains supply variation +10% - 15% Mfr's. test Environmental Tests Dry Heat test 60Hrs. at 70° C IS 9000/II/77 Burn in test in energised condition 90 Hrs. at 70° C IS 9000/77 Damp Heat test 72 Hrs. at 55° C at 90% R.H. IS 9000/IV/79 Cold Test -25° C for 48 Hrs IS 9000 Dump Test 100 Bumps/axes @3 bumps/sec. @3 bumps/sec. IS 9000/VII/64 Application Areas Thermal power stations and sub-stations of Electricity Boards, Steel Plants, Suger Industries, Cement and Chemical Industries, A.C. Plants, Process Plants, Heat Treatment Plants, Hotels, Fire Alarm Systems and intelephone exchanges as Audio-Visual panels etc.
• Power consumption :	0.8VA per window / 0.5 W
• Terminal :	Suitable for 0.2 to 2.5 mm cable
• Scan time :	60 ms

Operating Sequences Chart

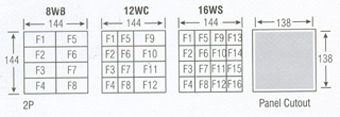

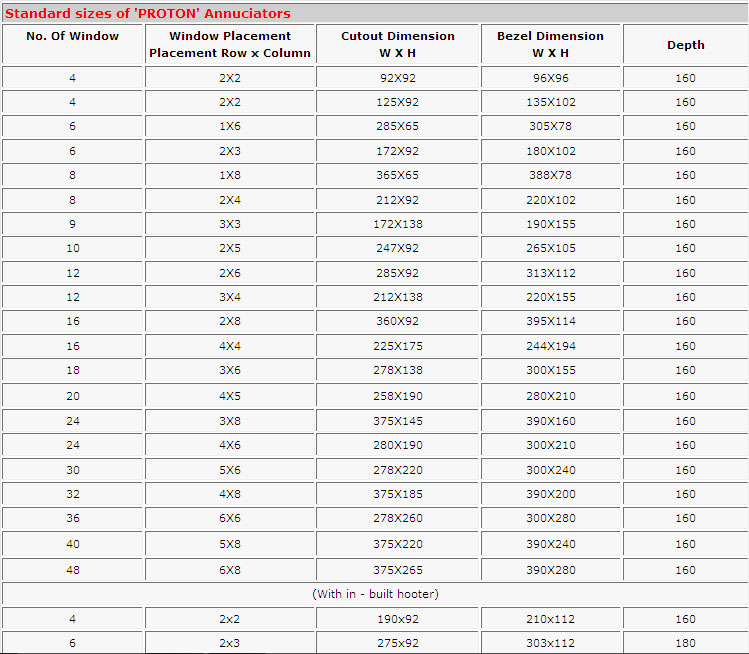

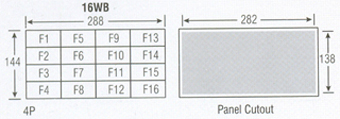

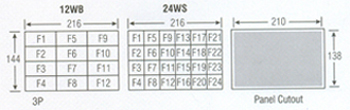

Dimensional Details :

Type tests as per various standards conducted on PROTON Annunciator unit

Application Areas :

Thermal power stations and sub-stations of Electricity Boards, Steel Plants, Sugar Industries, Cement and Chemical Industries, A.C. Plants, Process Plants, Heat Treatment Plants, Hotels, Fire Alarm Systems and in telephone exchange as Audio-Visual panels etc.

Hooters :

Introduction :
PROTON Alarm Annunciators continuously monitor the various process parameters and equipment status in power-stations, process plasnt and these parameter are displayed at centralized control room or on control panel. PROTON Annunciators ensure the higher order of reliability and thus provide a comprehensive service to the industry for monitoring, alarm and control of process plant parameters.

Salient Features :
• Based on latest single chip microcontroller technology Compact designe for reliable and accurate operation.
• Fast response time.
