Microcontroller For Air Conditioners :
SALIENT FEATURES
SPECIFICATIONS :
| Mains Supply :- | 230 VAC +/- 10% , 50 Hz |
| O/P contacts :- | Separate o/ps for 2 A/Cs. |
| Output Contact rating :- | 25 Amps |
| Protections :- | OV :- Cutoff 270 V & Cut in 260V |
| UV :- Cutoff 160 V & Cut in 170V | |
| Indications :- | A/C ON , On timer,OV,UV,Auto,Manual mode |

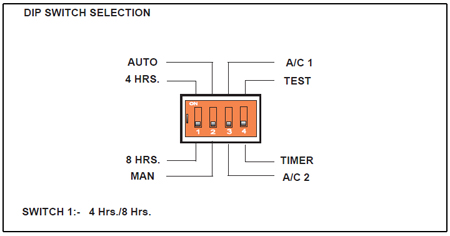

| Working :- | 1. If Auto/man switch is at Auto position& Test/Timer sitch is in Timer position then each AC runs for Hrs.selected. 2. If Auto/man switch is at Auto position& Test/Timer sitch is in Test position then both AC runs for 10 minutes one by one. 3. If Auto/man switch is at Man position then the A/C will be ON which is selected by third DIP switch. It will be continuously ON. |
