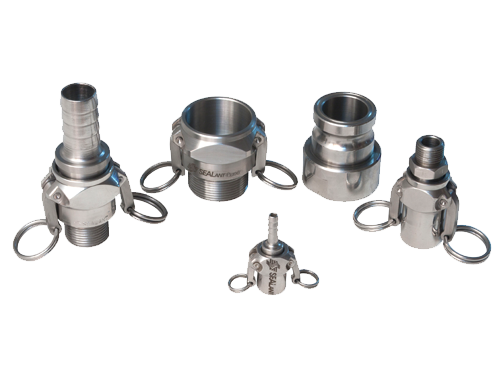

CAM Lock Couplings

Product Available

Download couplings brochure


Features

Provides easiest way of connection on large diameter pipes. Give uniform circular surface sealing. No Friction so no seal wear & hence longer life. No hindrances to flow so the Pressure drop is minimum. Can be locked to prevent accidental opening.

All parts are machined out of drawn rods. No casting or welding is used. This increase the strength & capacity to withstand high pressures. Heat treatment & tempering gives high wear resistance where necessary

Application

  • Loading & Unloading of tankers for water, petrol, chemicals.
  • Internationally accepted design, for Fire Fighting hose connections.
  • For large vacuum or suction lines.
  • Flow of powders in chemical, pharmaceutical & Fertilizer industries.
  • Cooling water connections for paper rolling mills.
  • Unloading from large storage tanks for paints or chemicals.
  • Ships & Atomic Energy plants.


Technical specifications

Male Threading Sockets

Size L A TØ BØ W A/F
C12-SM 76 14 1/2 12 54 32
C19-SM 78 18 3/4 19 61 38
C15-SM 84 24 1 25 67 46
C38-SM 84 24 1-1/2 38 80 60
C50-SM 87 27 2 50 92 72

Male Threading Plug

Size L A TØ BØ Hx
C12-PM 52 14 1/2 12 25
C19-PM 59 18 3/4 19 30
C15-PM 65 24 1 25 38
C38-PM 69 24 1/2 38 56
C50-PM 74 27 2 50 70

Female Threading Sockets

Size L A TØ BØ W A/F
C12-SF 60 15 1/2 12 54 32
C19-SF 60 19 3/4 19 61 38
C25-SF 60 25 1 25 67 46
C38-SF 60 25 1-1/2 38 80 60
C50-SF 60 28 2 50 92 72

Female Threading Plug

Size Hx BØ TØ A L
C12-PF 47 15 1/2 12 25
C19-PF 55 19 3/4 19 32
C25-PF 61 25 1 25 38
C38-PF 63 24 1-1/2 38 56
C50-PF 66 28 2 50 70

Hose Pipe Sockets

Size L A TØ BØ W A/F
C12-SH 74 14 14 9.5 54 32
C19-SH 84 18 21 16 61 38
C25-SH 94 24 27 22 67 46
C38-SH 99 24 40 34 80 60
C50-SH 109 27 52 46 92 72

Hose Pipe Sockets 1

Size L A TØ BØ HØ
C12-PH 72 38 14 9.5 24
C19-PH 85 45 21 16 30
C25-PH 93 55 27 22 38
C38-PH 100 65 40 34 50
C50-PH 110 70 52 46 65
