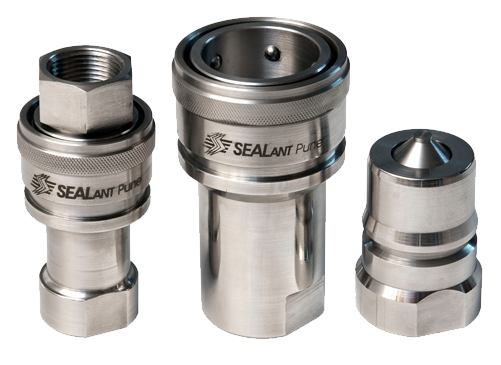

Double Shut off Couplings

These couplings have automatic shut off valve at both ends; in socket & plug also. So on disconnection, both socket & plug are sealed instantly. This type is widely used on Hydraulic lines carrying oils, water, chemicals & petroleum products. Material & seal are selected to suit the type of fluid.

Product Available

Download couplings brochure


Technical specifications

Size L DØ A/F T A
26-S 55 28 19 1/4 13
29-S 65 35 21 3/8 14
212-S 73 45 29 1/2 17
219-S 88 55 35 3/4 15
225-S 102 102 41 1 20
230-S 115 79 54 1-1/4 24
238-S 125 89 63 1-1/2 25
250-S 132 109 77 2 27
Size L A/F T A
26-P 36 17 1/4 13
29-P 40 21 3/8 13
212-P 44 30 1/2 15
219-P 52 35 3/4 17
225-P 62 42 1 20
230-P 70 54 1-1/4 24
238-p 75 63 1-1/2 24
250-P 80 77 2 27
