Single Shut off Couplings

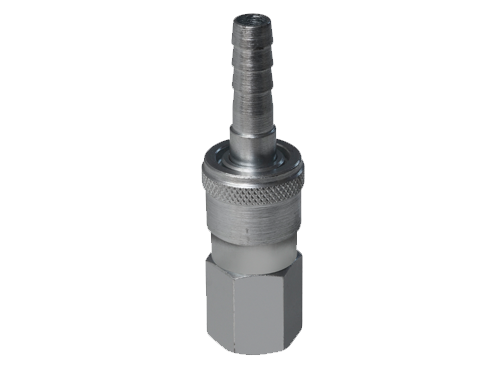

These couplings have automatic shut off valve only in the socket. Therefore is used on the supply side.

This type is popularly used for air piping. Connecting pneumatic tools, cooling water connections for moulds and connections for breathing apparatus. Additional safety lock can also be provided.

Product Available

Download couplings brochure


Application

Mining, Engineering, Aircraft & Petroleum Industries.

Technical specifications

Male Threading Sockets

Size L DØ A/F T A BØ
16-SM 55 22 19 1/4 13 6.4
19-SF 51 25.4 22 3/8 14 9.5
112-SM 63 35 30 1/2 16 12.7
119-SM 67 38 32 3/4 18 19.1

Female Threading Sockets

Size L DØ A/F TØ A
16-SF 50 22 19 1/4 12
19-SF 51 25.4 22 3/8 13
112-SF 57 35 30 1/2 14
119-SF 61 38 32 3/4 19

Hose Pipe Sockets

Size L DØ TØ A BØ
16-SH 72 22 8 30 4.5
19-SH 76 25.4 11 34 7.5
112-SH 83 35 14.5 36 9.5
119-SH 92 38 21 45 17

Male Threading Plug

Size L A/F TH A BØ
16-PM 41 14 1/4 13 6.4
19-PM 42 19.1 3/8 14 9.5
112-PM 50 25.4 1/2 16 12.7
119-PM 55 30 3/4 18 19.1

Female Threading Plug

Size L A/F TØ A BØ
16-PF 36 16 1/4 13 6.4
19-PF 37 17 3/8 14 9.5
112-PF 41 30 1/2 15 12.7
119-PF 45 32 3/4 17 19.1

Hose Pipe Plug

Size L DØ TØ A BØ
16-PH 57 14 8 30 4.5
19-PH 61 19.1 11 34 7.5
112-PH 66 25.4 14.5 36 9.5
119-PH 77 30 21 45 17
