Butt Weld Fitting End Caps Manufacturer, Supplier and Exporter in Mumbai, India

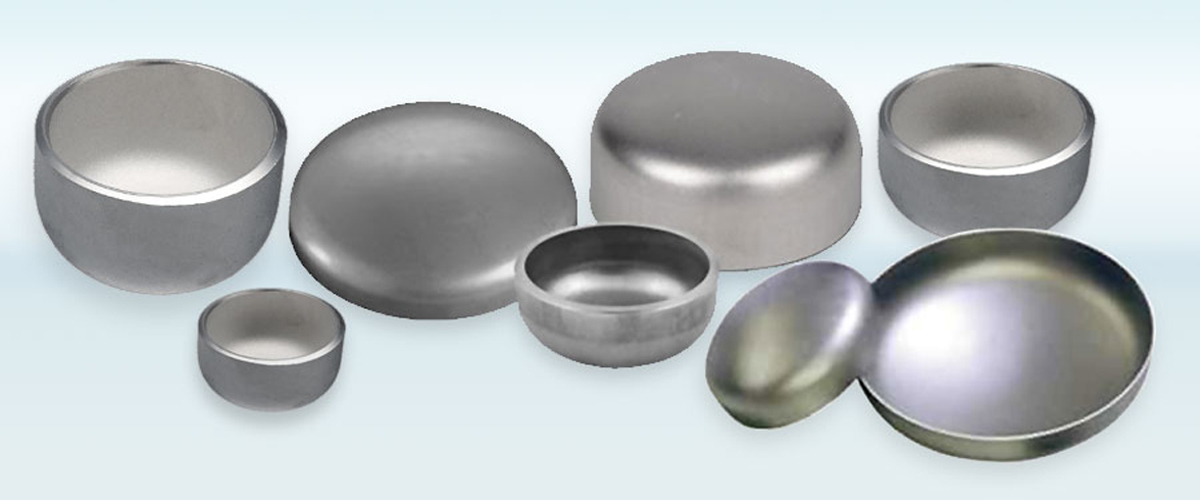

Butt-weld Fitting Caps can be manufactured in various grades of Stainless Steel include 304, 316, 304L, 316L, 317 etc and Alloy Steel include Monel, Inconel, Hastelloy, Duplex Steel, etc. Tube Innovatives (India) is among one of the leading manufacturers and exporters of high-quality pipe fittings by using the latest technology and in-house QC system. We offer our materials with complete certification and as per national and international standards. We also provide Buttweld Pipe and End Caps as per your requirement with appropriate quantity order. Refer our pipe fitting and Caps specification and size chart as mentioned below.
| End-Caps Specifications |
| Family |
Butt Weld Pipe Fitting |
Shape |
Cap |
| Material |
Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, Nickel Alloy |
Make |
TII |
| Size |
1/8″-48″ |
Thickness |
SCH 5-SCH 160 |
| Type |
Seamless, Welded(ERW), Fabricated |
Variation |
Pipe Caps, End Caps |
| Finish |
Shot Blast, Sand Blast, Electro polish |
End |
Bevelled |
| Marking |
TII-Specs-Description-Heat No. |
Packing |
Protected by Cap |

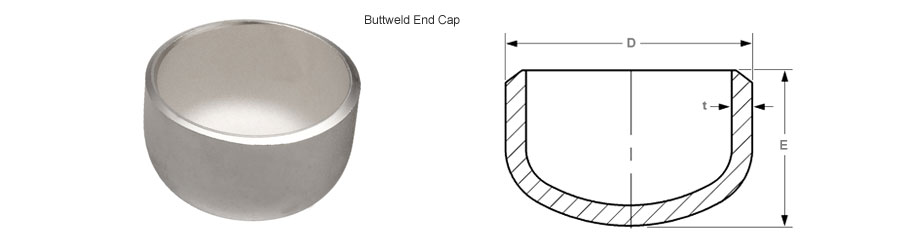

| Size Chart |
| NPS |
O.D. (D) |
LENGTH (E) |
| 1/2 |
21.3 |
25 |
| 3/4 |
26.7 |
25 |
| 1 |
33.4 |
38 |
| 1.1/4 |
42.2 |
38 |
| 1.1/2 |
48.3 |
38 |
| 2 |
60.3 |
38 |
| 2.1/2 |
73 |
38 |
| 3 |
88.9 |
51 |
| 3.1/2 |
101.6 |
64 |
| 4 |
114.3 |
64 |
| 5 |
141.3 |
76 |
| 6 |
168.3 |
89 |
| 8 |
219.1 |
102 |
| 10 |
273 |
127 |
| 12 |
323.8 |
152 |
| 14 |
355.6 |
165 |
| 16 |
406.4 |
178 |
| 18 |
457 |
203 |
| 20 |
508 |
229 |
| 22 |
559 |
254 |
| 24 |
610 |
267 |
| 26 |
660 |
267 |
| 28 |
711 |
267 |
| 30 |
762 |
267 |
| 32 |
813 |
267 |
| 34 |
864 |
237 |
| 36 |
914 |
267 |
| 38 |
965 |
305 |
| 40 |
1016 |
305 |
| 42 |
1067 |
305 |
| 44 |
1118 |
343 |
| 46 |
1168 |
343 |
| 48 |
1219 |
343 |
| Tolerance Chart |
| All Fittings |
Caps |
| Nominal Pipe Size |
Outside(1) Diameter at Bevel |
Inside(2) Diameter at End |
Wall(2) Thickness |
Over all Dimension
E |
| 1/2 to 2 1/2 |
+1 |
+0.8 |
Not less than 87.5% of Nominal thickness |
+4 |
| 3 to 3 1/2 |
+1 |
+1.6 |
+4 |
| 4 |
+2-1 |
+1.6 |
+4 |
| 5 to 6 |
+3-1 |
+1.6 |
+7 |
| 8 |
+2 |
+1.6 |
+7 |
| 10 |
+4-3 |
+3.2 |
+7 |
| |
|
|
|
| 12 to 18 |
+4-3 |
+3.2 |
+7 |
| |
|
|
|
| 20 to 24 |
+6-5 |
+4.8 |
+7 |
| 26 to 30 |
+7-5 |
+4.8 |
+10 |
| 32 to 48 |
+7-5 |
+4.8 |
+10 |
