Threaded Fitting Nipples Manufacturer, Supplier and Exporter in Mumbai, India

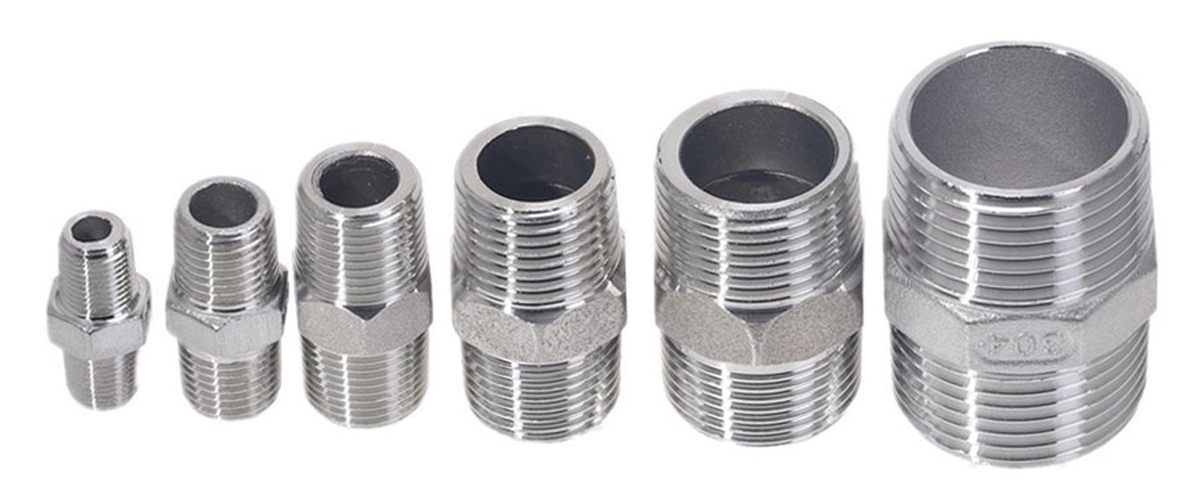

Forged Threaded Pipe Fitting – Hex Nipples can be manufactured in accordance to ASME B16.11 and available in all major stainless steel grades (ASTM A182 F316L, F304L), ASTM A105, alloy steel grades etc. Tube Innovatives (India) is among one of the leading manufacturers and exporters of high-quality forged pipe fittings by using the latest technology and in-house QC system. We offer our materials with complete certification and as per national and international standards. We also provide threaded pipe connections and nipples as per your requirement with appropriate quantity order. Refer our Hex Nipple specification and size chart as mentioned below.
| Nipple Specifications |
| Family |
Threaded Pipe Fitting |
Shape |
Nipple |
| Material |
Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, Nickel Alloy |
Make |
TII |
| Size |
1/8″-4″ |
Thickness |
3000 Class, 6000 Class |
| Type |
Forged |
Variation |
|
| Finish |
Shot Blast, Sand Blast, Electro polish |
End |
Screwed |
| Marking |
TII-Specs-Description-Heat No. |
Packing |
Protected by Cap |
| 90° Elbow Size Chart |
| Standard Pattern |
Economic Pattern |
|
|
|
|
|
|
|
|
| SIZE |
A |
B |
L |
W |
| mm |
in |
mm |
in |
mm |
in |
mm |
in |
|
|
| 1/4″ |
1/8″ |
13 |
0.51 |
6 |
0.24 |
31 |
1.22 |
15.1 |
0.59 |
| 3/8″ |
1/8″ |
14 |
0.55 |
7 |
0.28 |
34 |
1.34 |
18.6 |
0.73 |
| 1/4″ |
14 |
0.55 |
7 |
0.28 |
34 |
1.34 |
18.6 |
0.73 |
| 1/2″ |
1/8″ |
16.5 |
0.65 |
8 |
0.31 |
36.5 |
1.44 |
23 |
0.91 |
| 1/4″ |
16.5 |
0.65 |
8 |
0.31 |
36.5 |
1.44 |
23 |
0.91 |
| 3/8″ |
16.5 |
0.65 |
8 |
0.31 |
36.5 |
1.44 |
23 |
0.91 |
| 3/4″ |
1/8″ |
16 |
0.63 |
8 |
0.31 |
40 |
1.57 |
29 |
1.14 |
| 1/4″ |
16 |
0.63 |
8 |
0.31 |
40 |
1.57 |
29 |
1.14 |
| 3/8″ |
17 |
0.67 |
8 |
0.31 |
41 |
1.61 |
28.5 |
1.12 |
| 1/2″ |
17 |
0.67 |
8 |
0.31 |
41.5 |
1.63 |
28.5 |
1.12 |
| 1″ |
1/4″ |
20 |
0.79 |
9 |
0.35 |
41 |
1.61 |
35.4 |
1.39 |
| 3/8″ |
20 |
0.79 |
9 |
0.35 |
42.5 |
1.67 |
35.4 |
1.39 |
| 1/2″ |
20 |
0.79 |
9 |
0.35 |
45 |
1.77 |
35.4 |
1.39 |
| 3/4″ |
20 |
0.79 |
9 |
0.35 |
45 |
1.77 |
35.4 |
1.39 |
| 1-1/4″ |
1/4″ |
21 |
0.83 |
10 |
0.39 |
42 |
1.65 |
44.5 |
1.75 |
| 3/8″ |
21 |
0.83 |
10 |
0.39 |
47 |
1.85 |
44.5 |
1.75 |
| 1/2″ |
21 |
0.83 |
10 |
0.39 |
49 |
1.93 |
44.5 |
1.75 |
| 3/4″ |
21 |
0.83 |
10 |
0.39 |
49 |
1.93 |
44.5 |
1.75 |
| 1″ |
22 |
0.87 |
10 |
0.39 |
52 |
2.05 |
44.5 |
1.75 |
| 1-1/2″ |
1/4″ |
20 |
0.79 |
10.5 |
0.41 |
42.5 |
1.65 |
51 |
2.01 |
| 3/8″ |
21 |
0.83 |
10 |
0.39 |
47 |
1.85 |
50 |
1.97 |
| 1/2″ |
21 |
0.83 |
10 |
0.39 |
49 |
1.93 |
50 |
1.97 |
| 3/4″ |
21 |
0.83 |
10 |
0.39 |
49 |
1.93 |
50 |
1.97 |
| 1″ |
21.5 |
0.85 |
11 |
0.39 |
52.5 |
2.07 |
50 |
1.97 |
| 1-1/4″ |
22 |
0.87 |
11 |
0.43 |
55 |
2.17 |
51 |
2.01 |
| 2″ |
3/8″ |
23 |
0.91 |
11 |
0.43 |
52 |
2.05 |
61.5 |
2.42 |
| 1/2″ |
23 |
0.91 |
11 |
0.43 |
52 |
2.05 |
61.5 |
2.42 |
| 3/4″ |
23 |
0.91 |
11 |
0.43 |
41.5 |
1.63 |
61.5 |
2.42 |
| 1″ |
23 |
0.91 |
11 |
0.43 |
53.5 |
2.11 |
61.5 |
2.42 |
| 1-1/4″ |
23 |
0.91 |
11 |
0.43 |
56 |
2.2 |
61.5 |
2.42 |
| 1-1/2″ |
23 |
0.91 |
11 |
0.43 |
55.5 |
2.19 |
61.5 |
2.42 |
| 2-1/2″ |
3/4″ |
27.5 |
1.08 |
13 |
0.51 |
64 |
2.52 |
78 |
3.07 |
| 1″ |
27.5 |
1.08 |
13 |
0.51 |
63.5 |
2.5 |
78 |
3.07 |
| 1-1/4″ |
27.5 |
1.08 |
13 |
0.51 |
63.5 |
2.5 |
78 |
3.07 |
| 1-1/2″ |
27.5 |
1.08 |
13 |
0.51 |
63.5 |
2.5 |
78 |
3.07 |
| 2″ |
27.5 |
1.08 |
13 |
0.51 |
65.5 |
2.58 |
78 |
3.07 |
| 3″ |
1-1/2″ |
28 |
1.1 |
15 |
0.59 |
68 |
2.68 |
92 |
3.62 |
| 2″ |
28 |
1.1 |
15 |
0.59 |
68.5 |
2.7 |
93 |
3.66 |
| 2-1/2″ |
28.5 |
1.12 |
15 |
0.59 |
71 |
2.8 |
92 |
3.62 |
| 4″ |
2″ |
30 |
1.18 |
15 |
0.59 |
75 |
2.95 |
117 |
4.61 |
| 2-1/2″ |
30 |
1.18 |
15 |
0.59 |
75 |
2.95 |
117 |
4.61 |
| 3″ |
30 |
1.18 |
15 |
0.59 |
75 |
2.95 |
117 |
4.61 |
