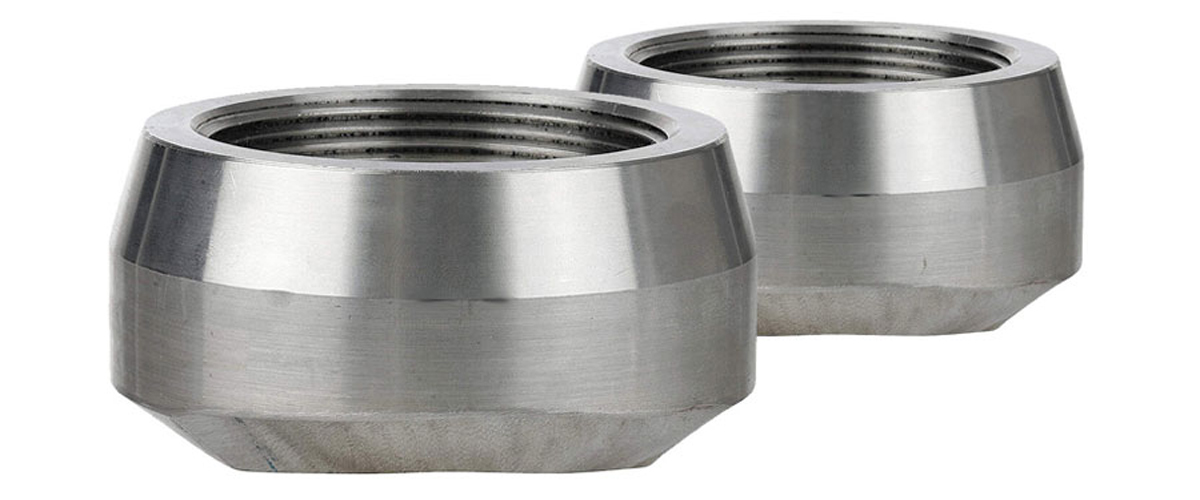

Threaded Connection Fittings – Threadolet Manufacturer, Supplier and Exporter in Mumbai, India
| Theadolet Specifications | |||
|---|---|---|---|
| Family | Threaded Weld Fitting | Shape | Threadolet |
| Material | Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, Nickel Alloy | Make | TII |
| Size | 1/8″-4″ | Thickness | 3000 Class, 6000 Class |
| Type | Forged | Variation | |
| Finish | Shot Blast, Sand Blast, Electro polish | End | Screwed |
| Marking | TII-Specs-Description-Heat No. | Packing | Protected by Cap |

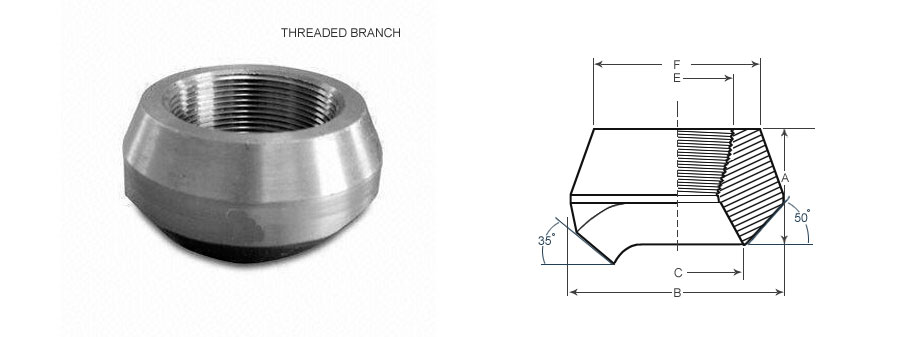

| Size Chart | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rating | Nominal Pipe Size | ||||||||||||
| inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 |
1 1/2 |
2 | 2 1/2 |
3 | 4 | |
| 3000 LB | A | 17.5 | 17.5 | 20.6 | 25.4 | 27.0 | 33.3 | 33.3 | 34.9 | 38.1 | 46.0 | 50.8 | 57.1 |
| B | 25.4 | 25.4 | 31.8 | 34.9 | 44.5 | 54.0 | 65.1 | 73.0 | 88.9 | 103.2 | 122.2 | 152.4 | |
| C | 15.9 | 15.9 | 19.0 | 23.8 | 30.2 | 36.5 | 44.5 | 50.8 | 65.1 | 76.2 | 93.7 | 120.6 | |
| D | 6.8 | 9.2 | 12.5 | 15.8 | 20.9 | 26.6 | 35.0 | 40.9 | 52.5 | 62.7 | 77.9 | 102.3 | |
| E | 10.7 | 14.1 | 17.5. | 21.7 | 27.0 | 33.8 | 24.6 | 48.6 | 61.1 | 73.8 | 89.9 | 115.4 | |
| F | 22.2 | 22.2 | 25.4 | 31.7 | 36.5 | 46.0 | 55.6 | 61.9 | 74.6 | 87.3 | 1047.8 | 130.2 | |
| G | 9.5 | 9.5 | 9.5 | 11.1 | 12.7 | 13.5 | 51.1 | 51.1 | 17.5 | 23.8 | 28..6 | 29.4 | |
| I | 8.0 | 8.0 | 11.1 | 14.3 | 14.3 | 19.8 | 18.2 | 19.8 | 20.6 | 22.2 | 22.2 | 27.7 | |
| 6000 LB | A | 31.7 | 36.5 | 39.7 | 41.3 | 42.8 | 58.7 | ||||||
| B | 44.5 | 50.8 | 61.9 | 69.9 | 82.6 | 103.2 | |||||||
| C | 19.0 | 25.4 | 33.3 | 38.1 | 49.2 | 58.7 | |||||||
| D | 14.3 | 19.0 | 25.4 | 33.3 | 38.1 | 42.9 | |||||||
| E | 21.7 | 27.0 | 33.8 | 42.6 | 48.6 | 61.1 | |||||||
| F | 36.7 | 45.2 | 57.1 | 65.1 | 76.2 | 92.1 | |||||||
| G | 9.5 | 14.3 | 15.9 | 20.6 | 20.6 | 22.2 | |||||||
| I | 22.2 | 22.2 | 23.8 | 20.6 | 22.2 | 36.5 | |||||||
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | |
