Socket Weld Fitting Cross Manufacturer, Supplier and Exporter in Mumbai, India
Socket Weld Cross fitting can be manufactured in all major stainless steel grades (ASTM A182 F316L, F304L), carbon steel, alloy steel grades etc. Tube Innovatives (India) is among one of the leading manufacturers and exporters of high-quality forged pipe fittings by using the latest technology and in-house QC system. We offer our materials with complete certification and as per national and international standards. We also provide socket-weld hydraulic fitting Cross as per your requirement with appropriate quantity order. Refer our Cross specification and size chart as mentioned below.
| Cross Specifications | |||
|---|---|---|---|
| Family | Socket Weld Pipe Fitting | Shape | Cross |
| Material | Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, Nickel Alloy | Make | TII |
| Size | 1/8″-4″ | Thickness | 3000 CLASS, 6000 CLASS |
| Type | Forged | Variation | |
| Finish | Shot Blast, Sand Blast, Electro polish | End | Socket Weld |
| Marking | TII-Specs-Description-Heat No. | Packing | Protected by Cap |

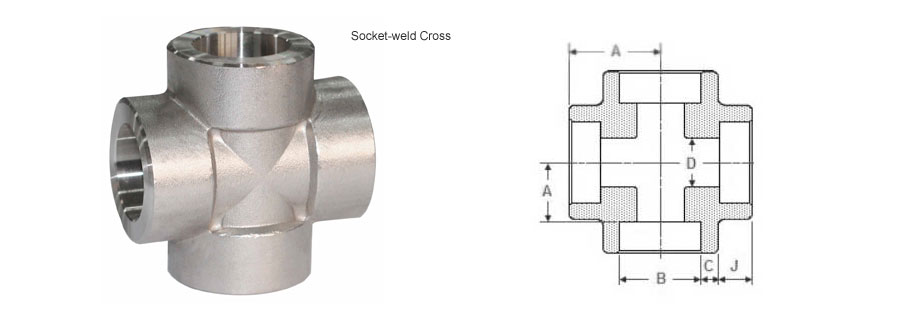

| Size Chart | |||||
|---|---|---|---|---|---|
| NPS | Socket Bore | Depth Socket | Bore dia | ||
| B | J | D | |||
| 1/2 | 21.95 21.70 |
10 | 16.6 15 |
||
| 3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
||
| 1 | 34.05 33.80 |
13 | 27.4 25.9 |
||
| 1.1/4 | 42.80 42.55 |
13 | 35.8 34.3 |
||
| 1.1/2 | 48.90 48.65 |
13 | 41.7 40.1 |
||
| 2 | 61.35 61.10 |
16 | 53.5 51.7 |
||
| 2.1/2 | 74.20 73.80 |
16 | 64.2 61.2 |
||
| 3 | 90.15 89.80 |
16 | 79.5 46.4 |
||
| 4 | 115.80 115.45 |
19 | 103.8 100.7 |
||
| 1/2 | 4.65 4.10 |
3.75 | 15.5 | ||
| 3/4 | 4.90 4.25 |
3.90 | 19.5 | ||
| 1 | 5.70 5.00 |
4.55 | 22 | ||
| 1.1/4 | 6.05 5.30 |
4.85 | 27 | ||
| 1.1/2 | 6.35 5.55 |
5.10 | 32 | ||
| 2 | 6.95 6.05 |
5.55 | 38 | ||
| 2.1/2 | 8.75 7.65 |
7.00 | 41.5 | ||
| 3 | 9.50 8.30 |
7.60 | 57.5 | ||
| 4 | 10.70 9.35 |
8.55 | 66.5 | ||
