Bench Polishers

Bench Polishers are suitable for carrying out buffing, polishing and dressing operations of parts of alluminium, plastics, stainless steel, Leather goods, jewellery, watch making industries, automobiles, gift articles, acrylic, electroplating industries etc.

Heavy duty buffing machines from 2 H.P to 7.5 H.P. are manufactured in four Ball Bearing type and are provided with Copper Rotor (except 2 H.P.) so as to withstand temporary heavy overload conditions.

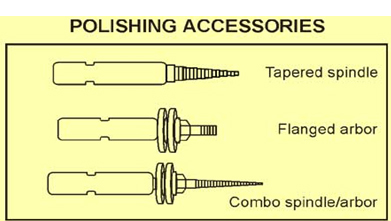

Use of best quality stamping and diecast rotors. Dynamically Balanced rotor minimise vibrations and ensure smooth running. Construction of the machines are made sturdy and robust to offer vibration free performance. All Bench Polishers equipped with reversely threaded tapered spindles to take buffing mops. Use of high quality grease for lubrication. RECOMMENDED USE OF GREASE LITHON3 OR EQUIVALENT. All machines are subject to rigid quality control tests

Special custom made polishing machines as per customers specific requirement are also manufactured. Machines of different voltage and different frequency can be supplied against specific orders. All machines carry warranty (except Ball Bearings) against any manufacturing defect as per the warranty terms prevailing of the company. No warranty for wear and tear items.

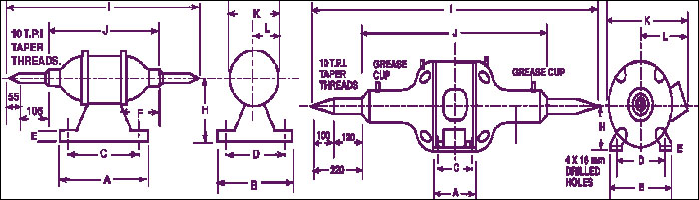

Model	H.P	K.W	Ph.	R.P.M	Spindle Size	A	B	C	D	E	F	H	I	J	K	L	Approx Weight in Kg.
VMT-1	0.25	0.18	1	2800	100	130	130	108	108	13	60	115	474	222	106	53	8
VMT-5	0.50	0.37	1	2800	165	233	233	204	204	24	96	170	675	350	162	81	23
VMT-7	0.75	0.55	1	2800	165	231	237	199	206	31	96	202	695	370	162	81	28
VMT-9	1.00	0.75	1	2800	165	231	237	199	206	31	96	202	695	370	162	81	29
VMT-4	0.50	0.37	3	2800	165	233	233	204	204	24	96	170	675	340	162	81	21
VMT-6	0.75	0.55	3	2800	165	231	237	199	206	31	96	202	695	370	162	81	25
VMT-8	1.00	0.75	3	2800	165	231	237	199	206	31	96	202	695	370	162	81	26
VMT-10	1.00	0.75	3	1400	165	231	237	199	206	31	96	202	695	370	162	81	27
VMT-12	2.00	1.50	3	2800	200	185	240	158	208	20	-	150	1110	630	275	160	57
VMT-14	3.00	2.25	3	2800	220	175	306	140	250	24	-	170	1250	810	335	190	105
VMT-16	5.00	3.75	3	2800	220	175	306	140	250	24	-	170	1250	810	335	190	108
VMT-56	7.5	5.5	3	2800	220	270	360	220	260	25	-	170	1370	930	345	195	155

General Tolerance ± 0.25 % Dimensions, details etc. are subject to change as the quality of machines is improved constantly.
