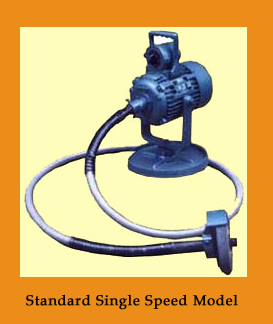

Flexible Shaft Grinders



"Flexible Shaft Grinding machine is widely used in Fabrication Workshops, Foundries and heavy industries. It is very suitable for heavy and or lengthy jobs where it is not possible to lift the job or get the same close to the grinding machine.. Machine is mounted on Castor Wheels and can be easily moved around close to the job."

•Use of best quality stamping and diecast rotors. Dynamically Balanced rotor minimise vibrations and   ensure smooth running

•Construction of the machines are made sturdy and robust to offer vibration free performance. Machine   provided with One No. Flexible Shaft, Wheel Guard and Coarse Grinding Wheel. Collet attachment   for mounted point grinding wheels can also be supplied at extra cost. The machine can also be used   for Buffing purpose by attaching an buffing attachment which can be supplied as an extra equipment.

•Use of high quality grease for lubrication. RECOMMENDED USE OF GREASE LITHON3 OR   EQUIVALENT. All machines are subject to rigid quality control tests. Machines of different voltage   and different frequency can be supplied against specific orders. All machines carry warranty (except   Ball Bearings and flexible shaft) against any manufacturing defect as per the warranty terms prevailing   of the company. No warranty for wear and tear items.

Model	H.P	K.W	Volts	Phase	R.P.M	Shaft Length	Wheel Size	Approx. Weight in Kgs
VMT-13	0.50	0.37	220	1	2800	2	100	31
VMT-18	0.50	0.37	415	3	2800	2	100	30
VMT-15	1	0.75	220	1	2800	2	150	36
VMT-20	1	0.75	415	3	2800	2	150	31
VMT-22	2	1.50	415	3	2800	3	150	39
VMT-25	3	2.25	415	3	2800	3	150	50
VMT-M24	2	1.5	415	3	1200/2250/4000/7000	-	-	60

General Tolerance ± 0.25 % Dimensions, details etc. are subject to change as the quality of machines is improved constantly.
