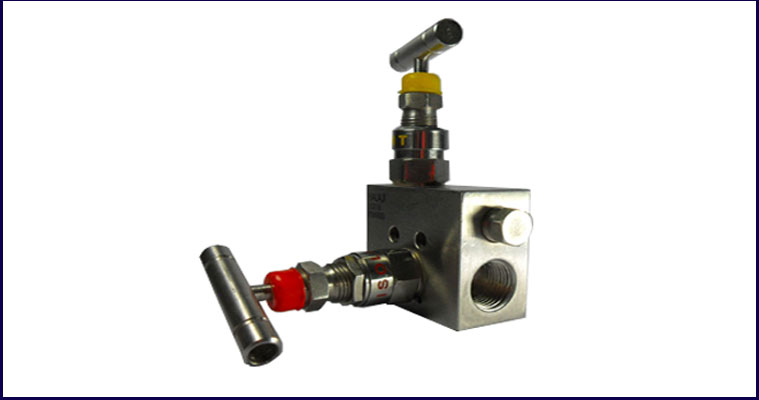

2 Way Flat Type Manufacturers and Suppliers
DESCRIPTION : Two Valve Manifold is designed in a single block with female screwed inlet and outlet port combining Isolation Valve and vent/calibration Valve. Generally used on static pressure transmitters, switches or gauges.
CONNECTION- Process : 1/2"NPT(F)
- Instrument : 1/2"NPT(F)
- Drain/vent : 1/4"NPT{F)
- @ 25°c' Room temperature
- Hydrostatic : Body : 620kg/cm2g
- Seat : 413kg/cm2
- Pneumatic : Seat : 40kg/cm2
- PTFE : Standard
- GRAPHOIL : Temperature above 180°c
