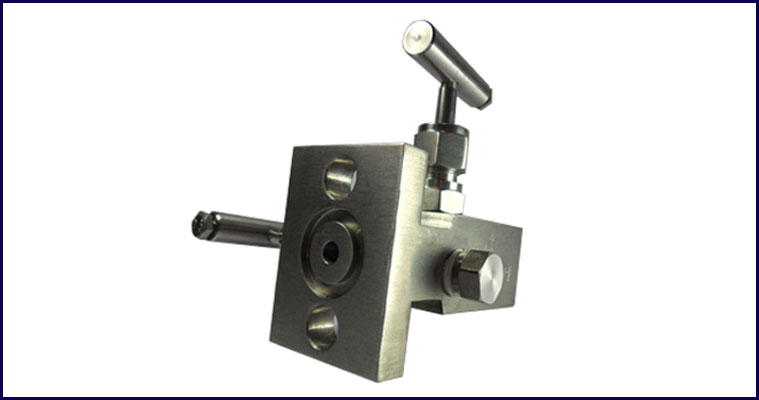

DESCRIPTION :Two valve manifold is designed in a single block with female screwed inlet and outlet port combining isolation valve and vent/calibration valve. Generally used on static pressure transmitters, Switches or gauges.

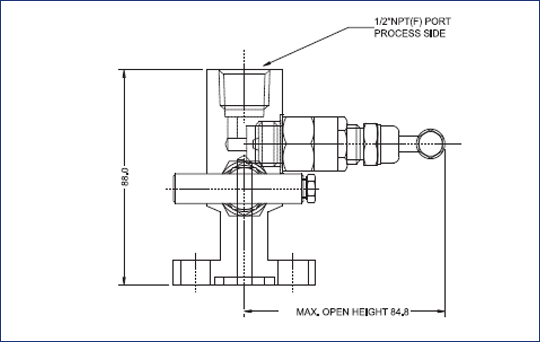

• Process : 1/2" NPT(F)

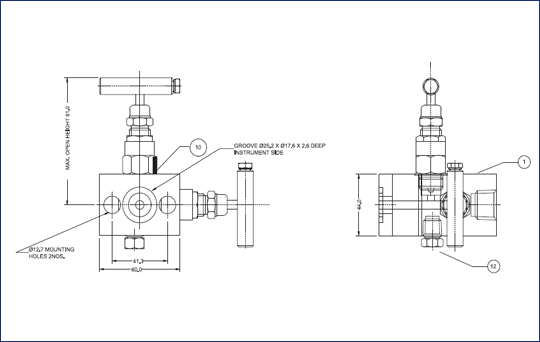

• Instrument : Flanged
• DrainNent : 1/4" NPT(F)

• @ 25°c Room temperature
• Hydrostatic : Body : 620kg/cm2
• Seat : 413kg/cm2
• Pneumatic : Seat : 40kg/cm2

• PTFE : Standard
• GRAPHOIL : Temperature above 180°c

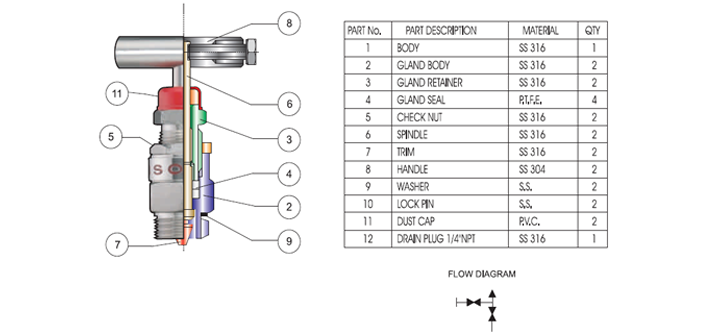

• MATERIAL :
• A105,A182F304 SS, A182F316 SS, monel, Hastalloy
