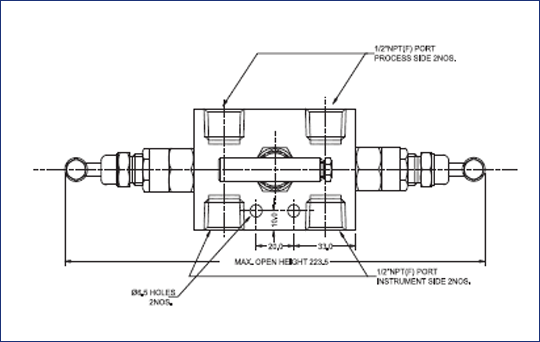

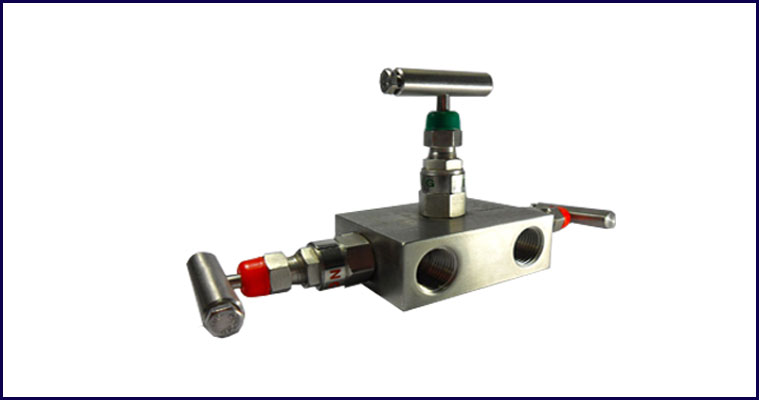

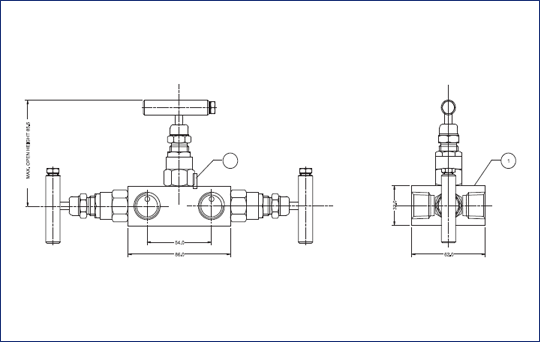

DESCRIPTION :Designed for application to facilitate remote Mounting of differential pressure Instruments. Dimensious show above are for the standard 54 mm or 21/8 inch instrument connection. Centre distance found in majority of Instruments. The manifold is also available for Instruments with other centre distance for Instrument Connections. But dimension shown will vary. Useful for Installation in remote fields eleminating conventional method of piping.

• Process : 1/2" NPT(F)
• Instrument : 1/2"NPT(F)
• Drain/vent : 1/4"NPT{F)

• @ 25°c' Room temperaturee
• Hydrostatic : Body : 620kg/cm2g
• Seat : 413kg/cm2
• Pneumatic : Seat : 40kg/cm2

• PTFE : Standard
• GRAPHOIL : Temperature above 180°c

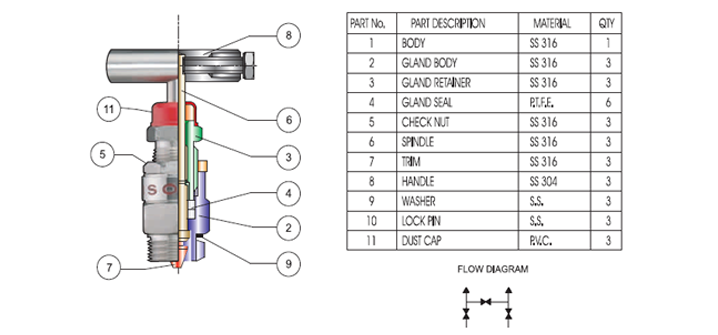

• MATERIAL :
• A105,A182F304 SS, A182F316 SS, monel, Hastalloy

• FINISH :
• CS :Zinc plated and Dichromated
• SS :Natural
