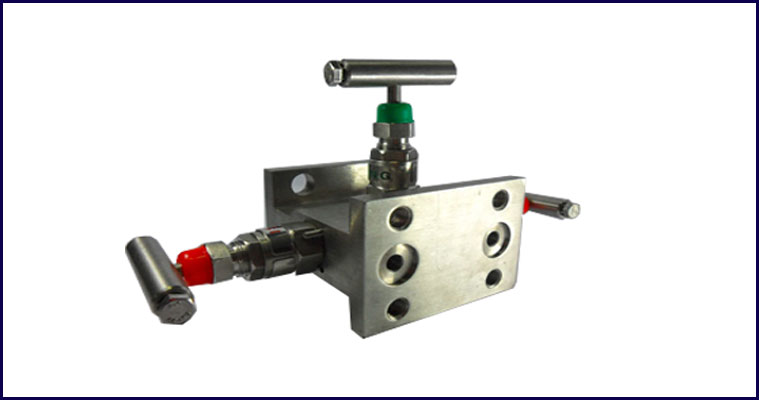

DESCRIPTION : Designed for direct or remote Mounting of differential pressure transmitter. For remote Mounting two oval / kidney flanges for Connecting procees pipe to manifold block. These manifold block incorporate three valves. two main valve for process isolated and one Valve for equalizing.

• Process : Flanged
• Instrument : Flanged
• Drain/vent : 1/4"NPT(F)

• @ 25°c' Room temperature
• Hydrostatic : Body : 620kg/cm2g
• Seat : 413kg/cm2
• Pneumatic : Seat : 40kg/cm2

• PTFE : Standard
• GRAPHOIL : Temperature above 180°c

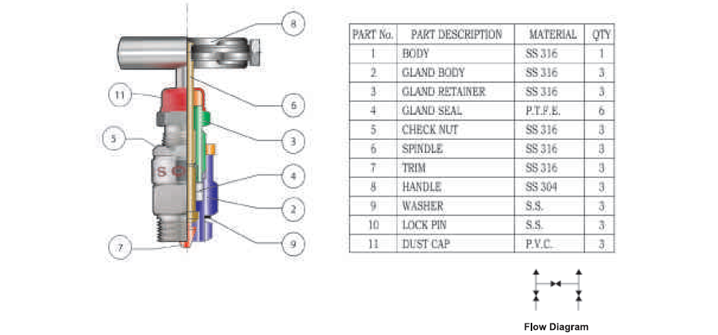

• MATERIAL :
• A105, A182 Gr F304 SS, A182 Gr F SS316 Monel, Hastalloy.

• FINISH :
• CS :Zinc plated and Dichromated
• SS :Natural
