3 Valve Manifold Direct Mounting 'T' Type

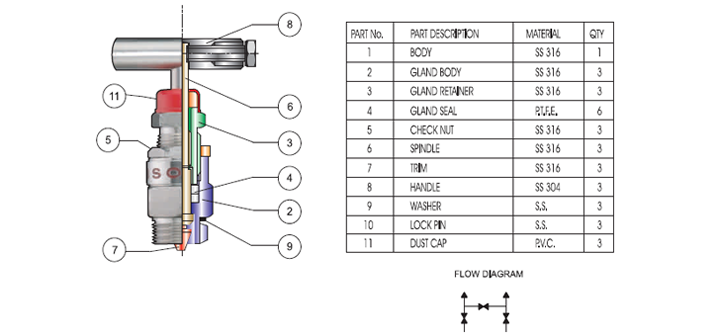

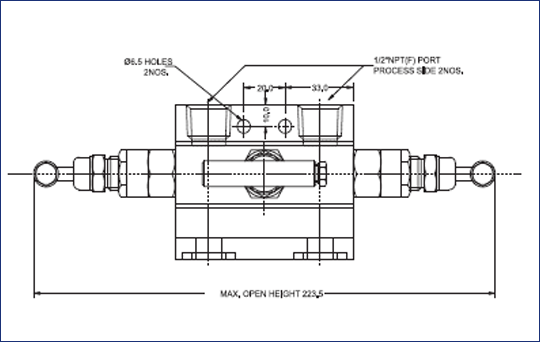

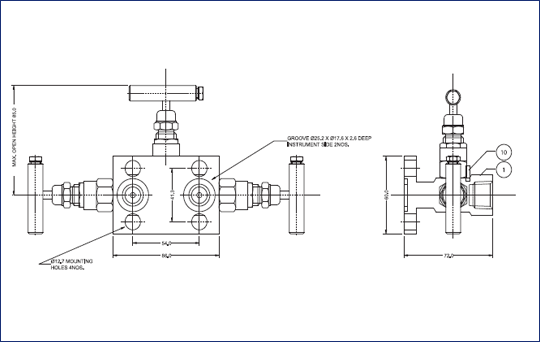

DESCRIPTION :Designed for direct mounting on to standard differential pressure transmitters.This manifold block incorporates three valves, two main process isolation valves and one equlizing valve. Dimensions shown above are for 54mm or 2 1/8 inch Instrument connection centre distance found is majority of Instruments. The manifold is also available for Instruments with other center distances for Instrument connection. But dimensions show will vary.
CONNECTION- Process : 1/2"NPT(F)
- Instrument : 1/2"NPT(F)
- Drain/vent : 1/4"NPT{F)
- @ 25°c' Room temperature
- Hydrostatic : Body : 620kg/cm2g
- Seat : 413kg/cm2
- Pneumatic : Seat : 40kg/cm2
- PTFE : Standard
- GRAPHOIL : Temperature above 180°c
- MATERIAL :
- A105,A182F304 SS, A182F316 SS, monel, Hastalloy
- FINISH :
- CS :Zinc plated and Dichromated
- SS :Natural
