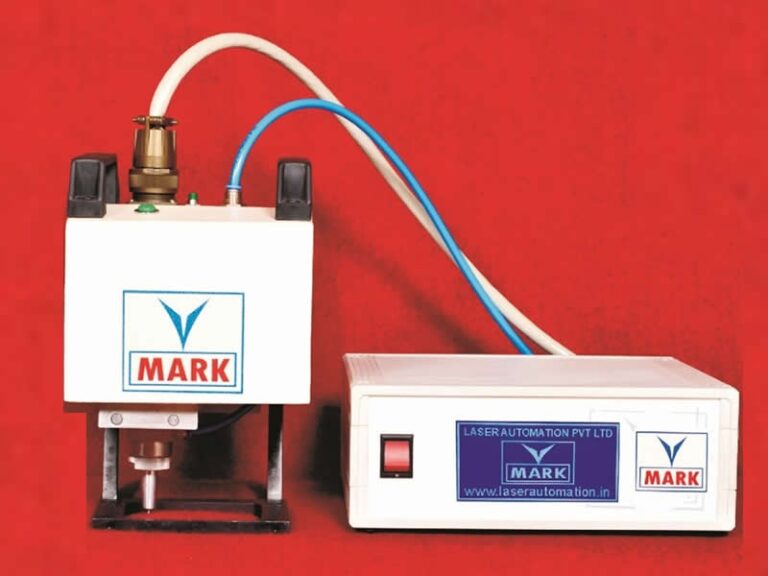

These machines are available in standard, portable & integrated models. Machines can do markings like 2D code marking, rotary / circular marking, name plate marking, deep marking of 0.5 mm & it can also make markings on casting as well as forging surface.
Features
- India's first 100% Indigenous machine
- High Speed, High accuracy, Heavy duty
- Marking Speed – 1-2 digits/sec
- User friendly fully featured software
- Easy integration with PLC, SAP, ERP
- Z axis adjustment 200 mm / 300 mm
- Marking Area – 100*100, 80*40, 100*150 mm
- Highly customizable as per requirement
| Specifications | Controller Based | PC Based |
| Marking Area (MM) | 100*100 / 150*100 / 80*40 / 20*20 | 100*100 / 150*100 / 80*40 / 20*20 |
| Standard Column Frame (MM) | 300 | 300 |
| Character Height (MM) | 01.00 mm to 99.90 mm with 0.1 mm steps | 01.00 mm to 99.90 mm with 0.1 mm steps |
| Imprinting Power | 100 N MAX | 100 N MAX |
| Marking Data | Alphanumeric + symbols + Logo + 2D Codes | Alphanumeric + symbols + Logo + 2D Codes |
| Barcodes | 2D Data matrix code, Version ECC200 | 2D Data matrix code, Version ECC200 |
| Variable Data Marking | Date Codes, Shift Codes, Serial Number | Date Codes, Shift Codes, Serial Number |
| Marking Styles | Linear, Angular, Circular, Inverted, Mirror marking | Linear, Angular, Circular, Inverted, Mirror marking |
| Font Type | 4 Standard Fonts | 4 Standard Fonts |
| Deep Marking | up to 0.5 mm | up to 0.5 mm |
| Memory | 100 designs / 200 designs | Infinite* (As available in PC) |
| Interface (Data input) | RS232 | MS Excel |
| Interface (Data I / O) | 2Inputs & 2 Outputs for PLC Interfacing | N/A |
| Interface (Design Selection) | BCD Inputs – 16 designs / RS232 – 100 designs | N/A |
| Optional | Output of Barcode Scanner can be marked. | N/A |
| Optional | Rotary attachment for peripheral marking | N/A |
| Optional | Traceability Software | Traceability Software |
| Optional | Foot Switch | Foot Switch |
| Optional | Name plate holding manual | Name plate holding manual |
| Optional | Turnkey marking solutions / SPM / Automation | Turnkey marking solutions / SPM / Automation |
| Power Consumption (W) | 120 | 120 |
| Requirements for Machine Installation | Electrical: 230 V 50 Hz Supply (+06.0%) with live earthing | Electrical: 230 V 50 Hz Supply (+06.0%) with live earthing |
| – | Compressed dry air supply, up to 6 bar pressure, 10CFM | Compressed dry air supply, up to 6 bar pressure, 10CFM |
| – | UPS 1.2 kVA with surge protection | UPS 1.2 kVA with surge protection |
| – | Pneumatic tubing M 8 size | Pneumatic tubing M 8 size |
