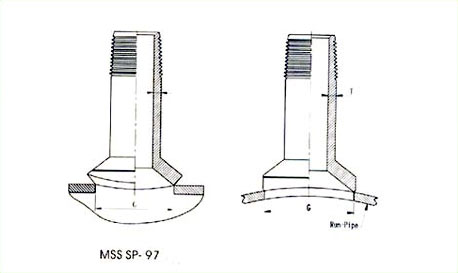

Forged Steel Outlet Fittings- Nippolets (3000PSI)

Clients can avail from us the strong and dimensionally accurate range of Forged Steel Outlet Fittings- Nippolets (3000PSI). These are manufactured using graded quality of steel forgings and are appreciated for high performance and durability. Further, these are available in various shapes and sizes that make them apt for diverse industrial applications. These fittings can withstand high pressure and can be used as permanent welded connection or detachable thread connection.

Technical Specifications

Run-Pipe Size	Outlet Size	Wall – T	G	Unit Weight (kg)
36-3/4	½	7.3	23.9	0.36
36-1	¾	7.9	30.2	0.56
36-1 ¼	1	8.9	36.6	0.84
36-1 ½	1 ¼	9.7	44.5	1.22
36-2	1 ½	10.2	50.8	2.00
36-2 ½	2	11.2	65.0	3.12

Swaged Nippolets (3000PSI)

Equipped with sophisticated infrastructural facilities, we are able to fabricate and deliver high quality range of Swaged Nippolets (3000PSI). For this, we have employed latest machines and technology that make these ranges to be widely used in a multitude of industries. These are hence long lasting in quality, and are available at competitive prices. Further, being a high pressure fitting these nippolets can withstand high pressure and can be used as permanent or detachable thread connection.

Technical Specifications

Large end Size	Small and Size	Length -L
½	3/8 – 1/8	70
¾	12/ -1/8	76
1	¾-1/8	89
1 ¼	1-1/8	102
1 ½	1 ¼ -1/8	114
2	1 ½ -1/8	165
2 ½	2-1/8	178
3	2 ½ – 1/8	203
3 ½	3-18	203
4	3 ½ – 1/8	229
