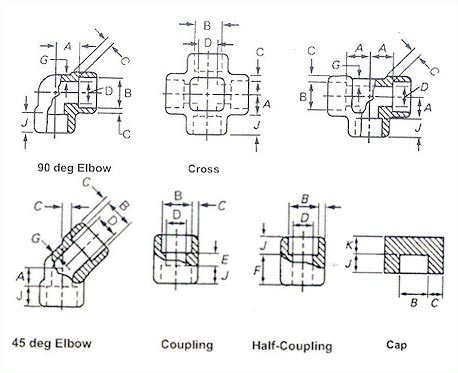

Socket Welding Fittings

We are one of the eminent manufacturers, whole sale suppliers and exporters of socket weld and screwed fittings like socket welding fittings, forged threaded fittings and steel threaded fittings. Made from premium quality material these fittings are available in innumerable shapes such as elbow, cross, coupling, half coupling, cap, tee etc. Providing smooth flow of liquid, our socket weld and screwed fittings are known all over the world for their durability, high functionality & reasonable price.

Download or View Technical Specifications

Forged Threaded Fittings

With our unparalleled dedication to quality excellence, we have steadily maintained our position in the fore front of oil industry; we bring Forged Threaded Fittings (ASME B 16.11-2001) that comes in different sizes and grades. Our range include plug, bushing, boss, insert, nipple, swage nipples etc., and their size varies between 1/8" ~ 4" (3000#, 6000#). Also these are also made available by us in different finish specifications so as to match up with the demands of different customers form different industries.

Technical Specifications

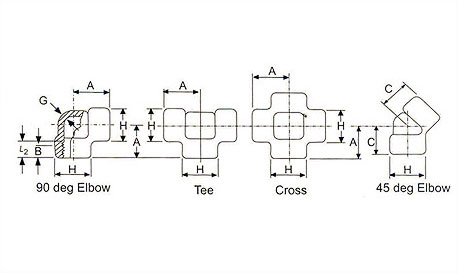

DN Nominal Pipe Size Center-to-End Elbows, Tees, Crosses, A Center-to-End 45 deg Elbow, C Outside Diameter of Band, H Min. Wall Thickness, G Min Length of Thread [Note (1)]
2000 3000 6000 2000 3000 6000 2000 3000 6000 2000 3000 6000 B L2
6 1/8 21 21 25 17 17 19 22 22 25 3.18 3.18 6.35 6.4 6.7
8 1/4 21 25 28 17 19 22 22 25 33 3.18 3.30 6.60 8.1 10.2
10 3/8 25 28 33 19 22 25 25 33 38 3.18 3.51 6.98 9.1 10.4
15 1/2 28 33 38 22 25 28 33 38 46 3.18 4.09 8.15 10.9 13.6
20 3/4 33 38 44 25 28 33 38 46 56 3.18 4.32 8.53 12.7 13.9
25 1 38 44 51 28 33 35 46 56 62 3.68 4.98 9.93 14.7 17.3
32 1 1/4 44 51 60 33 35 43 56 62 75 3.89 5.28 10.59 17.0 18.0
40 1 1/2 51 60 64 35 43 44 62 75 84 4.01 5.56 11.07 17.8 18.4
50 2 60 64 83 43 44 52 75 84 102 4.27 7.14 12.09 19.0 19.2
65 2 1/2 76 83 95 52 52 64 92 102 121 5.61 7.65 15.29 23.6 28.9
80 3 86 95 106 64 64 79 109 121 146 5.99 8.84 16.64 25.9 30.5
100 4 106 114 114 79 79 79 146 152 152 6.55 11.18 18.67 27.7 33.0

Industrial Forged Threaded Fittings

Our range include plug, bushing, boss, insert, nipple, swage nipples etc., and their size varies between 1/8" ~ 4" (3000#, 6000#). Also these are also made available by us in different finish specifications so as to match up with the demands of different customers form different industries.

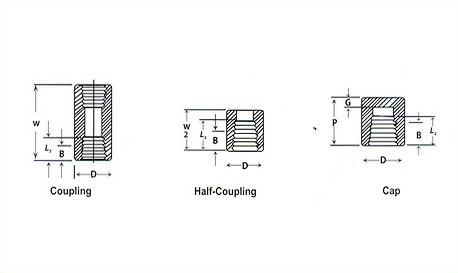

DN Nominal Pipe Size End-to-End Couplings, W End-to-End Cops P Outside Diameter, D Min. End Wall Thickness, G Min. Length of Thread [Note (1)]
3000 & 6000 3000 6000 3000 6000 3000 6000 B L2
6 1/8 32 19 ... 16 22 4.8 ... 6.4 6.7
8 1/4 35 25 27 19 25 4.8 6.4 8.1 10.2
10 3/8 34 25 27 22 32 4.8 6.4 9.1 10.4
15 1/2 48 32 33 28 38 6.4 7.9 10.9 13.6
20 3/4 51 37 38 35 44 6.4 7.9 12.7 13.9
25 1 60 41 43 44 57 9.7 11.2 14.7 17.3
32 1 1/4 67 44 46 57 64 9.7 11.2 17.0 18.0
40 1 1/2 79 44 48 64 76 11.2 12.7 17.8 18.4
50 2 80 48 51 76 92 12.7 15.7 19.0 19.2
65 2 1/2 92 60 64 92 108 15.7 19.0 23.6 28.9
80 3 108 65 68 108 127 19.0 22.4 25.9 30.5
100 4 121 68 75 140 159 22.4 28.4 27.7 33.0
