Reducers

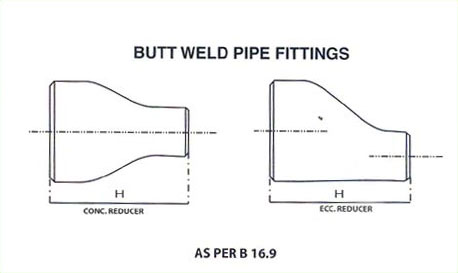

To cater to the needs of different industries across the globe, we unfurl an extensive collection of butt weld pipe fittings. Made from high quality alloy steel, carbon steel, stainless steel and nickel alloys, these butt weld pipe fittings are largely used to prevent fluid leakage and enhance the functionality in an effective manner. We manufacture butt weld pipe fittings in diverse shapes like steel concentric reducer, steel eccentric reducer, stub end and caps at reasonable rates.

Technical Specifications

Nominal Pipe Size (NPS) Outside
Diameter
at Bevel (O/D)		 End
to
End		 Nominal
Pipe
Size (NPS)		 Outside Diameter at Bevel(O/D) End-to-End
Run Outlet H Run Outlet H
¾'' x ½''
¾'' x 3/8'' 		26.7
26.7		 21.3
17.3		 38
38		 12'' x 10'' 12'' x 8''12'' x 6'' 12'' x 5'' 323.8
323.8
323.8
323.8		 273.0
219.1
168.3
141.3		 203
203
203
203
1'' x ¾''
1'' x ½'' 		33.4
33.4		 26.7
21.3		 51
51
1.1/4'' x 1''
1.1/4'' x ¾''
1.1/4'' x ½'' 		42.2
42.2
42.2		 33.4
26.7
21.3		 51
51
51		 14'' x 12'' 14'' x 10'' 14'' x 8''14'' x 6'' 355.6
355.6
355.6
355.6		 323.8
273.0
219.1
168.3		 330
330
330
330
1.1/2'' x 1.1/4''
1.1/2'' x 1''
1.1/2'' x ¾''
1.1/2'' x ½'' 		48.3
48.3
48.3
46.3		 42.2
33.4
26.7
21.3		 64
64
64
64		 16'' x 14'' 16'' x 12'' 16'' x10'' 16'' x 8'' 406.4
406.4
406.4
406.4		 355.6
323.8
273.0
219.1		 356
356
356
356
2'' x 1.1/2''
2'' x 1.1/4''
2'' x 1''
2'' x ¾''		 60.3
60.3
60.3
60.3		 48.3
42.2
33.4
26.7		 76
76
76
76		 18'' x 16'' 18'' x 14'' 18'' x12'' 18'' x 10'' 457.0
457.0
457.0
457.0		 406.4
356.6
323.8
273.0		 381
381
381
381
2.1/2'' x 2''
2.1/2'' x 1.1/2''
2.1/2'' x 1.1/4''
2.1/2 x 1'' 		73.0
73.0
73.0
73.0		 60.3
48.3
42.2
33.4		 89
89
89
89		 20'' x 18'' 20'' x 16'' 20'' x14'' 20'' x 12'' 508.0
508.0
508.0
508.0		 457.0
406.4
355.6
323.8		 508
508
508
508
3'' x 2.1/2''
3'' x 2''
3'' x 1.1/2''
3'' x 1.1/4''		 88.9
88.9
88.9
88.9		 73.0
60.3
48.3
42.2		 89
89
89
89		 22'' x 20'' 22'' x 18'' 22'' x16'' 22'' x 14'' 559.0
559.0
559.0
559.0 		508.0
457.0
406.4
355.6		 508
508
508
508
3.1/2'' x 3''
3.1/2'' x 2.1/2''
3.1/2'' x 2''
3.1/2'' x 1.1/2''		 101.6
101.6
101.6
101.6		 88.9
73.0
60.3
48.3		 102
102
102
102		 24'' x 22'' 24'' x 20'' 24'' x18'' 24'' x 16'' 610.0
610.0
610.0
610.0 		559.0
508.0
457.0
406.4		 508
508
508
508
4'' x 3.1/2''
4'' x 3''
4'' x 2.1/2''
4'' x 2''
4'' x 1.1/2'' 		114.3
114.3
114.3
114.3
114.3		 101.6
88.9
73.0
60.3
48.3		 102
102
102
102
102		 26'' x 24'' 26'' x 22'' 26'' x20'' 26'' x 18'' 660.0
660.0
660.0
660.0		 610.0
559.0
508.0
457.0		 610
610
610
610
5'' x 4''
5'' x 3.1/2''
5'' x 3''
5'' x 2.1/2''
5'' x 2''		 141.3
141.3
141.3
141.3
141.3		 114.3
101.6
88.9
73.0
60.3		 127
127
127
127
127		 28'' x 26'' 28'' x 24'' 28'' x20'' 28'' x 18'' 711.0
711.0
711.0
711.0		 660.0
610.0
508.0
457.0		 610
610
610
610
6'' x 5''
6'' x 4''
6'' x 3.1/2''
6'' x 3''
6'' x 2.1/2''		 168.3
168.3
168.3
168.3
168.3		 141.3
114.3
101.6
88.9
73.0		 140
140
140
140
140		 30'' x 28'' 30'' x 26'' 30'' x24'' 30'' x 20'' 762.0
762.0
762.0
762.0		 711.0
660.0
610.0
508.0		 610
610
610
610
8'' x 6''
8'' x 5''
8'' x 4''
8'' x 3.1/2''		 219.1
219.1
219.1
219.1		 168.3
141.3
114.3
101.6		 152
152
152
152		 32'' x 30'' 32'' x 28'' 32'' x26'' 32'' x 24'' 813.0
813.0
813.0
813.0		 762.0
711.0
660.0
610.0		 610
610
610
610
10'' x 8''
10'' x 6''
10'' x 5''
10'' x 4''		 273.0
273.0
273.0
273.0		 219.1
168.3
141.3
114.3 		178
178
178
178		 34'' x 32'' 34'' x 30'' 34'' x26'' 34'' x 24'' 864.0
864.0
864.0
864.0		 813.0
762.0
660.0
610.0		 610
610
610
610
