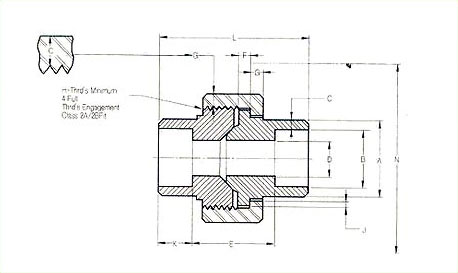

Union (3000PSI)

We present a rich collection of socket weld and screwed fittings such as steel pipe union, forged steel union etc. These socket weld and screwed fittings are manufactured from top grade forged steel in a myriad of sizes, depth and length. Use of sophisticated technology in every step of manufacturing process make these socket weld and screwed fittings most popular amongst our clients.

Technical Specifications

Nom. Pipe Size	Pipe End Min	Socket Bore Dia.	Socket Wall Min.	Water Way Bore	Laying Length	Male Flange Min.	Nut Min.	Threads Per 25.4 Max	Bearing Min.	Depth of Socket Min.	Length Assem. Nominal	Clear Assem. Nut
	A	B	C	D	E	F	G	H	J	K	L	N
1/8	21.8	10.92 10.67	3.17	6.83 6.43	22.4 19.0	3.17	3.17	16	1.24	9.6	41.1	49.0
¼	21.8	14.22 13.97	3.30	9.85 9.45	22.4 19.0	3.17	3.17	19	1.24	9.6	41.4	49.0
3/8	25.9	17.78 17.53	3.48	13.92 13.51	26.9 20.6	3.43	3.43	14	1.37	9.6	46.0	55.0
½	31.2	21.84 21.59	4.06	17.47 17.07	26.9 20.6	3.68	3.68	14	1.50	9.6	49.0	57.0
¾	37.1	27.18 26.92	4.27	21.79 21.39	31.8 25.4	4.06	4.06	11	1.68	12.7	56.9	67.0
1	45.5	34.04 33.78	4.95	28.14 27.74	34.3 26.2	4.57	4.44	11	1.85	12.7	62.0	79.0
11/4	54.9	42.67 42.42	5.28	35.76 35.36	40.6 32.5	5.33	5.21	11	2.13	12.7	71.1	94.0
11/2	61.5	48.77 48.51	5.54	41.61 41.20	42.2 34.0	5.84	5.59	10	2.31	12.7	75.5	111.0
2	75.2	61.47 61.21	6.05	52.53 52.12	45.3 37.3	6.60	6.35	10	2.69	15.8	86.1	132.0
21/2	91.7	74.17 73.66	7.65	64.72 64.31	61.7 52.1	7.49	7.11	8	3.07	15.8	102.4	148.0
3	109.2	90.17 89.66	8.31	77.67 77.27	63.8 53.6	8.25	8.00	8	3.53	15.8	109.0	175.0

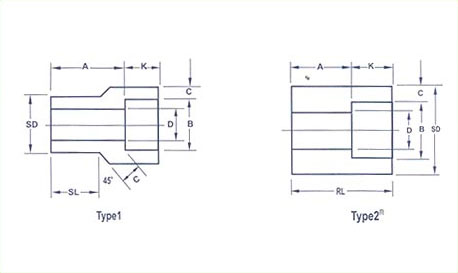

Reducer Insert (3000PSI, 6000PSI)

With our manufacturing plant is equipped with sophisticated infrastructural facilities, we offer our clients with Reducer Insert (3000PSI, 6000PSI) that helps in enabling full range adjustment in closed looped systems. These high quality inserts are used for avoiding delays and extra cost that arises while producing socket weld fittings with reduced outlets. Further, in order to meet with the exact requirements of our clients we are providing these insets in different material and configurations.

Technical Specifications

Nom Pipe Size	Type		Socket		Shank Dia SD	Laying Length A		Bore D		Wall Min C		Length Min
												SL		RL
	3M	6M	Dia B	Depth Min K		3M	6M	3M	6M	3M	6M	3M	6M	3M	3M
3/8 x ¼	1	1	14.22	9.52	17.14	19.0	20.6	9.14	6.35	3.78	4.60	14.22	15.75
½ x 3/8	1	1	17.65	9.52	21.34	20.6	22.2	12.45	9.14	4.01	5.03	15.75	17.27
X ¼	2	1	14.22	9.52	21.34	15.8	20.6	9.14	6.35	3.78	4.60	17.27	17.27
¾ x ½	1	1	21.84	9.52	26.67	22.2	25.4	15.75	11.68	4.67	5.97	17.53	19.05
X 3/8	2	1	17.65	9.52	26.67	15.8	22.2	12.45	9.14	4.01	5.03		19.05	26.92
X ¼	2	2	14.22	9.52	26.67	17.5	22.2	9.14	6.35	3.78	4.60			26.92	29.97
1 x ¾	1	1	27.18	12.70	33.35	23.8	28.5	20.83	15.49	4.90	6.96	19.05	20.57
X ½	2	2	21.84	9.52	33.35	15.8	20.6	15.75	11.68	4.67	5.97		20.57	28.45
X 3/8	2	2	17.65	9.52	33.35	17.5	22.2	12.45	9.14	4.01	5.03			28.45	33.27
X ¼	2	2	14.22	9.52	33.35	19.0	23.8	9.14	6.35	3.78	4.60			28.45	33.27
11/4 x 1	1	1	33.86	12.70	42.16	25.4	30.2	26.67	20.57	5.69	7.92	20.57	22.35
X ¾	2	2	27.18	12.70	42.16	17.5	20.6	20.88	15.49	4.90	6.96			31.75	34.80
X ½	2	2	21.84	9.52	42.16	19.0	22.2	15.75	11.68	4.67	5.97			31.75	34.80
X 3/8	2	2	17.65	9.52	42.16	20.6	23.8	12.45	9.14	4.01	5.03			31.75	34.80
X ¼	2	2	14.22	9.52	42.16	22.2	25.4	9.14	6.35	3.78	4.60			31.75	34.80
11/2 x 11/4	1	1	42.67	12.70	48.26	28.5	35.1	35.05	29.46	6.07	7.92	22.22	25.40
x1	2	2	33.86	12.70	48.26	17.5	28.5	26.67	20.57	5.69	7.92		25.40	33.27
X ¾	2	2	27.18	12.70	48.26	19.0	25.4	20.83	15.49	4.90	6.96			33.27	39.62
X ½	2	2	21.84	9.52	48.26	20.6	26.9	15.75	11.68	4.67	5.97			33.27	39.62
X 3/8	2	2	17.65	9.52	48.26	22.2	28.5	12.45	9.14	4.01	5.03			33.27	39.62
2 x 11/2	1	1	48.77	12.70	60.32	31.7	46.0	40.89	34.04	6.35	8.91	25.40	39.62
X 11/4	2	2	42.67	12.70	60.32	20.6	23.8	34-92	29.46	6.07	7.92			38.10	45.67
X 1	2	2	33.91	12.70	60.32	22.2	25.4	26.67	20.83	5.69	7.92			38.10	45.97
X ¾	2	2	27.18	12.70	60.32	23.8	26.9	20.83	15.49	4.90	6.96			38.10	45.97
X ½	2	2	21.84	9.52	60.32	25.4	28.5	15.87	11.68	4.67	5.97			38.10	45.97
