Unequal Tee & Cross Unequal

We manufacture and supply a flawlessly engineered Unequal Tee & Cross Unequal that consists of a triplet, or a three ways and "T" pieces that can be used to either combine or split a fluid flow. These tees are capable of handling any high or low pressure flow of liquid through it. The tees are with the same inlet and outlet sizes, but clients can also avail from us 'reducing' tees as well that have one or two ends with different in dimension, this is called an unequal tee. Due to their dimensional difference, these tee fittings help with the capacity to control the volume when required. Similarly the unequal crosses offers nearly the same function as that of the tees, except for providing two 900 units of outlets opposite each other.

Technical Specifications

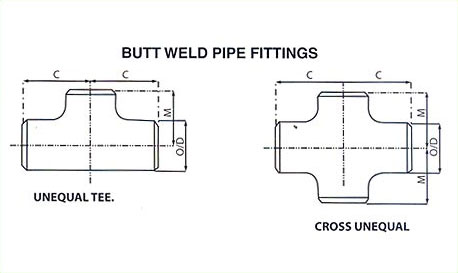

Nominal Pipe Size(NPS) Outside Diameterat Bevel (O/D)S Center-to-Center Nominal Pipe Size(NPS) Outside Diameterat Bevel (O/D) Center-to-Center
Run Outlet Run 'C' Outlet 'M' Run Outlet Run 'C' Outlet 'M'
½'' x 3/8 21.3 17.3 25 25 10'' x 8'' 273.0 219.1 216 203
½'' x ¼'' 21.3 13.7 25 25 10'' x 6'' 273.0 168.3 216 194
          10'' x 5'' 273.0 141.3 216 191
¾'' x ½'' 26.7 21.3 29 29 10'' x 4'' 273.0 114.3 216 184
¾'' x 3/8'' 26.7 17.3 29 29
          12'' x 10'' 323.8 273.0 254 241
1'' x ¾'' 33.4 26.7 38 38 12'' x 8'' 323.8 219.1 254 229
1'' x ½'' 33.4 21.3 38 38 12'' x 6'' 323.8 168.3 254 219
          12'' x 5'' 323.8 141.3 254 216
1.1/4'' x 1'' 42.2 33.4 48 48
1.1/4'' x 3/4'' 42.2 26.7 48 48 14'' x 12'' 355.6 323.8 279 270
1.1/4 x ½'' 42.2 21.3 48 48 14'' x 10'' 355.6 273.0 279 257
          14'' x 8'' 355.6 219.1 279 248
1.1/2'' x 1.1/4'' 48.3 42.2 57 57 14'' x 6'' 355.6 168.3 279 238
1.1/2'' x 1'' 48.3 33.4 57 57
1.1/2'' x ¾ 48.3 26.7 57 57 16'' x 14'' 406.4 355.6 305 305
1.1/2'' x 1/2'' 48.3 21.3 57 57 16'' x 12'' 406.4 323.8 305 295
          16'' x 10'' 406.4 273.0 305 283
2'' x 1.1/2'' 60.3 48.3 64 60 16'' x 8'' 406.4 219.1 305 273
2'' x 1.1/4'' 60.3 42.2 64 57 16'' x 6'' 406.4 168.3 305 264
2'' x 1'' 60.3 33.4 64 51
2'' x 3/4'' 60.3 26.7 64 44 18'' x 16'' 457.0 406.4 343 330
          18'' x 14'' 457.0 355.6 343 330
2.1/2'' x 2'' 73.0 60.3 76 70 18'' x 12'' 457.0 323.8 343 321
2.1/2'' x 1.1/2'' 73.0 48.3 76 67 18'' x 10'' 457.0 273.0 343 308
2.1/2'' x 1.1/4'' 73.0 42.2 76 64 18'' x 8'' 457.0 219.1 343 298
2.1/2'' x 1'' 73.0 33.4 76 57
          20'' x 18'' 508.0 457.0 381 368
3'' x 2.1/2'' 88.9 73.0 86 83 20'' x 16'' 508.0 406.4 381 356
3'' x 2'' 88.9 60.3 86 76 20'' x 14'' 508.0 355.6 381 356
3'' x 1.1/2'' 88.9 48.3 86 73 20'' x 12'' 508.0 323.8 381 346
3'' x 1.1/4'' 88.9 42.2 86 70 20'' x 10'' 508.0 273.0 381 333
          20'' x 8'' 508.0 219.1 381 324
3.1/2'' x 3'' 101.6 88.9 95 92
3.1/2'' x 2.1/2'' 101.6 73.0 95 89 22'' x 20'' 559.0 508.0 419 406
3.1/2'' x 2'' 101.6 60.3 95 83 22'' x 18'' 559.0 457.0 419 394
3.1/2'' x 1.1/2'' 101.6 48.3 95 79 22'' x 16'' 559.0 406.4 419 381
          22'' x 14'' 559.0 355.6 419 381
4'' x 3.1/2'' 114.3 101.6 105 102 22'' x 12'' 559.0 323.8 419 371
4'' x 3'' 114.3 88.9 105 98 22'' x 10'' 559.0 273.0 419 359
4'' x 2.1/2'' 114.3 73.0 105 95
4'' x 2'' 114.3 60.3 105 89 24'' x 22'' 610.0 559.0 432 432
4'' x 1.1/2'' 114.3 48.3 105 86 24'' x 20'' 610.0 508.0 432 432
          24'' x 18'' 610.0 457.0 432 419
5'' x 4'' 141.3 114.3 124 117 24'' x 16'' 610.0 406.4 432 406
5'' x 3.1/2'' 141.3 101.6 124 114 24'' x 14'' 610.0 355.6 432 406
5'' x 3'' 141.3 88.9 124 111 24'' x 12'' 610.0 323.8 432 397
5'' x 2.1/2'' 141.3 73.0 124 108 24'' x 10'' 610.0 273.0 432 384
5'' x 2'' 141.3 60.3 124 105
          26'' x 24'' 660.0 610.0 495 483
6'' x 5'' 168.3 141.3 143 137 26'' x 22'' 660.0 559.0 495 470
6'' x 4'' 168.3 114.3 143 130 26'' x 20'' 660.0 508.0 495 457
6'' x 3.1/2'' 168.3 101.6 143 127 26'' x 18'' 660.0 457.0 495 444
6'' x 3'' 168.3 88.9 143 124 26'' x 16'' 660.0 406.4 495 432
6'' x 2.1/2'' 168.3 73.0 143 121 26'' x 14'' 660.0 355.6 495 432
          26'' x 12'' 660.0 323.8 495 422
8'' x 6'' 219.1 168.3 178 168
8'' x 5'' 219.1 141.3 178 162 28'' x 26'' 711.0 660.0 521 521
8'' x 4'' 219.1 114.3 178 156 28'' x 24'' 711.0 610.0 521 508
8'' x 3.1/2'' 219.1 101.6 178 152 28'' x 22'' 711.0 559.0 521 495
          28'' x 20'' 711.0 508.0 521 483
