Plugs and Bushings

We are engaged in manufacturing and supplying a wide range of Plugs and Bushings that is widely appreciated for providing high durability, easy operation with long lasting performance. These can be availed form us in nominal pipe sizes up to 4". Further, in order to cope up with the myriad requirements of the clients, we can also customize these products, as per customers’ specifications. Hence at Navkar Fittings & Forgings Private Limited you can rest assure for the best quality at best prices.

Technical Specifications

			Square Head Plugs		Round Head Plugs		Hex Plugs and Bushings
DN	Nominal Pipe Size	Min Length A	Min Square Height B	Min Width Flats C	Nominal Head Diameter, E	Min Length D	Nominal Width Flats, E	Min. Hex Height
								Bushing G	Plug H
6	1/8	10	6	7	10	35	11	...	6
8	1/4	11	6	10	14	41	16	3	6
10	3/8	13	8	11	18	41	18	4	8
15	1/2	14	10	14	21	44	22	5	8
20	3/4	16	11	16	27	44	27	6	10
25	1	19	13	21	33	51	36	6	10
32	1 1/4	21	14	24	43	51	46	7	14
40	1 1/2	21	16	28	48	51	50	8	16
50	2	22	18	32	60	64	65	9	18
65	2 1/2	27	19	36	73	70	75	10	19
80	3	28	21	41	89	70	90	10	21
100	4	32	25	65	114	76	115	13	25

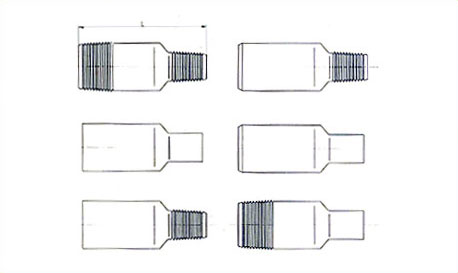

Swaged Nippolets (3000PSI)

Equipped with sophisticated infrastructural facilities, we are able to fabricate and deliver high quality range of Swaged Nippolets (3000PSI). For this, we have employed latest machines and technology that make these ranges to be widely used in a multitude of industries. These are hence long lasting in quality, and are available at competitive prices. Further, being a high pressure fitting these nippolets can withstand high pressure and can be used as permanent or detachable thread connection.

Technical Specifications

Large end Size	Small and Size	Length -L
½	3/8 – 1/8	70
¾	12/ -1/8	76
1	¾-1/8	89
1 ¼	1-1/8	102
1 ½	1 ¼ -1/8	114
2	1 ½ -1/8	165
2 ½	2-1/8	178
3	2 ½ – 1/8	203
3 ½	3-18	203
4	3 ½ – 1/8	229
