Disc Thickner

Working Principles

Parason Disc Thickner works as a gravity filter and does not require any barometric legs for creating vacuum . it can be installed at lower elevation.

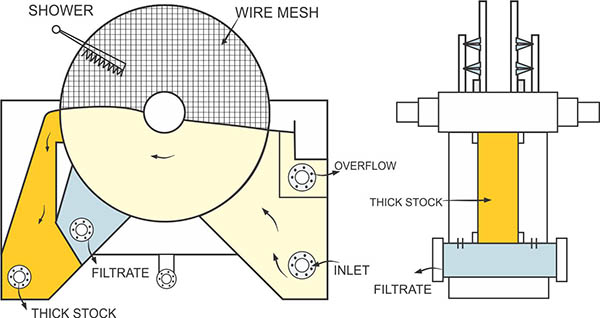

Stock enters into the inlet chamber and directed in between two mesh covered disc. The level difference between feeding and filtrate chambers provides the necessary hydraulic pressure difference for a water / solid separation. water drains through the mash.

The rotation if disc has dual action. First, thickened stock is conveyed into the discharge chamber. Secondly, it creates’’ rolling effect’’ of the stock lump on the disc surface, producing a clearing action. The mesh of the discs is cleaned by spray nozzles pipes.

Applications

As Thickener for:
– Recycle Fiber, Chemical and Mechanical Pulp
– Eflluent Sludge
– Broke
– Chemical Industry

As Washer for:
– Deinked Pulp
– Removal of Fillers and Fines from Recycled Fiber Pulp

As Filter For:
- White Water system
– Fibre recovery system
– Effluent Water
– Chemical Industrys
