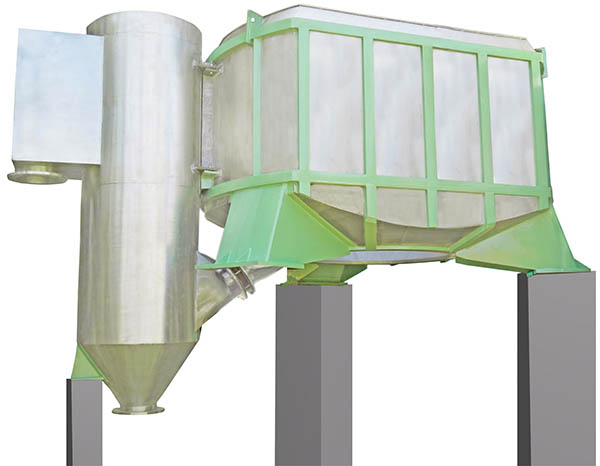

Low Consistency Pulper

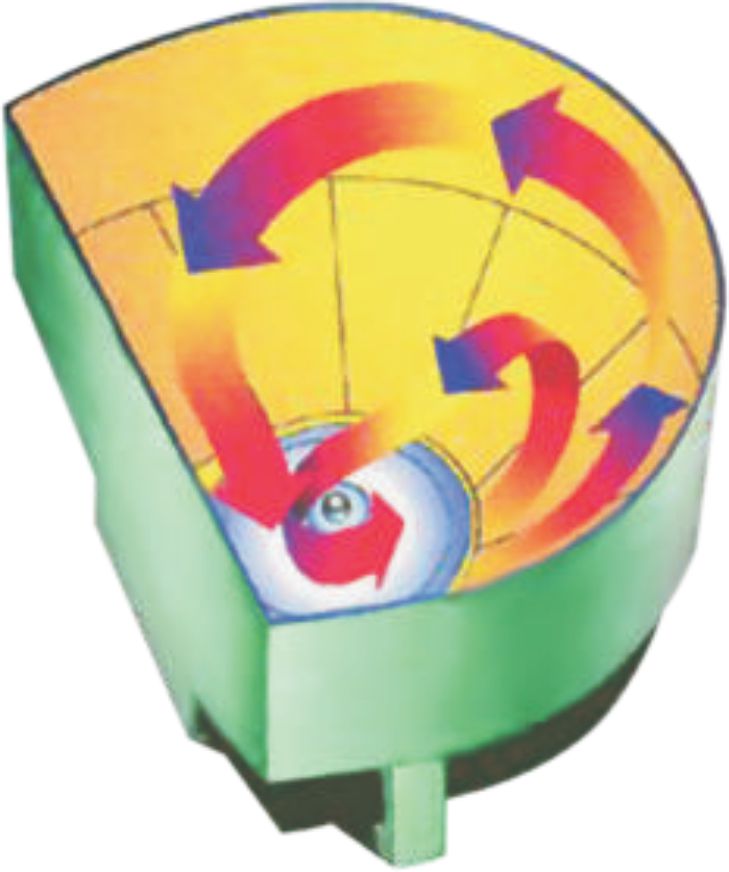

Operating Principles

• ‘D’ Section of tub is increase the turbulence in the Tub causing
  bales/bundles to submerge rapidly and thus, reduce the dwelling
  time
• Suitable for continuous operation.
• Suitable for furnish of OCC, AOCC, Box Board separate the
  reject and fiber. The Fiber discharge line is connected to the
  pulp suction or directly fed to storage towers.

Salient Features

• The model ‘D’ refers to the shape of Tub.
• Continuous Operation
• Operating consistency 4-6%
• Reduce burden on downstream equipment.
• Decreases/eliminates clean out down time.
• Higher capacity (TPD) with reduced power input compared to
  normal vertical Pulper
• S.S. Cast Roter of special design for handling different
  grade of low matrial
• ‘D’ Pulper can operated in ambient temp . as well as
  elevated temp. Upto 700C.
• Heavy duty sturdy bearings take impact load of bales/waste
  paper bundles.
• Removes Plastic in large pieces with little degradation.
• External adjustment of rotor to maintain clearance between
  rotor and screen.
