Reject sorter

Working Principles

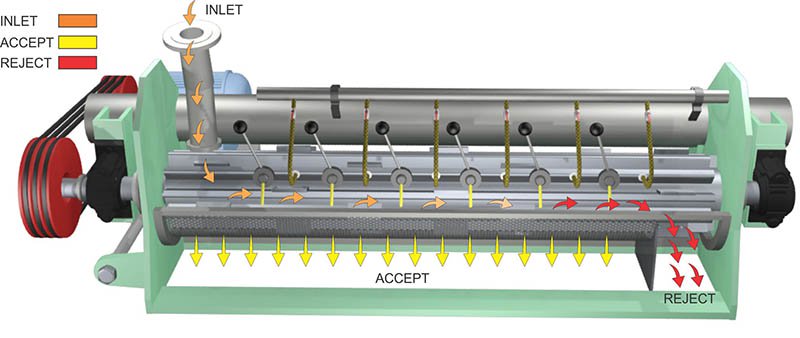

The pulp slurry, with concentrated rejects, enters the Reject screen. Showers in the screen wash fiber from the debris in the screening zone.
The rotor clears and transports the debris along the length of the screen plate towards the reject end.

Recovered fiber is accepted from the screen and can be fed forward / backward in the system. The interaction of the multi-pitch rotor, screen plate and internal baffling produce virtually fiber and water free reject that are suitable for transportation and disposal.

Application

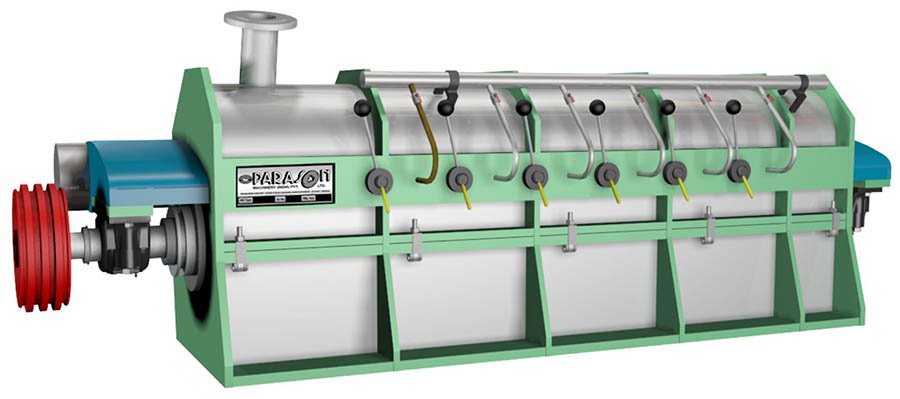

Parason Reject sorter is non-vibrating, low attrition, totally enclosed reject screen that remove debris in almost dry condition with minimum fibre loss. Parason Reject sorter is designed for handling reject of screening at Pulp mill/Stock preparation stage and to work with waste paper and virgin Pulp line.

Benefits

• Continuous operation.
• Gravity feed and discharge.
• Higher fiber recovery and debris removal.
• Turbulence chamber deflakes and separate fiber.
• Specially designed rotor avoids string formation.
• Screen plate of different hole size, hole types and slot sizes.
• Reject virtually fiber and water free reducing handling and
  disposal costs.
• Easily removable top provides access to rotoror screen plate,
  reducing maintenance cost.
