Specifications
- Chetak machines are designed with double gear system to provide Two speeds.
- Slow speed & High Speed gear system will cut fodder in two sizes ¼" to ¾" & ¾" to 1½ ".
- Gears are made of special graded steed material (S. G. Iron)
- Accurate machining of gears on gear hobbing machine to help quick change of gear & low noise level for long life trouble free performance.
- All steel metal parts are manufactured on automatic press machines to ensure their changeability of parts, entire assembly is done by Nuts & Bolts for shifting from one place to another place.
- Blade box is designed with ample space for very easy sharpening of the blades and maintained & to push chaff at safe distance & avoid accumulation.
- Blade bracket 'T' is made from S. G. Iron instead of fabrication to achieve consistency in the cutting of fodder.
- Ball bearing are fitted instead of angular pedestal bearing for longer life & proper alignment of the moving parts.
- No chance of injury or accident. Machine can be operated even by ladies, boys or girls in view of very high safety standard incorporated in the design.
- More cutting of fodder is achieved due to special design of blade box which helps in saving cost of power/fuel.
- First time in India, Engine driven Chaff Cutter with forward & reverse system is designed for ease of operation.

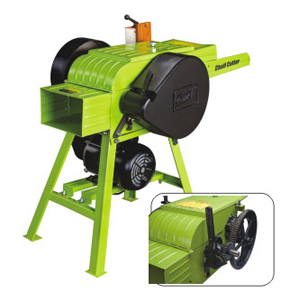

Constant Speed Gear System
| No. | Item | Technical Data |
|---|---|---|
| 1 | Model | CCR=01 |
| 2 | Blade Speed | 720 |
| 3 | Cutting blade material | High carbon blade |
| 4 | No. of blades | 04 (Both side sharping) |
| 5 | Blade size (mm) | 115 X 60 X 8 mm |
| 6 | Capacity / hr.* | Above 1000kg. |
| 7 | Electrical motor (HP) | 2 HP – single phase |
| 8 | Engine | 3.5 HP – Air Cooled |
| 9 | Overall Dimensions (L X W X H) (mm) | 1130 X 508 X 865 |
| 10 | Chaff Cutting Size | 110 Teeth ¼" to ½" |
Double Speed Gear System
| No. | Item | Technical Data |
|---|---|---|
| 1 | Model | CCR=02 |
| 2 | Blade Speed (RPM) | 432 |
| 3 | Cutting blade material | High carbon blade |
| 4 | No. of blades | 04 (Both side sharping) |
| 5 | Blade size (mm) | 115 X 60 X 8 mm |
| 6 | Capacity / hr.* | Above 1000kg. |
| 7 | Electrical motor (HP) | 2 HP – single phase |
| 8 | Engine | 3.5 HP – Air Cooled |
| 9 | Overall Dimensions (L X W X H) (mm) | 1130 X 508 X 865 |
| 10 | Chaff Cutting Size | 90 Teeth ¼" to 1½" 100 Teeth ¾" to ½" |

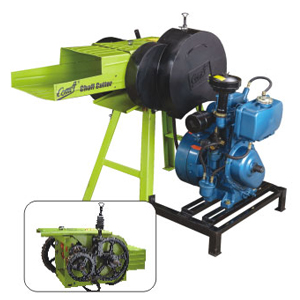

Engine Driven Reverse / Forward System
| No. | Item | Technical Data |
|---|---|---|
| 1 | Model | CCR=02 |
| 2 | Blade Speed (RPM) | 432 |
| 3 | Cutting blade material | High carbon blade |
| 4 | No. of blades | 04 (Both side sharping) |
| 5 | Blade size (mm) | 115 X 60 X 8 mm |
| 6 | Capacity / hr.* | Above 1000kg. |
| 7 | Electrical motor (HP) | 2 HP – single phase |
| 8 | Engine | 3.5 HP – Air Cooled |
| 9 | Overall Dimensions (L X W X H) (mm) | 1130 X 910 X 865 |
| 10 | Chaff Cutting Size | 90 Teeth ¼" to 1½" 100 Teeth ¾" to ½" |
