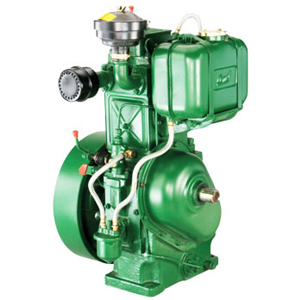

8.0 HP Water Cooled Gear Pump (VRC 6G)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

PumpSet, Gensets, Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Agricultural Equipment

No. Item Technical Data
1 Method of Cooling Water
2 No. of Cylinder 1
3 Rated Power - B. H. P. / kW 8.0/5.9
4 Bore (mm) 95.0
5 Stroke (mm) 110.0
6 Rated R. P. M. 1500
7 Swept Volume (CC) 780
8 Compression Ratio 17.5:1
9 Bearing Type Bush
10 Method of Starting Cold Starting with the help of Starting Handle
11 Engine Rotation Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request
12 Governor Type / Class Centrifugal / B1 Class
13 Fuel Oil High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14 Fuel Tank Capacity 11.0 Lts.
15 Fuel Injection Timing by Spill Cut Off Method 27° BTDC
16 Fuel Injection Equipment MICO make Nozzle Holder 9 430 032 155
Bosch Pump 9 410 031 021
Injection Release Pressure 190 / 210 kg / cm2
17 Sp. Fuel Consumption gms / bhp - hr 185
18 Sp. Fuel Consumption gms / Kwhr 251
19 Fuel Filter Type / Capacity (Lts.) Paper Type (Replaceable) / 0.5
20 Bumping Clearance (mm) 1.14 - 1.27
21 Valve Tappet Clearance Inlet (mm) 0.18
22 Valve Tappet Clearance Exhaust (mm) 0.20
23 Air Clearaner Oil Bath Washable Type
24 Silencer Muffler Type
25 Lubrication System Gear Pump
26 Lub. Oil Sump Capacity (Lts.) 3.750
27 Lub. Oil Strainer Perforated Tin Sheet Washable Type
28 Lub. Oil Grade Temp 5° C & Below - SAE 10
Temp 5° C to 34° C - SAE 30
Temp 34° C & Above - SAE 40
29 Crank Shaft Height (mm) 203
30 Foundation Bolt Spacing (mm) 292 x 140
31 Engine Net Weight (kg) 170
32 Engine Gross Weight (kg) 240
33 Overall Dimensions (L x W x H) 520 x 535 x 848
34 Overall Packing Dimensions (L x W x H) (mm) 762 x 660 x 908

10.0 HP Water Cooled Gear Pump (VRC 8G)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

Gensets, Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications

No. Item Technical Data
1 Method of Cooling Water
2 No. of Cylinder 1
3 Rated Power - B. H. P. / kW 10.0/7.4
4 Bore (mm) 102.0
5 Stroke (mm) 116.0
6 Rated R. P. M. 1500
7 Swept Volume (CC) 948
8 Compression Ratio 18.8:1
9 Bearing Type Bush
10 Method of Starting Cold Starting with the help of Starting Handle
11 Engine Rotation Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request
12 Governor Type / Class Centrifugal / B1 Class
13 Fuel Oil High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14 Fuel Tank Capacity 11.0 Lts.
15 Fuel Injection Timing by Spill Cut Off Method 27° BTDC
16 Fuel Injection Equipment MICO make Nozzle Holder 9 430 032 155
Bosch Pump 9 410 031 021
Injection Release Pressure 190 / 210 kg / cm2
17 Sp. Fuel Consumption gms / bhp - hr 185
18 Sp. Fuel Consumption gms / Kwhr 251
19 Fuel Filter Type / Capacity (Lts.) Paper Type (Replaceable) / 0.5
20 Bumping Clearance (mm) 1.14 - 1.27
21 Valve Tappet Clearance Inlet (mm) 0.18
22 Valve Tappet Clearance Exhaust (mm) 0.20
23 Air Clearaner Oil Bath Washable Type
24 Silencer Muffler Type
25 Lubrication System Gear Pump
26 Lub. Oil Sump Capacity (Lts.) 3.750
27 Lub. Oil Strainer Perforated Tin Sheet Washable Type
28 Lub. Oil Grade Temp 5° C & Below - SAE 10
Temp 5° C to 34° C - SAE 30
Temp 34° C & Above - SAE 40
29 Crank Shaft Height (mm) 203
30 Foundation Bolt Spacing (mm) 292 x 140
31 Engine Net Weight (kg) 175
32 Engine Gross Weight (kg) 245
33 Overall Dimensions (L x W x H) 520 x 535 x 848
34 Overall Packing Dimensions (L x W x H) (mm) 762 x 660 x 908

12.0 HP Water Cooled Gear Pump (VRC 10G)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

Gensets,Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications

No. Item Technical Data
1 Method of Cooling Water
2 No. of Cylinder 1
3 Rated Power - B. H. P. / kW 12.0/8.83
4 Bore (mm) 102.0
5 Stroke (mm) 116.0
6 Rated R. P. M. 1800
7 Swept Volume (CC) 948
8 Compression Ratio 18.8:1
9 Bearing Type Bush
10 Method of Starting Cold Starting with the help of Starting Handle
11 Engine Rotation Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request
12 Governor Type / Class Centrifugal / B1 Class
13 Fuel Oil High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14 Fuel Tank Capacity 11.0 Lts.
15 Fuel Injection Timing by Spill Cut Off Method 27° BTDC
16 Fuel Injection Equipment MICO make Nozzle Holder 9 430 032 155
Bosch Pump 9 410 031 021
Injection Release Pressure 190 / 210 kg / cm2
17 Sp. Fuel Consumption gms / bhp - hr 185
18 Sp. Fuel Consumption gms / Kwhr 251
19 Fuel Filter Type / Capacity (Lts.) Paper Type (Replaceable) / 0.5
20 Bumping Clearance (mm) 1.14 - 1.27
21 Valve Tappet Clearance Inlet (mm) 0.18
22 Valve Tappet Clearance Exhaust (mm) 0.20
23 Air Clearaner Oil Bath Washable Type
24 Silencer Muffler Type
25 Lubrication System Gear Pump
26 Lub. Oil Sump Capacity (Lts.) 3.750
27 Lub. Oil Strainer Perforated Tin Sheet Washable Type
28 Lub. Oil Grade Temp 5° C & Below - SAE 10
Temp 5° C to 34° C - SAE 30
Temp 34° C & Above - SAE 40
29 Crank Shaft Height (mm) 203
30 Foundation Bolt Spacing (mm) 292 x 140
31 Engine Net Weight (kg) 175
32 Engine Gross Weight (kg) 245
33 Overall Dimensions (L x W x H) 520 x 535 x 848
34 Overall Packing Dimensions (L x W x H) (mm) 762 x 660 x 908

14.0 HP Water Cooled Gear Pump (VRC 14G)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

Gensets, Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications

No. Item Technical Data
1 Method of Cooling Water
2 No. of Cylinder 1
3 Rated Power - B. H. P. / kW 14.0/10.3
4 Bore (mm) 114.3
5 Stroke (mm) 120.0
6 Rated R. P. M. 1500
7 Swept Volume (CC) 1230
8 Compression Ratio 18.0:1
9 Bearing Type Bush
10 Method of Starting Cold Starting with the help of Starting Handle
11 Engine Rotation Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request
12 Governor Type / Class Centrifugal / B1 Class
13 Fuel Oil High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14 Fuel Tank Capacity 20.0 Lts
15 Fuel Injection Timing by Spill Cut Off Method 27° BTDC
16 Fuel Injection Equipment MICO make Nozzle Holder 9 430 032 155
Bosch Pump 9 410 031 021
Injection Release Pressure 190 / 210 kg / cm2
17 Sp. Fuel Consumption gms / bhp - hr 169
18 Sp. Fuel Consumption gms / Kwhr 230
19 Fuel Filter Type / Capacity (Lts.) Paper Type (Replaceable) / 0.5
20 Bumping Clearance (mm) 1.14 - 1.27
21 Valve Tappet Clearance Inlet (mm) 0.18
22 Valve Tappet Clearance Exhaust (mm) 0.20
23 Air Clearaner Oil Bath Washable Type
24 Silencer Muffler Type
25 Lubrication System Gear Pump
26 Lub. Oil Sump Capacity (Lts.) 3.750
27 Lub. Oil Strainer Perforated Tin Sheet Washable Type
28 Lub. Oil Grade Temp 5° C & Below - SAE 10
Temp 5° C to 34° C - SAE 30
Temp 34° C & Above - SAE 40
29 Crank Shaft Height (mm) 203
30 Foundation Bolt Spacing (mm) 292 x 140
31 Engine Net Weight (kg) 207
32 Engine Gross Weight (kg) 292
33 Overall Dimensions (L x W x H) 550 x 670 x 840
34 Overall Packing Dimensions (L x W x H) (mm) 762 x 724 x 971

5.0 HP Air Cooled Gear Pump (VAC 5G)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

Gensets, Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Agricultural Equipment

No. Item Technical Data
1 Method of Cooling Air
2 No. of Cylinder 1
3 Rated Power - B. H. P. / kW 5.0/3.7
4 Bore (mm) 80.3
5 Stroke (mm) 110.0
6 Rated R. P. M. 1500
7 Swept Volume (CC) 553
8 Compression Ratio 17.5:1
9 Bearing Type Bush
10 Method of Starting Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request
11 Engine Rotation Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request
12 Governor Type / Class Centrifugal / B1 Class (A2 if required)
13 Fuel Oil High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14 Fuel Tank Capacity 7.0 Lts.
15 Fuel Injection Timing by Spill Cut Off Method 27° BTDC
16 Fuel Injection Equipment MICO make Nozzle Holder 9 430 032 155
Bosch Pump 9 410 031 021
Injection Release Pressure 190 / 210 kg / cm2
17 Sp. Fuel Consumption gms / bhp - hr 185
18 Sp. Fuel Consumption gms / Kwhr 251
19 Fuel Filter Type / Capacity (Lts.) Paper Type (Replaceable) / 0.2
20 Bumping Clearance (mm) 1.00 - 1.12
21 Valve Tappet Clearance Inlet (mm) 0.18
22 Valve Tappet Clearance Exhaust (mm) 0.20
23 Air Clearaner Oil Bath Washable Type
24 Silencer Muffler Type
25 Lubrication System Gear Pump
26 Lub. Oil Sump Capacity (Lts.) 3.750
27 Lub. Oil Strainer Perforated Tin Sheet Washable Type
28 Lub. Oil Grade Temp 5° C & Below - SAE 10
Temp 5° C to 34° C - SAE 30
Temp 34° C & Above - SAE 40
29 Crank Shaft Height (mm) 203
30 Foundation Bolt Spacing (mm) 292 x 140
31 Engine Net Weight (kg) 165
32 Engine Gross Weight (kg) 235
33 Overall Dimensions (L x W x H) 525 x 510 x 795
34 Overall Packing Dimensions (L x W x H) (mm) 762 x 660 x 908

6.5 HP Air Cooled Gear Pump (VAC 6.5G)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

Pumpsets, Gensets, Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications

No. Item Technical Data
1 Method of Cooling Air
2 No. of Cylinder 1
3 Rated Power - B. H. P. / kW 6.5/4.8
4 Bore (mm) 87.5
5 Stroke (mm) 110.0
6 Rated R. P. M. 1500
7 Swept Volume (CC) 661
8 Compression Ratio 18.0:1
9 Bearing Type Bush
10 Method of Starting Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request
11 Engine Rotation Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request
12 Governor Type / Class Centrifugal / B1 Class (A2 if required)
13 Fuel Oil High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14 Fuel Tank Capacity 7.0 Lts.
15 Fuel Injection Timing by Spill Cut Off Method 27° BTDC
16 Fuel Injection Equipment MICO make Nozzle Holder 9 430 032 155
Bosch Pump 9 410 031 021
Injection Release Pressure 190 / 210 kg / cm2
17 Sp. Fuel Consumption gms / bhp - hr 185
18 Sp. Fuel Consumption gms / Kwhr 251
19 Fuel Filter Type / Capacity (Lts.) Paper Type (Replaceable) / 0.2
20 Bumping Clearance (mm) 1.00 - 1.12
21 Valve Tappet Clearance Inlet (mm) 0.18
22 Valve Tappet Clearance Exhaust (mm) 0.20
23 Air Clearaner Oil Bath Washable Type
24 Silencer Muffler Type
25 Lubrication System Gear Pump
26 Lub. Oil Sump Capacity (Lts.) 3.750
27 Lub. Oil Strainer Perforated Tin Sheet Washable Type
28 Lub. Oil Grade Temp 5° C & Below - SAE 10
Temp 5° C to 34° C - SAE 30
Temp 34° C & Above - SAE 40
29 Crank Shaft Height (mm) 203
30 Foundation Bolt Spacing (mm) 292 x 140
31 Engine Net Weight (kg) 170
32 Engine Gross Weight (kg) 240
33 Overall Dimensions (L x W x H) 525 x 542 x 827
34 Overall Packing Dimensions (L x W x H) (mm) 762 x 660 x 908

8.0 HP Air Cooled Gear Pump (VAC 8G)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

Gensets, Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications

No. Item Technical Data
1 Method of Cooling Air
2 No. of Cylinder 1
3 Rated Power - B. H. P. / kW 8.0/5.9
4 Bore (mm) 95.0
5 Stroke (mm) 116.0
6 Rated R. P. M. 1500
7 Swept Volume (CC) 822
8 Compression Ratio 17.5:1
9 Bearing Type Bush
10 Method of Starting Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request
11 Engine Rotation Standard Rotation Clockwise facing Flywheel
12 Governor Type / Class Centrifugal / B1 Class (A2 if required)
13 Fuel Oil High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14 Fuel Tank Capacity 11.0 Lts.
15 Fuel Injection Timing by Spill Cut Off Method 27° BTDC
16 Fuel Injection Equipment MICO make Nozzle Holder 9 430 032 155
Bosch Pump 9 410 031 021
Injection Release Pressure 190 / 210 kg / cm2
17 Sp. Fuel Consumption gms / bhp - hr 185
18 Sp. Fuel Consumption gms / Kwhr 251
19 Fuel Filter Type / Capacity (Lts.) Paper Type (Replaceable) / 0.2
20 Bumping Clearance (mm) 1.14 - 1.27
21 Valve Tappet Clearance Inlet (mm) 0.18
22 Valve Tappet Clearance Exhaust (mm) 0.20
23 Air Clearaner Oil Bath Washable Type
24 Silencer Muffler Type
25 Lubrication System Gear Pump
26 Lub. Oil Sump Capacity (Lts.) 3.750
27 Lub. Oil Strainer Perforated Tin Sheet Washable Type
28 Lub. Oil Grade Temp 5° C & Below - SAE 10
Temp 5° C to 34° C - SAE 30
Temp 34° C & Above - SAE 40
29 Crank Shaft Height (mm) 203
30 Foundation Bolt Spacing (mm) 292 x 140
31 Engine Net Weight (kg) 180
32 Engine Gross Weight (kg) 250
33 Overall Dimensions (L x W x H) 550 x 580 x 830
34 Overall Packing Dimensions (L x W x H) (mm) 762 x 660 x 908

10.0 HP Air Cooled Gear Pump (VAC 10G)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

Gensets,Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications

No. Item Technical Data
1 Method of Cooling Air
2 No. of Cylinder 1
3 Rated Power - B. H. P. / kW 10.0/7.4
4 Bore (mm) 102.0
5 Stroke (mm) 116.0
6 Rated R. P. M. 1500
7 Swept Volume (CC) 948
8 Compression Ratio 18.8:1
9 Bearing Type Bush / TRB on specific request
10 Method of Starting Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request
11 Engine Rotation Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request
12 Governor Type / Class Centrifugal / B1 Class (A2 if required)
13 Fuel Oil High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14 Fuel Tank Capacity 11.0 Lts.
15 Fuel Injection Timing by Spill Cut Off Method 27° BTDC
16 Fuel Injection Equipment MICO make Nozzle Holder 9 430 032 155
Bosch Pump 9 410 031 021
Injection Release Pressure 190 / 210 kg / cm2
17 Sp. Fuel Consumption gms / bhp - hr 185
18 Sp. Fuel Consumption gms / Kwhr 251
19 Fuel Filter Type / Capacity (Lts.) Paper Type (Replaceable) / 0.5
20 Bumping Clearance (mm) 1.14 - 1.27
21 Valve Tappet Clearance Inlet (mm) 0.18
22 Valve Tappet Clearance Exhaust (mm) 0.20
23 Air Clearaner Oil Bath Washable Type
24 Silencer Muffler Type
25 Lubrication System Gear Pump
26 Lub. Oil Sump Capacity (Lts.) 3.750
27 Lub. Oil Strainer Perforated Tin Sheet Washable Type
28 Lub. Oil Grade Temp 5° C & Below - SAE 10
Temp 5° C to 34° C - SAE 30
Temp 34° C & Above - SAE 40
29 Crank Shaft Height (mm) 203
30 Foundation Bolt Spacing (mm) 292 x 140
31 Engine Net Weight (kg) 185
32 Engine Gross Weight (kg) 255
33 Overall Dimensions (L x W x H) 525 x 590 x 835
34 Overall Packing Dimensions (L x W x H) (mm) 762 x 660 x 908

12.0 HP Air Cooled Gear Pump (VAC 12G)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

Gensets,Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications

No. Item Technical Data
1 Method of Cooling Air
2 No. of Cylinder 1
3 Rated Power - B. H. P. / kW 12.0/8.83
4 Bore (mm) 114.3
5 Stroke (mm) 120
6 Rated R. P. M. 1500
7 Swept Volume (CC) 1230
8 Compression Ratio 18.0:1
9 Bearing Type Bush
10 Method of Starting Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request
11 Engine Rotation Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request
12 Governor Type / Class Centrifugal / B1 Class (A2 if required)
13 Fuel Oil High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14 Fuel Tank Capacity 11.0 Lts.
15 Fuel Injection Timing by Spill Cut Off Method 27° BTDC
16 Fuel Injection Equipment MICO make Nozzle Holder 9 430 032 155
Bosch Pump 9 410 031 021
Injection Release Pressure 190 / 210 kg / cm2
17 Sp. Fuel Consumption gms / bhp - hr 179
18 Sp. Fuel Consumption gms / Kwhr 230
19 Fuel Filter Type / Capacity (Lts.) Paper Type (Replaceable) / 0.5
20 Bumping Clearance (mm) 1.14 - 1.27
21 Valve Tappet Clearance Inlet (mm) 0.18
22 Valve Tappet Clearance Exhaust (mm) 0.20
23 Air Clearaner Oil Bath Washable Type
24 Silencer Muffler Type
25 Lubrication System Gear Pump
26 Lub. Oil Sump Capacity (Lts.) 3.750
27 Lub. Oil Strainer Perforated Tin Sheet Washable Type
28 Lub. Oil Grade Temp 5° C & Below - SAE 10
Temp 5° C to 34° C - SAE 30
Temp 34° C & Above - SAE 40
29 Crank Shaft Height (mm) 203
30 Foundation Bolt Spacing (mm) 292 x 140
31 Engine Net Weight (kg) 202
32 Engine Gross Weight (kg) 287
33 Overall Dimensions (L x W x H) 525 x 590 x 835
34 Overall Packing Dimensions (L x W x H) (mm) 762 x 724 x 971

DOWNLOAD PDF
