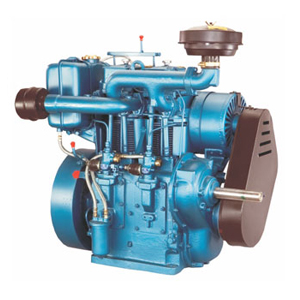

10.0 HP Water Cooled (VCT 10)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

Gensets, Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill , Marine, Mining applications

No.	Item	Technical Data
1	Method of Cooling	Water
2	No. of Cylinder	2
3	Rated Power - B. H. P. / kW	10.0/7.4
4	Bore (mm)	80.0
5	Stroke (mm)	110.0
6	Rated R. P. M.	1500
7	Swept Volume (CC)	1106
8	Compression Ratio	17.5:1
9	Bearing Type	Bush
10	Method of Starting	Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request
11	Engine Rotation	Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request
12	Governor Type / Class	Centrifugal / B1 Class (A2 if required)
13	Fuel Oil	High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14	Fuel Tank Capacity	11.0 Lts.
15	Fuel Injection Timing by Spill Cut Off Method	27° BTDC
16	Fuel Injection Equipment	MICO make Nozzle Holder 9 430 032 155
		Bosch Pump 9 410 031 021
		Injection Release Pressure 190 / 210 kg / cm2
17	Sp. Fuel Consumption gms / bhp - hr	185
18	Sp. Fuel Consumption gms / Kwhr	251
19	Fuel Filter Type / Capacity (Lts.)	Paper Type (Replaceable) / 0.5
20	Bumping Clearance (mm)	1.00 - 1.12
21	Valve Tappet Clearance Inlet (mm)	0.18
22	Valve Tappet Clearance Exhaust (mm)	0.20
23	Air Clearaner	Oil Bath Washable Type
24	Silencer	Muffler Type
25	Lubrication System	Gear Pump
26	Lub. Oil Sump Capacity (Lts.)	7.000
27	Lub. Oil Strainer	Perforated Tin Sheet Washable Type
28	Lub. Oil Grade	Temp 5° C & Below - SAE 10
		Temp 5° C to 34° C - SAE 30
		Temp 34° C & Above - SAE 40
29	Crank Shaft Height (mm)	203
30	Foundation Bolt Spacing (mm)	292 x 295
31	Engine Net Weight (kg)	260
32	Engine Gross Weight (kg)	350
33	Overall Dimensions (L x W x H)	805 x 610 x 885
34	Overall Packing Dimensions (L x W x H) (mm)	978 x 686 x 940

16.0 HP Water Cooled (VCT 16)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

Gensets, Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill , Marine, Mining applications

No.	Item	Technical Data
1	Method of Cooling	Water
2	No. of Cylinder	2
3	Rated Power - B. H. P. / kW	16.0/11.8
4	Bore (mm)	95.0
5	Stroke (mm)	116.0
6	Rated R. P. M.	1500
7	Swept Volume (CC)	1644
8	Compression Ratio	17.5:1
9	Bearing Type	Bush
10	Method of Starting	Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request
11	Engine Rotation	Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request
12	Governor Type / Class	Centrifugal / B1 Class (A2 if required)
13	Fuel Oil	High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14	Fuel Tank Capacity	11.0 Lts.
15	Fuel Injection Timing by Spill Cut Off Method	27° BTDC
16	Fuel Injection Equipment	MICO make Nozzle Holder 9 430 032 155
		Bosch Pump 9 410 031 021
		Injection Release Pressure 190 / 210 kg / cm2
17	Sp. Fuel Consumption gms / bhp - hr	185
18	Sp. Fuel Consumption gms / Kwhr	251
19	Fuel Filter Type / Capacity (Lts.)	Paper Type (Replaceable) / 0.5
20	Bumping Clearance (mm)	1.14 - 1.27
21	Valve Tappet Clearance Inlet (mm)	0.18
22	Valve Tappet Clearance Exhaust (mm)	0.20
23	Air Clearaner	Oil Bath Washable Type
24	Silencer	Muffler Type
25	Lubrication System	Gear Pump
26	Lub. Oil Sump Capacity (Lts.)	7.000
27	Lub. Oil Strainer	Perforated Tin Sheet Washable Type
28	Lub. Oil Grade	Temp 5° C & Below - SAE 10
		Temp 5° C to 34° C - SAE 30
		Temp 34° C & Above - SAE 40
29	Crank Shaft Height (mm)	203
30	Foundation Bolt Spacing (mm)	292 x 295
31	Engine Net Weight (kg)	270
32	Engine Gross Weight (kg)	360
33	Overall Dimensions (L x W x H)	805 x 610 x 885
34	Overall Packing Dimensions (L x W x H) (mm)	978 x 686 x 940

19.0 HP Water Cooled (VCT 19)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

Gensets, Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill , Marine, Mining applications

No.	Item	Technical Data
1	Method of Cooling	Water
2	No. of Cylinder	2
3	Rated Power - B. H. P. / kW	19.0/14.0
4	Bore (mm)	95.0
5	Stroke (mm)	110.0
6	Rated R. P. M.	1800
7	Swept Volume (CC)	1560
8	Compression Ratio	17.5:1
9	Bearing Type	Bush
10	Method of Starting	Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request
11	Engine Rotation	Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request
12	Governor Type / Class	Centrifugal / B1 Class
13	Fuel Oil	High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14	Fuel Tank Capacity	11.0 Lts.
15	Fuel Injection Timing by Spill Cut Off Method	27° BTDC
16	Fuel Injection Equipment	MICO make Nozzle Holder 9 430 032 155
		Bosch Pump 9 410 031 021
		Injection Release Pressure 190 / 210 kg / cm2
17	Sp. Fuel Consumption gms / bhp - hr	185
18	Sp. Fuel Consumption gms / Kwhr	251
19	Fuel Filter Type / Capacity (Lts.)	Paper Type (Replaceable) / 0.5
20	Bumping Clearance (mm)	1.14 - 1.27
21	Valve Tappet Clearance Inlet (mm)	0.18
22	Valve Tappet Clearance Exhaust (mm)	0.20
23	Air Clearaner	Oil Bath Washable Type
24	Silencer	Muffler Type
25	Lubrication System	Gear Pump
26	Lub. Oil Sump Capacity (Lts.)	7.000
27	Lub. Oil Strainer	Perforated Tin Sheet Washable Type
28	Lub. Oil Grade	Temp 5° C & Below - SAE 10
		Temp 5° C to 34° C - SAE 30
		Temp 34° C & Above - SAE 40
29	Crank Shaft Height (mm)	203
30	Foundation Bolt Spacing (mm)	292 x 295
31	Engine Net Weight (kg)	270
32	Engine Gross Weight (kg)	360
33	Overall Dimensions (L x W x H)	805 x 610 x 885
34	Overall Packing Dimensions (L x W x H) (mm)	978 x 686 x 940

20.0 HP Water Cooled (VCT 20)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

Gensets, Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill , Marine, Mining applications

No.	Item	Technical Data
1	Method of Cooling	Water
2	No. of Cylinder	2
3	Rated Power - B. H. P. / kW	20.0/14.7
4	Bore (mm)	102.0
5	Stroke (mm)	116.0
6	Rated R. P. M.	1500
7	Swept Volume (CC)	1896
8	Compression Ratio	18.8:1
9	Bearing Type	Bush
10	Method of Starting	Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request
11	Engine Rotation	Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request
12	Governor Type / Class	Centrifugal / B1 Class (A2 if required)
13	Fuel Oil	High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14	Fuel Tank Capacity	11.0 Lts.
15	Fuel Injection Timing by Spill Cut Off Method	27° BTDC
16	Fuel Injection Equipment	MICO make Nozzle Holder 9 430 032 155
		Bosch Pump 9 410 031 021
		Injection Release Pressure 190 / 210 kg / cm2
17	Sp. Fuel Consumption gms / bhp - hr	185
18	Sp. Fuel Consumption gms / Kwhr	251
19	Fuel Filter Type / Capacity (Lts.)	Paper Type (Replaceable) / 0.5
20	Bumping Clearance (mm)	1.14 - 1.27
21	Valve Tappet Clearance Inlet (mm)	0.18
22	Valve Tappet Clearance Exhaust (mm)	0.20
23	Air Clearaner	Oil Bath Washable Type
24	Silencer	Muffler Type
25	Lubrication System	Gear Pump
26	Lub. Oil Sump Capacity (Lts.)	7.000
27	Lub. Oil Strainer	Perforated Tin Sheet Washable Type
28	Lub. Oil Grade	Temp 5° C & Below - SAE 10
		Temp 5° C to 34° C - SAE 30
		Temp 34° C & Above - SAE 40
29	Crank Shaft Height (mm)	203
30	Foundation Bolt Spacing (mm)	292 x 295
31	Engine Net Weight (kg)	275
32	Engine Gross Weight (kg)	365
33	Overall Dimensions (L x W x H)	805 x 610 x 885
34	Overall Packing Dimensions (L x W x H) (mm)	978 x 686 x 940

24.0 HP Water Cooled (VCT 24)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

Gensets, Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining Equipment

No.	Item	Technical Data
1	Method of Cooling	Water
2	No. of Cylinder	2
3	Rated Power - B. H. P. / kW	24.0/17.7
4	Bore (mm)	102.0
5	Stroke (mm)	116.0
6	Rated R. P. M.	1800
7	Swept Volume (CC)	1896
8	Compression Ratio	18.8:1
9	Bearing Type	Bush
10	Method of Starting	Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request
11	Engine Rotation	Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request
12	Governor Type / Class	Centrifugal / B1 Class
13	Fuel Oil	High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14	Fuel Tank Capacity	11.0 Lts.
15	Fuel Injection Timing by Spill Cut Off Method	27° BTDC
16	Fuel Injection Equipment	MICO make Nozzle Holder 9 430 032 155
		Bosch Pump 9 410 031 021
		Injection Release Pressure 190 / 210 kg / cm2
17	Sp. Fuel Consumption gms / bhp - hr	185
18	Sp. Fuel Consumption gms / Kwhr	251
19	Fuel Filter Type / Capacity (Lts.)	Paper Type (Replaceable) / 0.5
20	Bumping Clearance (mm)	1.14 - 1.27
21	Valve Tappet Clearance Inlet (mm)	0.18
22	Valve Tappet Clearance Exhaust (mm)	0.20
23	Air Clearaner	Oil Bath Washable Type
24	Silencer	Muffler Type
25	Lubrication System	Gear Pump
26	Lub. Oil Sump Capacity (Lts.)	7.000
27	Lub. Oil Strainer	Perforated Tin Sheet Washable Type
28	Lub. Oil Grade	Temp 5° C & Below - SAE 10
		Temp 5° C to 34° C - SAE 30
		Temp 34° C & Above - SAE 40
29	Crank Shaft Height (mm)	203
30	Foundation Bolt Spacing (mm)	292 x 295
31	Engine Net Weight (kg)	275
32	Engine Gross Weight (kg)	365
33	Overall Dimensions (L x W x H)	805 x 610 x 885
34	Overall Packing Dimensions (L x W x H) (mm)	978 x 686 x 940

26.0 HP Water Cooled (VCT 26)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

Pumpsets, Gensets, Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications

No.	Item	Technical Data
1	Method of Cooling	Water
2	No. of Cylinder	2
3	Rated Power - B. H. P. / kW	26.0/19.14
4	Bore (mm)	114.3
5	Stroke (mm)	120.0
6	Rated R. P. M.	1500
7	Swept Volume (CC)	2460
8	Compression Ratio	18.0:1
9	Bearing Type	Bush
10	Method of Starting	Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request
11	Engine Rotation	Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request
12	Governor Type / Class	Centrifugal / B1 Class
13	Fuel Oil	High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14	Fuel Tank Capacity	11.0 Lts.
15	Fuel Injection Timing by Spill Cut Off Method	27° BTDC
16	Fuel Injection Equipment	MICO make Nozzle Holder 9 430 032 155
		Bosch Pump 9 410 031 021
		Injection Release Pressure 190 / 210 kg / cm2
17	Sp. Fuel Consumption gms / bhp - hr	185
18	Sp. Fuel Consumption gms / Kwhr	251
19	Fuel Filter Type / Capacity (Lts.)	Paper Type (Replaceable) / 0.5
20	Bumping Clearance (mm)	1.14 - 1.27
21	Valve Tappet Clearance Inlet (mm)	0.18
22	Valve Tappet Clearance Exhaust (mm)	0.20
23	Air Clearaner	Oil Bath Washable Type
24	Silencer	Muffler Type
25	Lubrication System	Gear Pump
26	Lub. Oil Sump Capacity (Lts.)	7.000
27	Lub. Oil Strainer	Perforated Tin Sheet Washable Type
28	Lub. Oil Grade	Temp 5° C & Below - SAE 10
		Temp 5° C to 34° C - SAE 30
		Temp 34° C & Above - SAE 40
29	Crank Shaft Height (mm)	203
30	Foundation Bolt Spacing (mm)	292 x 295
31	Engine Net Weight (kg)	290
32	Engine Gross Weight (kg)	380
33	Overall Dimensions (L x W x H)	805 x 650 x 875
34	Overall Packing Dimensions (L x W x H) (mm)	978 x 686 x 940

28.0 HP Water Cooled (VCT 28)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

Gensets, Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications

No.	Item	Technical Data
1	Method of Cooling	Water
2	No. of Cylinder	2
3	Rated Power - B. H. P. / kW	28.0/20.60
4	Bore (mm)	114.3
5	Stroke (mm)	120.0
6	Rated R. P. M.	1500
7	Swept Volume (CC)	2460
8	Compression Ratio	18.0:1
9	Bearing Type	Bush
10	Method of Starting	Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request
11	Engine Rotation	Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request
12	Governor Type / Class	Centrifugal / B1 Class
13	Fuel Oil	High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14	Fuel Tank Capacity	20.0 Lts.
15	Fuel Injection Timing by Spill Cut Off Method	27° BTDC
16	Fuel Injection Equipment	MICO make Nozzle Holder 9 430 032 155
		Bosch Pump 9 410 031 021
		Injection Release Pressure 190 / 210 kg / cm2
17	Sp. Fuel Consumption gms / bhp - hr	185
18	Sp. Fuel Consumption gms / Kwhr	251
19	Fuel Filter Type / Capacity (Lts.)	Paper Type (Replaceable) / 0.5
20	Bumping Clearance (mm)	1.14 - 1.27
21	Valve Tappet Clearance Inlet (mm)	0.18
22	Valve Tappet Clearance Exhaust (mm)	0.20
23	Air Clearaner	Oil Bath Washable Type
24	Silencer	Muffler Type
25	Lubrication System	Gear Pump
26	Lub. Oil Sump Capacity (Lts.)	7.000
27	Lub. Oil Strainer	Perforated Tin Sheet Washable Type
28	Lub. Oil Grade	Temp 5° C & Below - SAE 10
		Temp 5° C to 34° C - SAE 30
		Temp 34° C & Above - SAE 40
29	Crank Shaft Height (mm)	203
30	Foundation Bolt Spacing (mm)	292 x 295
31	Engine Net Weight (kg)	300
32	Engine Gross Weight (kg)	390
33	Overall Dimensions (L x W x H)	805 x 650 x 875
34	Overall Packing Dimensions (L x W x H) (mm)	978 x 686 x 940

10.0 HP Air Cooled (VAC 10)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

Gensets,Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications

No.	Item	Technical Data
1	Method of Cooling	Air
2	No. of Cylinder	2
3	Rated Power - B. H. P. / kW	10.0/7.4
4	Bore (mm)	80.0
5	Stroke (mm)	110.0
6	Rated R. P. M.	1500
7	Swept Volume (CC)	1106
8	Compression Ratio	17.5:1
9	Bearing Type	Bush
10	Method of Starting	Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request
11	Engine Rotation	Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request
12	Governor Type / Class	Centrifugal / B1 Class (A2 if required)
13	Fuel Oil	High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14	Fuel Tank Capacity	11.0 Lts.
15	Fuel Injection Timing by Spill Cut Off Method	27° BTDC
16	Fuel Injection Equipment	MICO make Nozzle Holder 9 430 032 155
		Bosch Pump 9 410 031 021
		Injection Release Pressure 190 / 210 kg / cm2
17	Sp. Fuel Consumption gms / bhp - hr	185
18	Sp. Fuel Consumption gms / Kwhr	251
19	Fuel Filter Type / Capacity (Lts.)	Paper Type (Replaceable) / 0.5
20	Bumping Clearance (mm)	1.00 - 1.12
21	Valve Tappet Clearance Inlet (mm)	0.18
22	Valve Tappet Clearance Exhaust (mm)	0.20
23	Air Clearaner	Oil Bath Washable Type
24	Silencer	Muffler Type
25	Lubrication System	Gear Pump
26	Lub. Oil Sump Capacity (Lts.)	7.000
27	Lub. Oil Strainer	Perforated Tin Sheet Washable Type
28	Lub. Oil Grade	Temp 5o C & Below - SAE 10
		Temp 5° C & Below - SAE 10
		Temp 5° C to 34° C - SAE 30
		Temp 34° C & Above - SAE 40
29	Crank Shaft Height (mm)	203
30	Foundation Bolt Spacing (mm)	292 x 295
31	Engine Net Weight (kg)	265
32	Engine Gross Weight (kg)	355
33	Overall Dimensions (L x W x H)	805 x 575 x 892
34	Overall Packing Dimensions (L x W x H) (mm)	978 x 686 x 940

13.0 HP Air Cooled (VAC 13)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

Gensets,Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications

No.	Item	Technical Data
1	Method of Cooling	Air
2	No. of Cylinder	2
3	Rated Power - B. H. P. / kW	13.0/9.6
4	Bore (mm)	87.5
5	Stroke (mm)	116.0
6	Rated R. P. M.	1500
7	Swept Volume (CC)	1396
8	Compression Ratio	18.0:1
9	Bearing Type	Bush
10	Method of Starting	Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request
11	Engine Rotation	Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request
12	Governor Type / Class	Centrifugal / B1 Class (A2 if required)
13	Fuel Oil	High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14	Fuel Tank Capacity	11.0 Lts.
15	Fuel Injection Timing by Spill Cut Off Method	27° BTDC
16	Fuel Injection Equipment	MICO make Nozzle Holder 9 430 032 155
		Bosch Pump 9 410 031 021
		Injection Release Pressure 190 / 210 kg / cm2
17	Sp. Fuel Consumption gms / bhp - hr	185
18	Sp. Fuel Consumption gms / Kwhr	251
19	Fuel Filter Type / Capacity (Lts.)	Paper Type (Replaceable) / 0.5
20	Bumping Clearance (mm)	1.00 - 1.12
21	Valve Tappet Clearance Inlet (mm)	0.18
22	Valve Tappet Clearance Exhaust (mm)	0.20
23	Air Clearaner	Oil Bath Washable Type
24	Silencer	Muffler Type
25	Lubrication System	Gear Pump
26	Lub. Oil Sump Capacity (Lts.)	7.000
27	Lub. Oil Strainer	Perforated Tin Sheet Washable Type
		Temp 5° C & Below - SAE 10
		Temp 5° C to 34o C - SAE 30
		Temp 34° C & Above - SAE 40
29	Crank Shaft Height (mm)	203
30	Foundation Bolt Spacing (mm)	292 x 295
31	Engine Net Weight (kg)	265
32	Engine Gross Weight (kg)	355
33	Overall Dimensions (L x W x H)	805 x 575 x 892
34	Overall Packing Dimensions (L x W x H) (mm)	978 x 686 x 940

16.0 HP Air Cooled (VAC 16)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

Gensets,Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications

No.	Item	Technical Data
1	Method of Cooling	Air
2	No. of Cylinder	2
3	Rated Power - B. H. P. / kW	16.0/11.8
4	Bore (mm)	95.0
5	Stroke (mm)	116.0
6	Rated R. P. M.	1500
7	Swept Volume (CC)	1644
8	Compression Ratio	17.5:1
9	Bearing Type	Bush
10	Method of Starting	Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request
11	Engine Rotation	Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request
12	Governor Type / Class	Centrifugal / B1 Class (A2 if required)
13	Fuel Oil	High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14	Fuel Tank Capacity	11.0 Lts.
15	Fuel Injection Timing by Spill Cut Off Method	27° BTDC
16	Fuel Injection Equipment	MICO make Nozzle Holder 9 430 032 155
		Bosch Pump 9 410 031 021
		Injection Release Pressure 190 / 210 kg / cm2
17	Sp. Fuel Consumption gms / bhp - hr	185
18	Sp. Fuel Consumption gms / Kwhr	251
19	Fuel Filter Type / Capacity (Lts.)	Paper Type (Replaceable) / 0.5
20	Bumping Clearance (mm)	1.00 - 1.12
21	Valve Tappet Clearance Inlet (mm)	0.18
22	Valve Tappet Clearance Exhaust (mm)	0.20
23	Air Clearaner	Oil Bath Washable Type
24	Silencer	Muffler Type
25	Lubrication System	Gear Pump
26	Lub. Oil Sump Capacity (Lts.)	7.000
27	Lub. Oil Strainer	Perforated Tin Sheet Washable Type
28	Lub. Oil Grade	Temp 5° C & Below - SAE 10
		Temp 5° C to 34° C - SAE 30
		Temp 34° C & Above - SAE 40
29	Crank Shaft Height (mm)	203
30	Foundation Bolt Spacing (mm)	292 x 295
31	Engine Net Weight (kg)	270
32	Engine Gross Weight (kg)	360
33	Overall Dimensions (L x W x H)	805 x 575 x 892
34	Overall Packing Dimensions (L x W x H) (mm)	978 x 686 x 940

20.0 HP Air Cooled (VAC 20)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

Gensets,Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications

No.	Item	Technical Data
1	Method of Cooling	Air
2	No. of Cylinder	2
3	Rated Power - B. H. P. / kW	20.0/14.7
4	Bore (mm)	102.0
5	Stroke (mm)	116.0
6	Rated R. P. M.	1500
7	Swept Volume (CC)	1896
8	Compression Ratio	19.0:1
9	Bearing Type	Bush
10	Method of Starting	Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request
11	Engine Rotation	Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request
12	Governor Type / Class	Centrifugal / B1 Class (A2 if required)
13	Fuel Oil	High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14	Fuel Tank Capacity	11.0 Lts.
15	Fuel Injection Timing by Spill Cut Off Method	27° BTDC
16	Fuel Injection Equipment	MICO make Nozzle Holder 9 430 032 155
		Bosch Pump 9 410 031 033
		Injection Release Pressure 190 / 210 kg / cm2
17	Sp. Fuel Consumption gms / bhp - hr	185
18	Sp. Fuel Consumption gms / Kwhr	251
19	Fuel Filter Type / Capacity (Lts.)	Paper Type (Replaceable) / 0.5
20	Bumping Clearance (mm)	1.14 - 1.27
21	Valve Tappet Clearance Inlet (mm)	0.18
22	Valve Tappet Clearance Exhaust (mm)	0.20
23	Air Clearaner	Oil Bath Washable Type
24	Silencer	Muffler Type
25	Lubrication System	Gear Pump
26	Lub. Oil Sump Capacity (Lts.)	7.000
27	Lub. Oil Strainer	Perforated Tin Sheet Washable Type
28	Lub. Oil Grade	Temp 5° C & Below - SAE 10
		Temp 5° C to 34° C - SAE 30
		Temp 34° C & Above - SAE 40
29	Crank Shaft Height (mm)	203
30	Foundation Bolt Spacing (mm)	292 x 295
31	Engine Net Weight (kg)	285
32	Engine Gross Weight (kg)	415
33	Overall Dimensions (L x W x H)	825 x 545 x 890
34	Overall Packing Dimensions (L x W x H) (mm)	1054 x 762 x 940

24.0 HP Air Cooled (VAC 24)

Specifications

Robust & Sturdy, Optimal Fuel efficiency, Low maintenance cost

Application

Gensets,Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications

No.	Item	Technical Data
1	Method of Cooling	Air
2	No. of Cylinder	2
3	Rated Power - B. H. P. / kW	24.0/17.7
4	Bore (mm)	114.0
5	Stroke (mm)	120.0
6	Rated R. P. M.	1500
7	Swept Volume (CC)	2460
8	Compression Ratio	18.0:1
9	Bearing Type	Bush
10	Method of Starting	Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request
11	Engine Rotation	Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request
12	Governor Type / Class	Centrifugal / B1 Class (A2 if required)
13	Fuel Oil	High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14	Fuel Tank Capacity	11/20.0 Lts.
15	Fuel Injection Timing by Spill Cut Off Method	27° BTDC
16	Fuel Injection Equipment	MICO make Nozzle Holder 9 430 032 155
		Bosch Pump 9 410 031 033
		Injection Release Pressure 190 / 210 kg / cm2
17	Sp. Fuel Consumption gms / bhp - hr	185
18	Sp. Fuel Consumption gms / Kwhr	251
19	Fuel Filter Type / Capacity (Lts.)	Paper Type (Replaceable) / 0.5
20	Bumping Clearance (mm)	1.14 - 1.27
21	Valve Tappet Clearance Inlet (mm)	0.18
22	Valve Tappet Clearance Exhaust (mm)	0.20
23	Air Clearaner	Oil Bath Washable Type
24	Silencer	Muffler Type
25	Lubrication System	Gear Pump
26	Lub. Oil Sump Capacity (Lts.)	7.000
27	Lub. Oil Strainer	Perforated Tin Sheet Washable Type
28	Lub. Oil Grade	Temp 5° C & Below - SAE 10
		Temp 5° C to 34° C - SAE 30
		Temp 34o° C & Above - SAE 40
29	Crank Shaft Height (mm)	203
30	Foundation Bolt Spacing (mm)	292 x 295
31	Engine Net Weight (kg)	295
32	Engine Gross Weight (kg)	425
33	Overall Dimensions (L x W x H)	825 x 545 x 890
34	Overall Packing Dimensions (L x W x H) (mm)	1054 x 762 x 940

DOWNLOAD PDF

Double Cylinder

10.0 HP Water Cooled (VCT 10)

Technical Data

16.0 HP Water Cooled (VCT 16)

Technical Data

19.0 HP Water Cooled (VCT 19)

Technical Data

20.0 HP Water Cooled (VCT 20)

Technical Data

24.0 HP Water Cooled (VCT 24)

Technical Data

26.0 HP Water Cooled (VCT 26)

Technical Data

28.0 HP Water Cooled (VCT 28)

Technical Data

10.0 HP Air Cooled (VAC 10)

Technical Data

13.0 HP Air Cooled (VAC 13)

Technical Data

16.0 HP Air Cooled (VAC 16)

Technical Data

20.0 HP Air Cooled (VAC 20)

Technical Data

24.0 HP Air Cooled (VAC 24)

Technical Data
