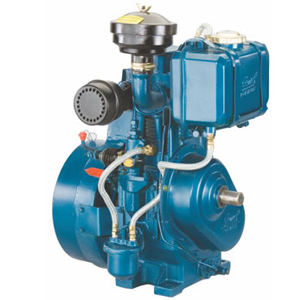

3.5 HP Water Cooled (VRC 3)
Specifications
Light weight, Easy portability, Optimal Fuel efficiency
Application
Pumpsets, Aquaculture, Firepumps , High pressure washers
| No. | Item | Technical Data |
|---|---|---|
| 1 | Method of Cooling | Water |
| 2 | No. of Cylinder | 1 |
| 3 | Rated Power - B. H. P. / kW | 3.5 / 2.6 |
| 4 | Bore (mm) | 76.0 |
| 5 | Stroke (mm) | 76.0 |
| 6 | Rated R. P. M. | 1500 |
| 7 | Swept Volume (CC) | 345 |
| 8 | Compression Ratio | 16.7:1 |
| 9 | Bearing Type | TRB |
| 10 | Method of Starting | Cold Starting with the help of Starting Handle |
| 11 | Engine Rotation | Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request |
| 12 | Governor Type / Class | Centrifugal / B1 Class |
| 13 | Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
| 14 | Fuel Tank Capacity | 3.75 Lts. |
| 15 | Fuel Injection Timing by Spill Cut Off Method | 24° BTDC |
| 16 | Fuel Injection Equipment | MICO make Nozzle Holder 9 430 032 294 |
| Bosch Pump 9 410 031 021 | ||
| Injection Release Pressure 190 / 210 kg / cm2 | ||
| 17 | Sp. Fuel Consumption gms / bhp - hr | 185 |
| 18 | Sp. Fuel Consumption gms / Kwhr | 252 |
| 19 | Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.2 |
| 20 | Bumping Clearance (mm) | 1.00 - 1.10 |
| 21 | Valve Tappet Clearance Inlet (mm) | 0.20 |
| 22 | Valve Tappet Clearance Exhaust (mm) | 0.25 |
| 23 | Air Clearaner | Oil Bath Washable Type |
| 24 | Silencer | Muffler Type |
| 25 | Lubrication System | Plunger Pump |
| 26 | Lub. Oil Sump Capacity (Lts.) | 1.300 |
| 27 | Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
| 28 | Lub. Oil Grade | Temp 5° C & Below - SAE 10 |
| Temp 5° C to 34° C - SAE 30 | ||
| Temp 34° C & Above - SAE 40 | ||
| 29 | Crank Shaft Height (mm) | 150 |
| 30 | Foundation Bolt Spacing (mm) | 225 x 120 |
| 31 | Engine Net Weight (kg) | 73 |
| 32 | Engine Gross Weight (kg) | 110 |
| 33 | Overall Dimensions (L x W x H) | 571 x 521 x 778 |
| 34 | Overall Packing Dimensions (L x W x H) (mm) | 572 x 521 x 705 |
| 1 | Pump Size (mm) | 65 x 50 |
| 2 | Head Range (mts.) | 9.5 to 12.8 |
| 3 | Duty Point | |
| Head (mts.) | 11.5 | |
| Discharge (lps) | 9.5 | |
| 4 | Efficiency (%) | 63.0 |
| 5 | Pump Set Net Weight (kg) | 110.0 |
| 6 | Pump Set Gross Weight (kg) | 185.0 |
| 7 | Overall Packing Dimensions (L x W x H) (mm) | 927 x 470 x 743 |

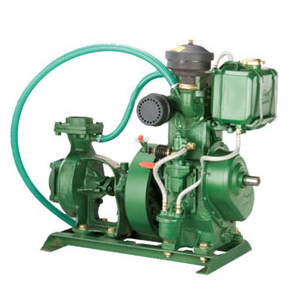

4.5 HP Water Cooled (VRC 5)
Specifications
Light weight, Easy portability, Optimal Fuel efficiency
Application
Pumpsets, Aquaculture, Firepumps , High pressure washers
| No. | Item | Technical Data |
|---|---|---|
| 1 | Method of Cooling | Water |
| 2 | No. of Cylinder | 1 |
| 3 | Rated Power - B. H. P. / kW | 4.5 / 3.3 |
| 4 | Bore (mm) | 76.0 |
| 5 | Stroke (mm) | 76.0 |
| 6 | Rated R. P. M. | 2050 |
| 7 | Swept Volume (CC) | 345 |
| 8 | Compression Ratio | 16.7:1 |
| 9 | Bearing Type | TRB |
| 10 | Method of Starting | Cold Starting with the help of Starting Handle |
| 11 | Engine Rotation | Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request |
| 12 | Governor Type / Class | Centrifugal / B1 Class |
| 13 | Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
| 14 | Fuel Tank Capacity | 3.75 Lts. |
| 15 | Fuel Injection Timing by Spill Cut Off Method | 28° BTDC |
| 16 | Fuel Injection Equipment | MICO make Nozzle Holder 9 430 032 155 |
| Bosch Pump 9 410 031 021 | ||
| Injection Release Pressure 190 / 210 kg / cm2 | ||
| 17 | Sp. Fuel Consumption gms / bhp - hr | 202 |
| 18 | Sp. Fuel Consumption gms / Kwhr | 275 |
| 19 | Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.2 |
| 20 | Bumping Clearance (mm) | 1.00 - 1.10 |
| 21 | Valve Tappet Clearance Inlet (mm) | 0.20 |
| 22 | Valve Tappet Clearance Exhaust (mm) | 0.25 |
| 23 | Air Clearaner | Oil Bath Washable Type |
| 24 | Silencer | Muffler Type |
| 25 | Lubrication System | Plunger Pump |
| 26 | Lub. Oil Sump Capacity (Lts.) | 1.300 |
| 27 | Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
| 28 | Lub. Oil Grade | Temp 5° C & Below - SAE 10 |
| Temp 5° C to 34° C - SAE 30 | ||
| Temp 34° C & Above - SAE 40 | ||
| 29 | Crank Shaft Height (mm) | 150 |
| 30 | Foundation Bolt Spacing (mm) | 225 x 120 |
| 31 | Engine Net Weight (kg) | 75 |
| 32 | Engine Gross Weight (kg) | 110 |
| 33 | Overall Dimensions (L x W x H) | 430 x 400 x 635 |
| 34 | Overall Packing Dimensions (L x W x H) (mm) | 572 x 521 x 705 |
| 1 | Pump Size (mm) | 65 x 50 |
| 2 | Head Range (mts.) | 12.8 to 17.6 |
| 3 | Duty Point | |
| Head (mts.) | 16.0 | |
| Discharge (lps) | 11.0 | |
| 4 | Efficiency (%) | 67.0 |
| 5 | Pump Set Net Weight (kg) | 110.0 |
| 6 | Pump Set Gross Weight (kg) | 170.0 |
| 7 | Overall Packing Dimensions (L x W x H) (mm) | 927 x 470 x 743 |

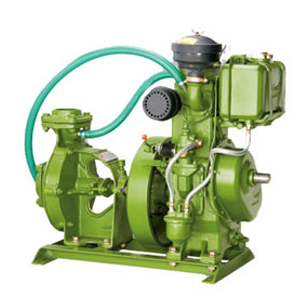

5.0 HP Water Cooled (CPW5)
Specifications
Light weight, Easy portability, Optimal Fuel efficiency
Application
Pumpsets, Aquaculture, Firepumps , High pressure washers
| No. | Item | Technical Data |
|---|---|---|
| 1 | Method of Cooling | Water |
| 2 | No. of Cylinder | 1 |
| 3 | Rated Power - B. H. P. / kW | 5.0 / 3.7 |
| 4 | Bore (mm) | 76.0 |
| 5 | Stroke (mm) | 76.0 |
| 6 | Rated R. P. M. | 2200 |
| 7 | Swept Volume (CC) | 345 |
| 8 | Compression Ratio | 16.7:1 |
| 9 | Bearing Type | TRB |
| 10 | Method of Starting | Cold Starting with the help of Starting Handle |
| 11 | Engine Rotation | Standard Rotation Clockwise facing Flywheel |
| 12 | Governor Type / Class | Centrifugal / B1 Class |
| 13 | Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
| 14 | Fuel Tank Capacity | 3.75 Lts. |
| 15 | Fuel Injection Timing by Spill Cut Off Method | 28° BTDC |
| 16 | Fuel Injection Equipment | MICO make Nozzle Holder 9 430 032 155 |
| Bosch Pump 9 410 031 021 | ||
| Injection Release Pressure 190 / 210 kg / cm2 | ||
| 17 | Sp. Fuel Consumption gms / bhp - hr | 177 |
| 18 | Sp. Fuel Consumption gms / Kwhr | 240 |
| 19 | Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.2 |
| 20 | Bumping Clearance (mm) | 1.00 - 1.10 |
| 21 | Valve Tappet Clearance Inlet (mm) | 0.20 |
| 22 | Valve Tappet Clearance Exhaust (mm) | 0.25 |
| 23 | Air Clearaner | Oil Bath Washable Type |
| 24 | Silencer | Muffler Type |
| 25 | Lubrication System | Plunger Pump |
| 26 | Lub. Oil Sump Capacity (Lts.) | 1.300 |
| 27 | Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
| 28 | Lub. Oil Grade | Temp 5° C & Below - SAE 10 |
| Temp 5° C to 34° C - SAE 30 | ||
| Temp 34° C & Above - SAE 40 | ||
| 29 | Crank Shaft Height (mm) | 150 |
| 30 | Foundation Bolt Spacing (mm) | 225 x 120 |
| 31 | Engine Net Weight (kg) | 73 |
| 32 | Engine Gross Weight (kg) | 110 |
| 33 | Overall Dimensions (L x W x H) | 430 x 400 x 635 |
| 34 | Overall Packing Dimensions (L x W x H) (mm) | 572 x 521 x 705 |
| 1 | Pump Size (mm) | 80 x 65 |
| 2 | Head Range (mts.) | 15.2 to 20.9 |
| 3 | Duty Point | |
| Head (mts.) | 19.0 | |
| Discharge (lps) | 12.0 | |
| 4 | Efficiency (%) | 68.0 |
| 5 | Pump Set Net Weight (kg) | 110.0 |
| 6 | Pump Set Gross Weight (kg) | 185.0 |
| 7 | Overall Packing Dimensions (L x W x H) (mm) | 927 x 470 x 743 |
| 1 | Pump Size (mm) | 65 x 50 |
| 2 | Head Range (mts.) | 15.5 to 24.0 |
| 3 | Duty Point | |
| Head (mts.) | 18.4 | |
| Discharge (lps) | 11.8 | |
| 4 | Efficiency (%) | 67.0 |
| 5 | Pump Set Net Weight (kg) | 110.0 |
| 6 | Pump Set Gross Weight (kg) | 170.0 |
| 7 | Overall Packing Dimensions (L x W x H) (mm) | 927 x 470 x 743 |
3.5 HP Air Cooled (CPA 3.5)
Specifications
Light weight, Easy portability, Optimal Fuel efficiency
Application
Pumpsets, Aquaculture, Firepumps , High pressure washers
| No. | Item | Technical Data |
|---|---|---|
| 1 | Method of Cooling | Air |
| 2 | No. of Cylinder | 1 |
| 3 | Rated Power - B. H. P. / kW | 3.5 / 2.6 |
| 4 | Bore (mm) | 80.0 |
| 5 | Stroke (mm) | 76.0 |
| 6 | Rated R. P. M. | 1500 |
| 7 | Swept Volume (CC) | 382 |
| 8 | Compression Ratio | 17.2 : 1 |
| 9 | Bearing Type | TRB |
| 10 | Method of Starting | Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request |
| 11 | Engine Rotation | Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request |
| 12 | Governor Type / Class | Centrifugal / B1 Class (A2 if required) |
| 13 | Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
| 14 | Fuel Tank Capacity | 3.75 Lts. |
| 15 | Fuel Injection Timing by Spill Cut Off Method | 24° BTDC |
| 16 | Fuel Injection Equipment | MICO make Nozzle Holder 9 430 032 155 |
| Bosch Pump 9 410 031 021 | ||
| Injection Release Pressure 190 / 210 kg / cm2 | ||
| 17 | Sp. Fuel Consumption gms / bhp - hr | 185 |
| 18 | Sp. Fuel Consumption gms / Kwhr | 251 |
| 19 | Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.2 |
| 20 | Bumping Clearance (mm) | 1.00 - 1.10 |
| 21 | Valve Tappet Clearance Inlet (mm) | 0.20 |
| 22 | Valve Tappet Clearance Exhaust (mm) | 0.25 |
| 23 | Air Clearaner | Oil Bath Washable Type |
| 24 | Silencer | Muffler Type |
| 25 | Lubrication System | Plunger Pump |
| 26 | Lub. Oil Sump Capacity (Lts.) | 1.300 |
| 27 | Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
| 28 | Lub. Oil Grade | Temp 5° C & Below - SAE 10 |
| Temp 5° C to 34° C - SAE 30 | ||
| Temp 34° C & Above - SAE 40 | ||
| 29 | Crank Shaft Height (mm) | 150 |
| 30 | Foundation Bolt Spacing (mm) | 225 x 120 |
| 31 | Engine Net Weight (kg) | 81 |
| 32 | Engine Gross Weight (kg) | 121 |
| 33 | Overall Dimensions (L x W x H) | 475 x 420 x 635 |
| 34 | Overall Packing Dimensions (L x W x H) (mm) | 622 x 521 x 711 |
| 1 | Pump Size (mm) | 65 x 50 |
| 2 | Head Range (mts.) | 9.5 to 12.8 |
| 3 | Duty Point | |
| Head (mts.) | 11.5 | |
| Discharge (lps) | 9.5 | |
| 4 | Efficiency (%) | 63.0 |
| 5 | Pump Set Net Weight (kg) | 118.0 |
| 6 | Pump Set Gross Weight (kg) | 193.0 |
| 7 | Overall Packing Dimensions (L x W x H) (mm) | 927 x 470 x 743 |
