Bag Handling System
Many industries operations have increased the number of orders they ship in polybags and paper bags. The bags are less expensive than cartons and do not incurdimensional weight surcharges from parcel carriers.
Alligator has developed reliable and cost-effective solutions to help our clients realize these savings. Our expertise ranges from integrated order fulfillment solutions that incorporate automated bagging technologies to conveyor systems that manifest and sort bagged orders. Whether you ship 2,000 or 50,00 orders per day, we have solutions that can help you reduce packaging and labor costs, order cycle time, and parcel freight rates.

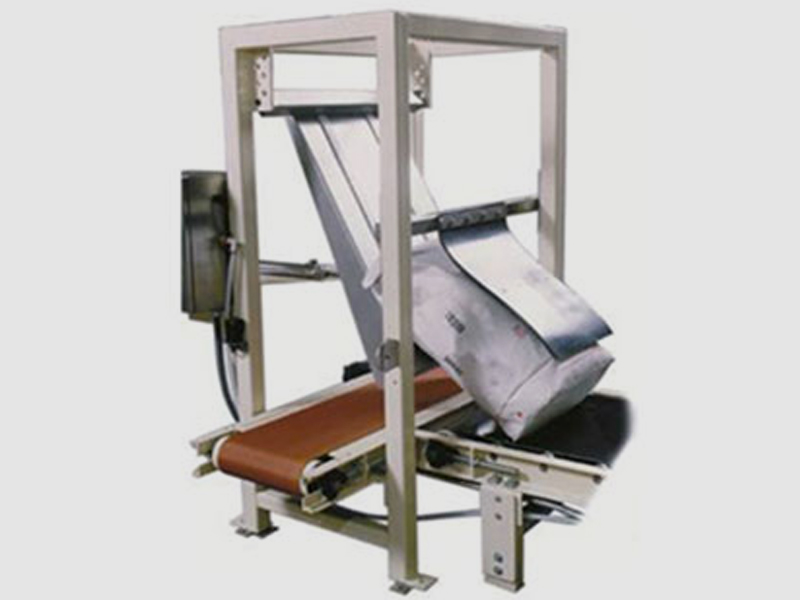

Bag Kickers
Bag kickers are belt conveyors designed to automatically "kick" a bag from an upright position to a horizontal bottom-first position at 90 degrees from the bag filler.
Bag kickers are adjustable to work with bags of various shapes and sizes and are typically positioned after the bag filler and before a bag flattener. Designed for heavy-duty bagging applications where bag sizes are up to 60 kg. Designed specifically for use with flat belt conveyor systems, this pneumatic bag kicker system is available in a right of left format. The kicker requires two additional feet of conveyor length.
STANDARD FEATURES
- Speeds up to 15 bags per minute
- Robust Construction.
- Adjustable to accommodate most bag sizes.
- Customized designs to integrate in any bagging line.

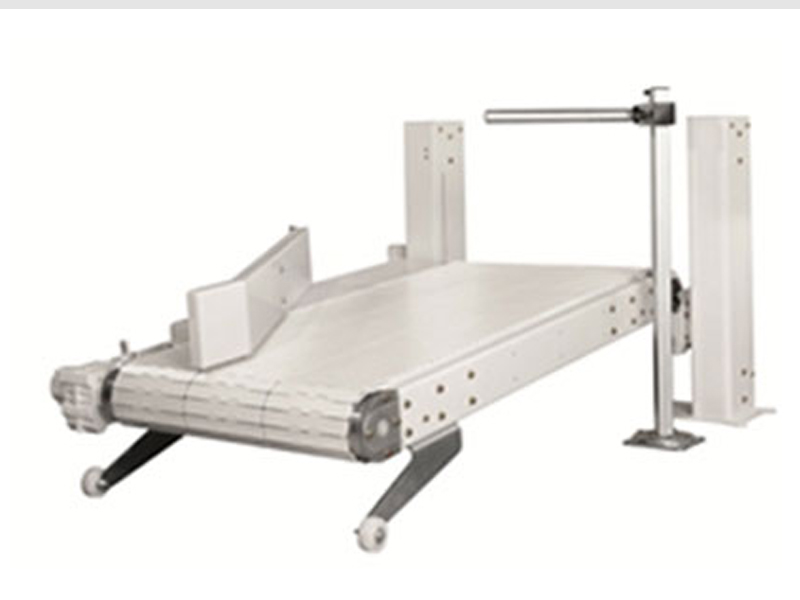

Bag Turners
Bag Turner is an automated, inline, slider-bed belt conveyor with a fixed bar that knocks down upright bags to a flat, bottom-first position. This Model can be adjusted to accommodate most bag sizes and is capable of speeds up to 15 bags per minute.
STANDARD FEATURES
- Speeds up to 15 bags per minute.
- Robust Construction.
- Adjustable to accommodate most bag sizes.
- Customized designs to integrate in any bagging line.

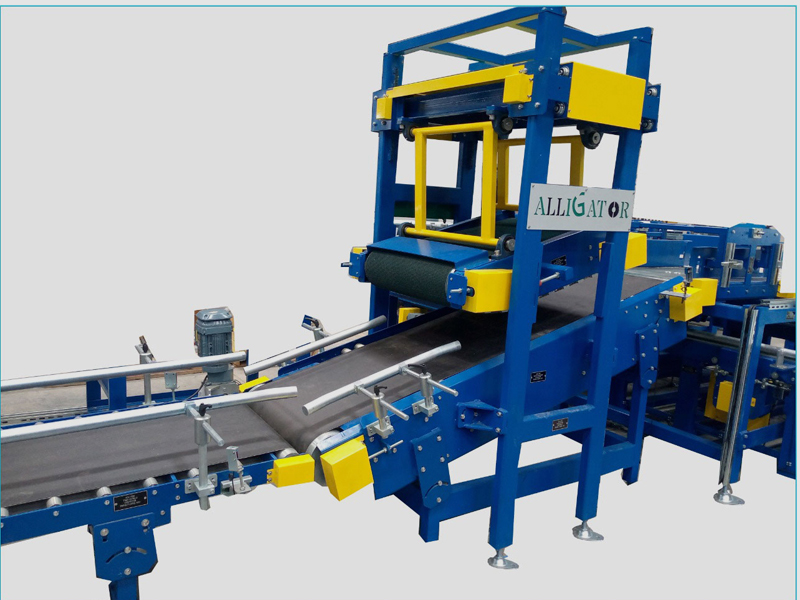

Bag Flattners
Alligator Automation provides you numerous accessories to your bag filling requirements. Bag- flattener is device to give the bag uniform shape by compacting it. Due to uniform shape & flat surface bag-pallet becomes stable. Stacking of bag for different patterns becomes stable.
STANDARD FEATURES
- Speeds up to 20 bags per minute.
- Robust Construction.
- Adjustable to accommodate most bag sizes.
- Customized designs to integrate in any bagging line.
- Adjustable level for various bag thickness.
- Can be upgraded with a vibrator.
TECHNICAL SPECIFICATION
| Type | Conveyor Type Bag Flattener |
| Conveyor Width | 400mm Min. - 800mm Max. |
| Convey Height | 350mm Min. - 3500mm Max. |
| Total Length | To Be Specified By Requirement |
| Speed Of Conveyor | 6-30 m/min |
| Material Of Construction | MS. |
| Flattening Level | Adjustable |
