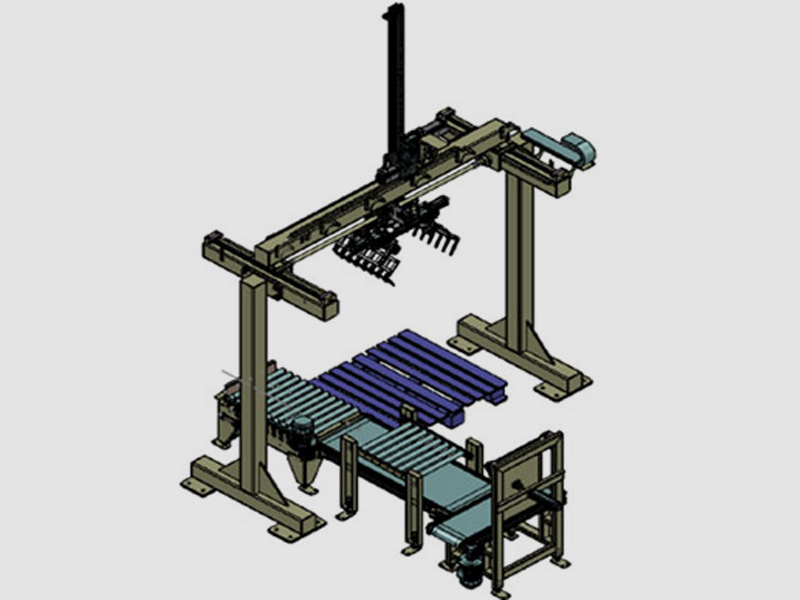

Gantry Palletizing
Gantry Palletizing
- To pick Products from infeed conveyor and place it on pallet in specified pattern.
- To overcome higher cost of multi-axis robot palletizing.
FEATURES
- Compact footprint effectively uses limited floorspace.
- User-friendly HMI
- 4 Servo Axis of Motion
- Robust Heavy Duty Design
| Axis of motion | 2/3/4 AXES (Customized as per application) |
| Pay load | 5Kgs – 80Kgs |
| Speed | Upto 1200 Products/Hr |
| Type of Motors | Servo |
| Min Pallet Dimension | 800X1200mm |
| Max Pallet Dimension | 1600 X 1600mm |
| Max Pallet Load | 2000 Kgs |
| Power | 3 Phase,415V, 50 Hz |
