Pallet Conveyor
At Alligator, we understand the need for creating smart solutions that increase the efficiency of a workplace. Our high-end Pallet conveyors create systems that streamline the workflow thus imporving productivity. Keeping in mind that each workplace and product is unique, we have tailor made solutions and layouts according to specific requirements.

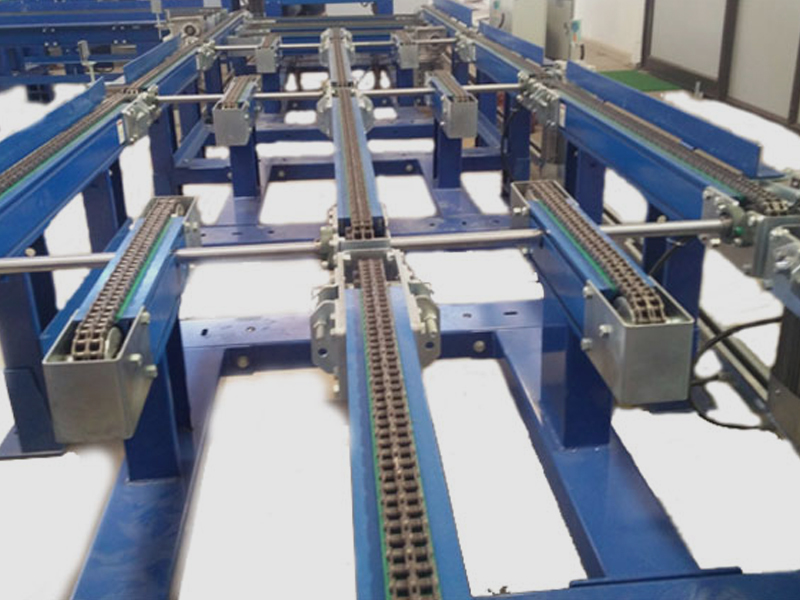

Chain Pallet Conveyor
PURPOSE
- To carry filled pallet loads.
- To supply empty pallets in an automatic palletizing system.
FEATURES
- Robust Construction.
- Available in 2/3/4 track designs
- Available with intermediate tie members to transfer pallets smoothly between the two conveyors.
- Available with standard logic to control flow of pallets.
- Long life
- Low maintenancee
TECHNICAL SPECIFICATION
| Type | Chain Type |
| Working Height (Chain Top) | 200-1500mm |
| Standard conveyor length | Can be tailored for any size from 1200mm – 4000mm |
| Motor | Geared Motor |
| Structure | MS Powder Coated |
| No of tracks | 2/3/4 track design |
| Chain Type | Simplex/Duplex Roller Type |
| Chain Guides | UHMWPE Strips |
| Load Carrying Capacity | 1000-2500 Kgs |
| Sensor | Photoelectric sensor |
| Tensioning arrangement | Individual tensioning arrangement |
| Speed | 12-18 m/min |

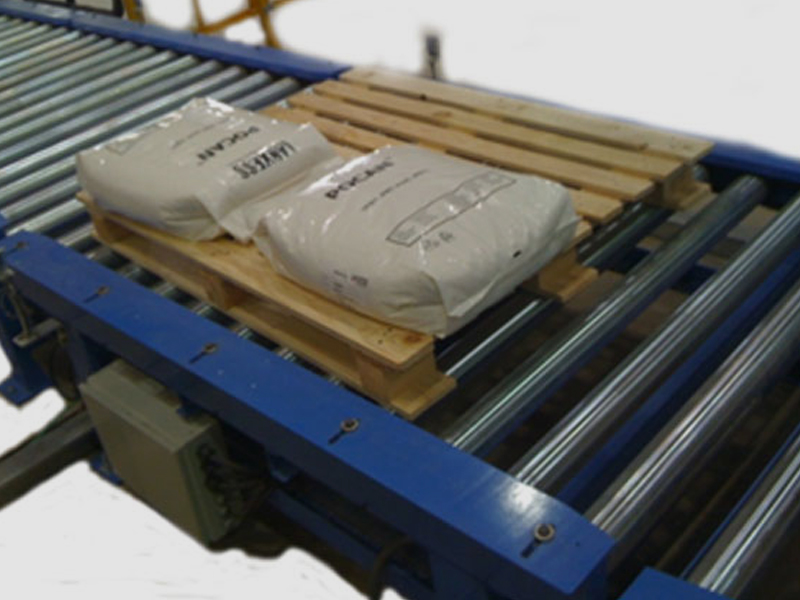

Roller Pallet Conveyor
PURPOSE
- To carry filled pallet loads
- To supply empty pallets in an automatic palletizing system.
FEATURES
- Robust Construction.
- Available in 2/3/4 track designs
- Available with intermediate tie members to transfer pallets smoothly between the two conveyors.
- Available with standard logic to control flow of pallets.
- Long life
- Low maintenancee
TECHNICAL SPECIFICATION
| Type | Roller Type |
| Working Height | 300-1500mm (Customized) |
| Overall Length | Can be tailored for any size from 1200mm – 4000mm |
| Motor | Geared Motor |
| Structure | MS Powder Coated |
| Material of Rollers | MS Galvanized |
| Support Bearings on Rollers | Precision ball bearings on both sides |
| Drive | Chain Sprocket |
| Roller Diameter | Optional 76/80/86mm |
| Pitch between rollers | 150mm |
| Load Carrying Capacity | 1000-2500 Kgs |
| Sensor | Photoelectric sensor |
| Speed | 12-18 m/min |

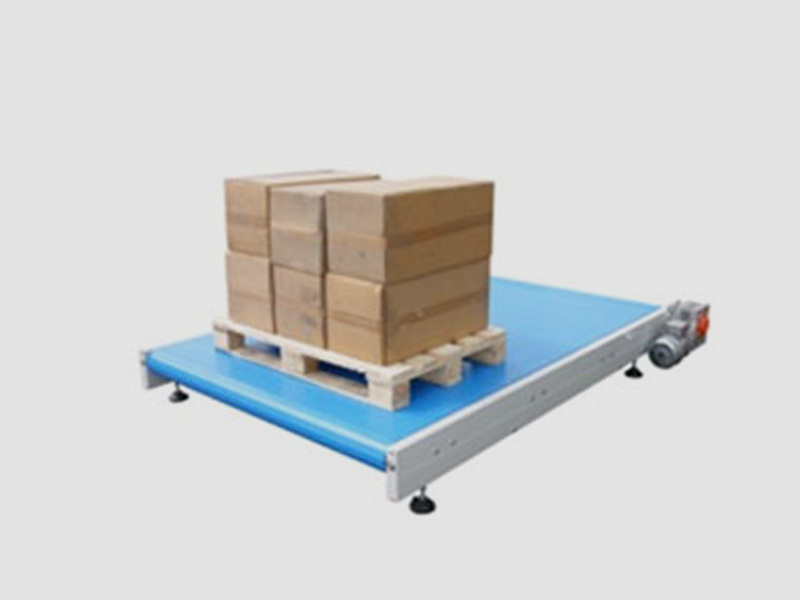

Belt Pallet Conveyor
Belt conveyors are used to transport material both light weight and heavy, from one part of an operation to another. Our specialization lies in belt conveyors and we manufacture belt conveyors that have a robust construction and tensile strength. Using high quality materials, our belt conveyors are fabricated to be top of the line in terms of quality and standard bought out items such as gear box, motors, belts and accessories that provide durability to the conveyor system.
TECHNICAL SPECIFICATION
| Type | Belt Type |
| Working Height (Chain Top) | 200-1500mm |
| Standard conveyor length | Can be tailored for any size from 1200mm – 4000mm |
| Motor | Geared Motor |
| Structure | MS Powder Coated |
| Belt Type | PVC/Polymer |
| Load Carrying Capacity | 1000-2500 Kgs |
| Sensor | Photoelectric sensor |
| Tensioning arrangement | Available |
| Speed | 12-18 m/min |
