Agitator Vibrator is a unit for generating small vibrations for the purpose of sieving / shaking / aligning operations for small components. These are manufactured to work on 220 volts 50 Hz supply. These can be also be customized as per the specific requirement of customers.

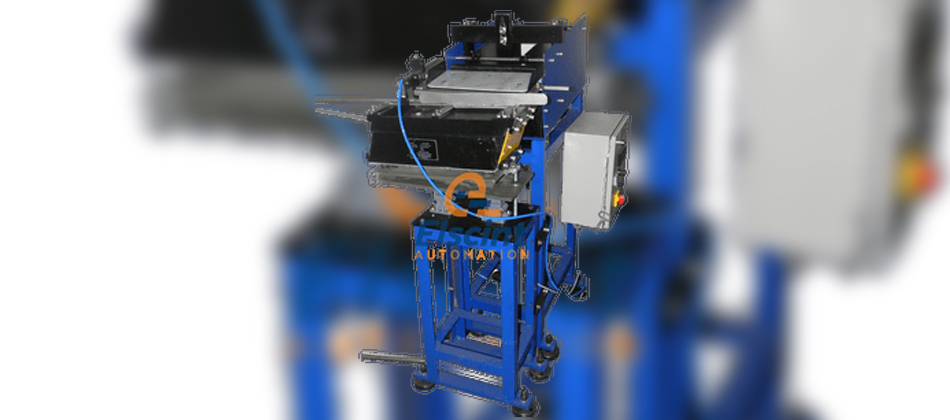

Auto Loading and Unloading System

Elscint manufactures an Auto Loading and Unloading System for centreless grinding machines for longer length shafts having length from 150 mm upto 1 metre. These shafts being of longer length, they cannot be fed from a vibratory bowl feeder. Feeding a variety of shafts of various lengths and diameters is not possible through a vibratory bowl feeder. Hence, keeping in view these problems, Elscint has developed the Auto Loading and Unloading System. The shafts have to be kept on a inclined table, from where a pneumatic cylinder singles out and feeds one shaft at a time to a belt conveyor which feeds the shaft to the centreless grinding machine. After the grinding operation is over, there is a special Elscint unloading belt conveyor by which the shaft is taken out and turned around with the help of transfer station and fed to another Elscint belt conveyor which conveys it back to near the loading station at an unloading collection station and the shafts are aligned there ready for inspection / for the second pass through the centreless grinding machine. Special care is taken so that the shafts do not collide and push each other so that the quality of the ground shafts is maintained. This way, only one operator can do the loading and unloading of two to three machines and productivity can be increased. These units are readily available with Elscint and only minor modifications to suit the layout are required.
