Elscint gets all its controllers made in Europe as per its specifications. Due to its high volumes, it gets a good price and quality from its European suppliers. It passes on these savings to its customers. Elscint Automation offers soft start electronic controllers for vibratory feeders. Various models are on offer depending upon the requirements of customers.
Model E3FC
For ratings up to 360VA (mainly for linear feeders and smaller sized bowl feeders) with 3 Amp current rating.
Model E5FC
For ratings up to 800VA (for bowl feeders and large Linear Feeders) with 6 Amp current rating. This has an overload cut-off provision.
Model ECV/8
For ratings up to 1500VA (for bowl feeders and large Linear Feeders) with 6 Amp current rating.
Model EFQ1.5, EFQ3, EFQ4.5 & EFQ6
These are competitively priced frequency controllers with digital display and digital setting panel. These provide highly stable performance and can guarantee constant voltage and constant frequency to the vibrator unit. These are available at very competitive prices. These are of tremendous value in case of intermittent usage of Genset. Suitable for vibrators having VA ratings from 15 VA to 2000 VA
You can also download the Technical Specifications of all the Frequency Controllers with their camparison chart.
Model ED5V
This is a newly introduced voltage regulator with digital display having inbuilt timer (On / Off Delay) for sensors. Available upto 6 Amps rating. It is settable for 50 Hz and 100 Hz. Ramp too can be adjusted.
Model EP5V
This is a very competitively priced voltage regulator with potentiometer with a 6 Amp rating, suitable for medium to large vibratory bowl feeders and large linear vibrators. It has setting for Full Half and Half Wave.
Model EP4V
This is a low cost voltage regulator with potentiometer for small vibratory bowl feeders and linear vibrators upto 400 VA. It has setting for Full Half and Half Wave.
Elscint CV Series
Series CV (Constant Voltage) regulators are available where along with Constant Voltage requirement, there is a requirement to use a PLC to control the amplitude instead of an external Potentiometer.
Elscint Feedback Controllers
These have a sensor attached to the springs of the vibrator which provides feedback of the load in the vibratory feeder to the controller. The micro-chip in the controller takes this feedback and adjusts itself accordingly. This is of tremendous value in case of changing load and heavy components.
Elscint Double Speedy
In all the above Models, DOUBLE SPEEDY is available i.e. two Potentiometers are given whereby one is used for course adjustment and one for fine adjustment. These are of tremendous use in case of weighting and batching systems.The controllers are specially designed for controlling the amplitude of vibration in industrial electromagnetic vibrators.The system is based on a integrated circuit which guarantees perfect synchronisation of the triac firing pulse with the waveform of the working voltage under all conditions.The controllers also include a suitable circuit for soft start with provision for choosing the ramp time (0.2-2s) and for temperature compensation of the phase angle.Appropriately over specified power stages are provided to handle any overloads without interruption, whether operating at 50Hz or 60Hz.Highly linear adjustment, as well as provision for setting the maximum and minimum vibration limits complete the list of main features embodied in the series E controllers.Vibration regulation is through an external potentiometers and on/off type control with external low power contact for weighing and batching system.
Overload Cut-Off
This is an importance feature in Elscint vibrator controllers. In case the current drawn exceeds set limit, the power supply to the vibrator is switched off automatically, thus saving the vibrator coils.

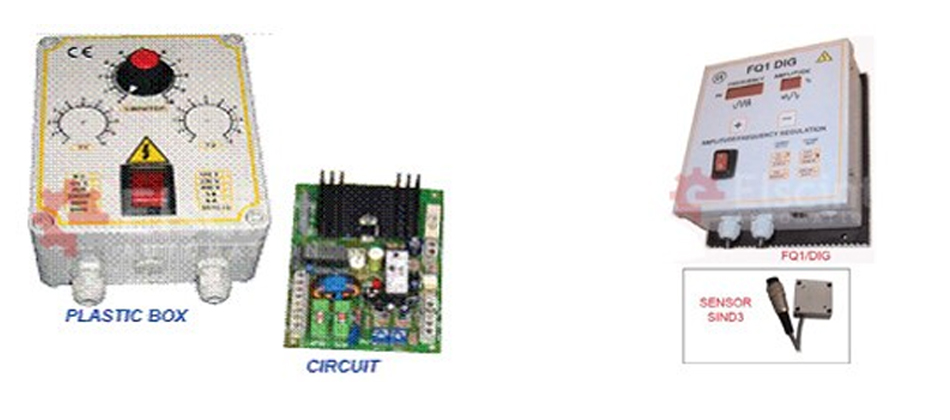

Most Circuits are CE Marked and can either be given with Box or even only Circuits can be provided to Machine Builders for integration in their own Control Panels.
