Elscint represents Italplant indexing systems in India.

The entire range of Italplant Indexing Systems is available in India through Elscint.

You can also download 2D and 3D drawings of the complete Italplant range of Indexing Systems.

MK1 Series – 37.5, 47, 50, 60, 80, 100, 140, 200, 210

From a small table mounted rotary indexer to a 54″ precision link conveyor Italplant have the expertise knowledge and experience to provide a solution for all your indexing needs. Some major products of Italplant –

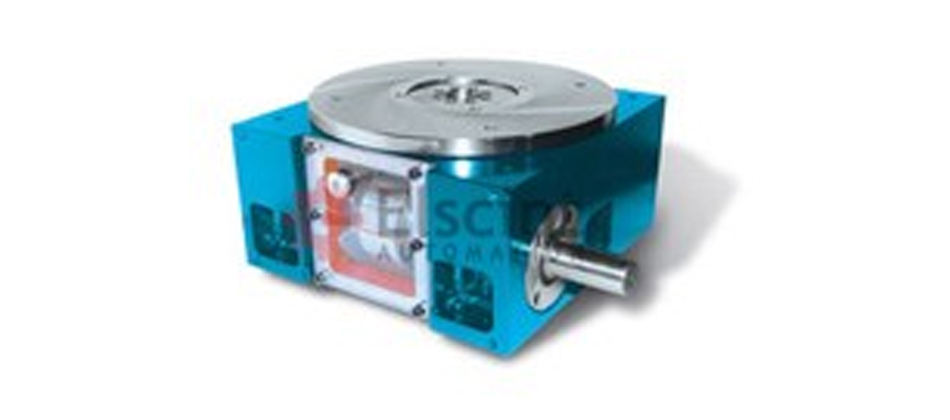

Globocylindrical Cam A very robust and proven standard Indexing with orthogonal axes, compact design and large dial plate. Available from 2 to 32 stops.

Dinamic capacities from 50 to 21.000 Nm
Centre distances from 37,5 to 360 mm

MK2 Series – 210, 325, 425, 500, 650, 800, 1100, 1400 MK2 Sx – 25, 40, 60, 90, 95, 140

MK2 Sp – 805, 1205, 1705, 1805

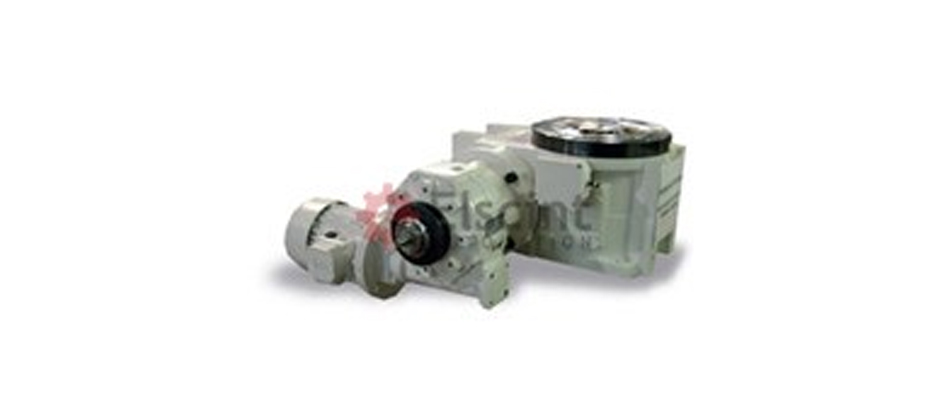

Globoidal Cam HIGH SPEED - 1000RPM Indexing units with orthogonal axes, high accuracy, no backlash. Twin dwell cams and various other cam laws.

Available from 1 to 48 stops.
Dinamic capacities from 100 to 22.000 Nm
Centre distances from 54 to 400 mm

Most of these mechanisms can be supplied with the high speed twin dwell globoidal cams.
Moreover, all of these limiter (SOTL) and adjustable transmission torque (ATT).

PSX HD INDEXERS (PDF)
International patent No: TO 2012 A 000807
(PDF) can be supplied as Oscillators.

Available with safety output transmission torque

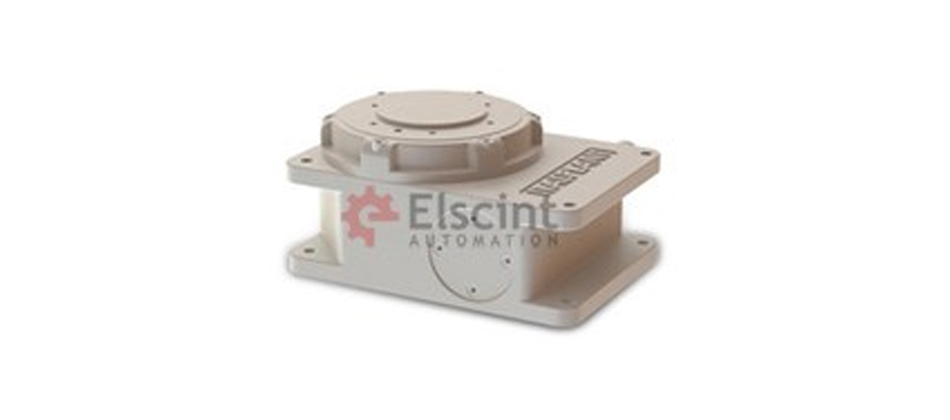

Plastic Indexer Extremely light; Suitable for corrosive and explosive enviornment.

Noiseless
No additional extra measures: external dimensions are the sames of series SX-HD
Possibility to use the same fixtures holes on dial rotating plate

MK3 – Heavy Duty Series / Light Series
MK3 – 65, 80, 100, 105, 125,130, 160,165, 200,250, 315

Available with safety output transmission torque

No maintenance required
Waterproof
Suitable for food packaging
Carbon fiber turret for performance over 1200c/m

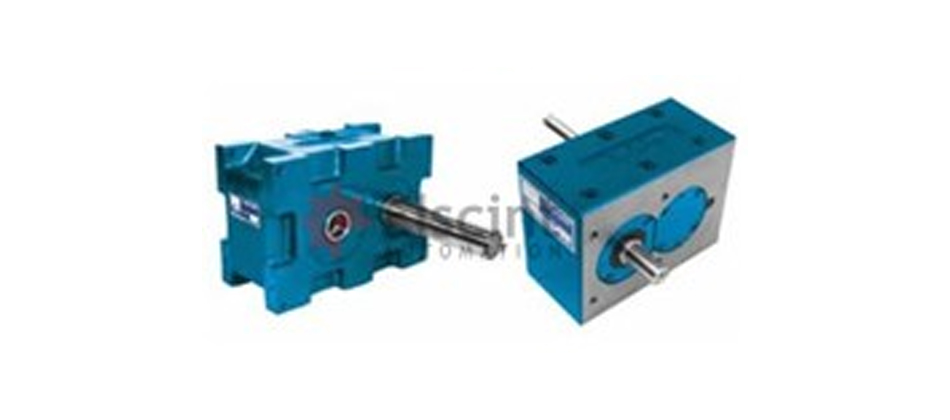

Parallel shaft indexers/oscillators Suited for parallel shafts machinery, from 1 to 8 stops, and from 15 to 45 swing angle.

Damping of momentary overloads.
Dinamic capacities from 50 to 14.000 Nm

Centre distances from 50 to 315 mm

Most of these mechanisms can be supplied with the high speed twin dwell globoidal cams. Moreover, all of these

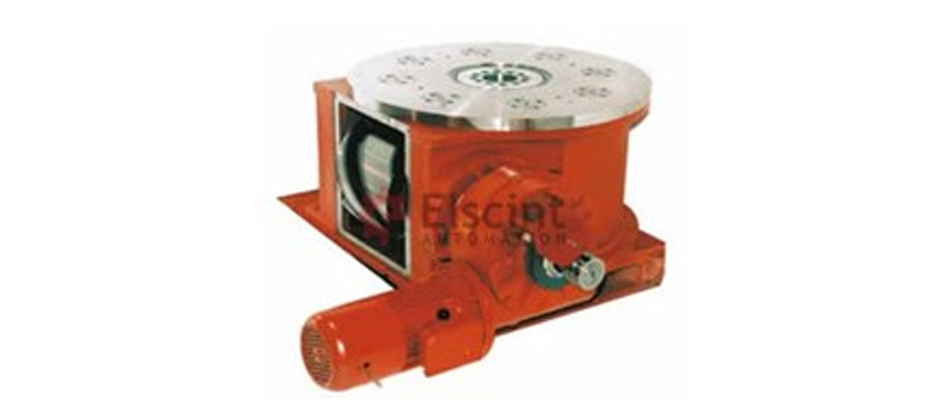

Heavy duty indexers Indexing units with orthogonal axis for large welding plans and big fixtures, up to 16 metres diameter.

From 2 to 24 stops

Dinamic capacities up to 16.000 Nm.
Centre distances from 250 to 360 mm

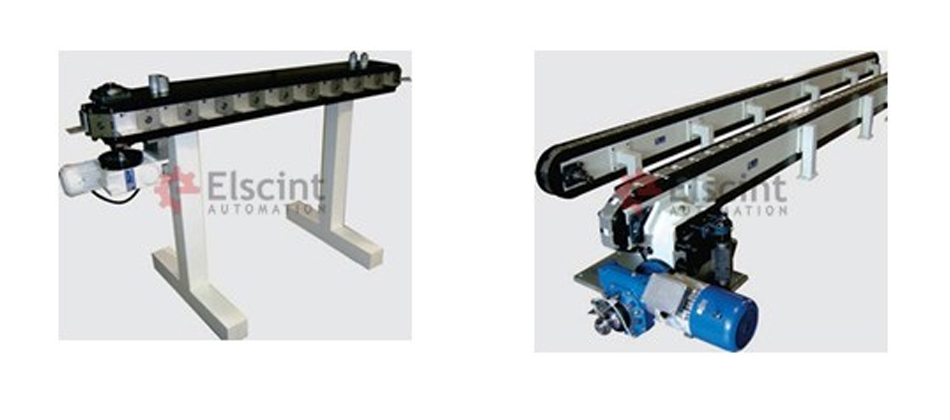

Precision Link Carriers / Conveyors

Precision link carriers for cycle on demand or continuous movements
Precision of positioning ± 0,06 mm.

The ideal solution for multiple stations machinery. Available in 8 sizes (pallet pitch):

1 1/2″, 2″, 3″, 4″, 4 1/2″, 5 1/2″, 8″, 12″ 125mm – 150mm – 250mm

It is possibile special versions with high load capacity, also with double link of pallets.

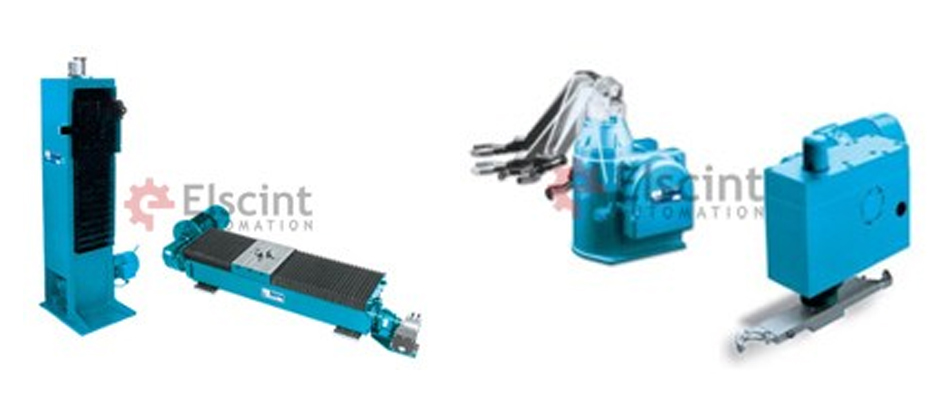

Transfer Systems / Lifts Systems for loads up to 3.000 kg. and accelerations up to 3 gansfer Systems / Lifts Lifts size: ML8, ML10, ML15, ML25, ML30 Transfer system size: MT8, MT10, MT15, MT25 It is possible to have special versions with bigger strokes and chariots.

All Italplant Indexers are compatible with other brands of index units and can be supplied with a dial plate mounted and machined to customer’s exact specifications.

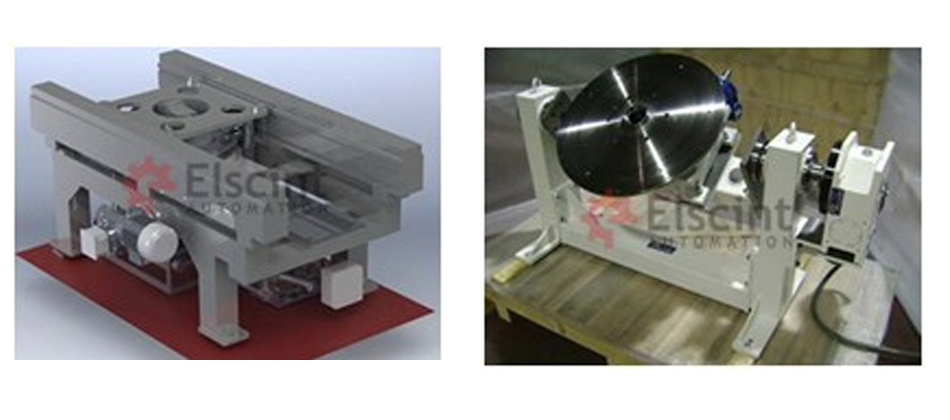

Two axis programmables positioneer

Lift & Turning unit for motor and gearbox assembly lines Where the project requires an inline system Italplant specialise in Precision Link conveyors for high accuracy stations such as laser marking, pad printing and vision inspection applications.

Size and number of indexes can be specified to suit each application vertical lifts with high pay loads and cam high speed rotary pick & place arms can all be supplied.

For more details / study of your application, contact us today or call +91-20-27122059 or write to – sales@elscintautomation.com
