What is Your Roller’s True Shape and Why Does It Matter?

By Stephen Huff, V.P. Manufacturing & Technology, Imperial Rubber Products, Inc.

ABSTRACT:

Roller geometry directly affects the way a web is handled through a machine. Common roll tolerances address roller diameter, taper and TIR. But what do these variations really mean to the end user? Most line operators and engineers have a general understanding of these properties but not how they affect their product let alone the proper way to measure these variations. A simple dial indicator cannot reveal the true concentricity of a roller. This paper will discuss roller geometry variation, its affects on web handling and new-to-the-industry techniques to determine the “real” values for these variations.

DISCUSSION:

Let’s start with the most common tolerances that are used with rollers. This list includes but is not limited to: Diameter, TIR, Runout, Profile, Surface Finish and Crown. In addition, concentricity is specified and in very rare cases, cylindricity is called out. These tolerances are used to describe the variations from the specified roller geometries. If the geometric variances are too great then web handling problems such as wrinkling, stretching, bagging, repeating patterns, poor steering, and tension variation can occur.

Most of the time there are only two variations that are specified when making rollers. These are diameter and TIR. I would propose that these variances are common to most rollers because they are the easiest measurements to take. Just because they are conveniently measured doesn’t mean they are the most critical when it comes to predicting roller success.

TIR or Total Indicated Runout, usually measured with a dial indicator, only tells the measurer how round one slice of the roller is at the location where the dial indicator is contacting the roller. Using TIR as a guiding tolerance implies that the entire roller surface will have the same reading. This is simply not true. A cam shaft is perfectly round at all of its bearing sites. However, I wouldn’t want to use a cam shaft as a backup roller.

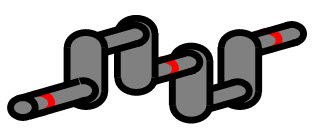

Cam Shafts Are Only Round at their Bearing Points Not Over their Full Length

The more descriptive measurement of a roller’s roundness is called concentricity which looks at how round a roller is with respect to other surfaces such as a bearing journal. This is not a single TIR measurement with one dial indicator. This measurement requires multiple measurements with respect to one controlling surface. This idea is displayed below in the following illustration.

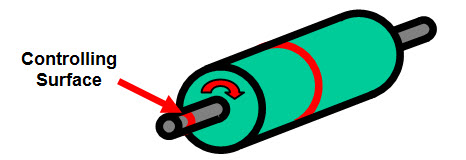

Concentricity References Several Runout Readings to One Controlling Surface

In this case, the concentricity callout would be referenced to the journal measurement slice (red band). First, the journal would be measured to find out how much runout it had. Next, the roller body would be rotated in the same setup and have its runout measured in several locations. These measurements would then need to be compared to each other. The lowest variance from the measurements would be subtracted from the highest variance from the measurements and that would determine the concentricity.

Concentricity can be a difficult measurement to perform correctly using manual methods such as multiple dial indicators. Newly developed tools like Imperial Rubber Product’s TruShape™ measurement system simplify the task. Multiple sensor heads simultaneously take runout readings and display the combined results. These systems are able to clearly show the roundness of your roller. In many cases, concentricity results can then help the roller owner predict success once the roller is ready to be reinstalled in their equipment. Concentricity measurements can also be used to diagnose hard to explain web behavior. Below is an example of a TruShape™ concentricity reading.

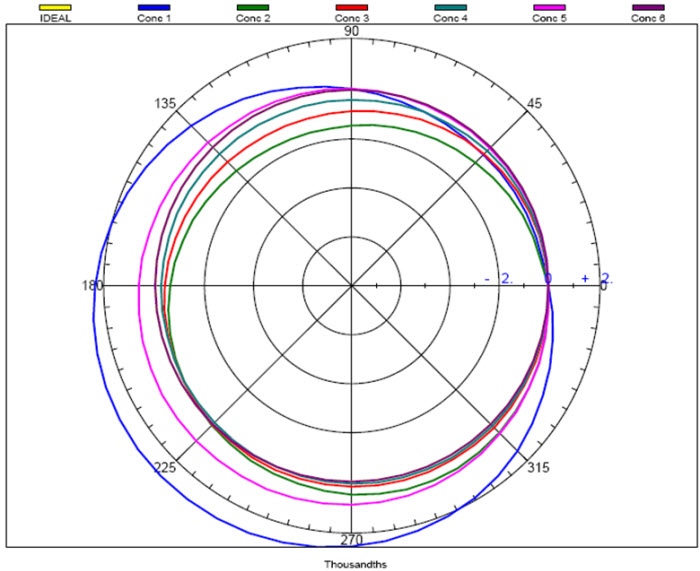

TruShape™ Measurement System — Concentricity Plot (Sample)

This plot clearly displays the relationship of six different roundness readings and how they relate to one another. In short, this is concentricity.

The other roller measurement commonly called for is roller diameter. This is measured in a number of ways including with Pi Tapes and micrometers. In most cases, three to five diameter measurements are made at even increments across the width of the roller face. Many users would take these numbers and call them the roller diameter profile or taper. Taking a few diameter measurements across the face of the roller and saying that it is cylindrical is like taking one TIR measurement and pronouncing that the roller is concentric. In both cases, the measurer once again assumes that no variation happens between the data points.

The more descriptive tolerance that should be specified for geometric roller shape is known as cylindricity. This measurement describes how “cylindrical” a roller is from one end to the other. Cylindricity is found by taking numerous diameter measurements or slices and comparing the highest diameter measurement to the lowest diameter measurement across the entire roller face. The range between the maximum and minimum diameter measurements is the value for cylindricity. Like concentricity, properly determining the cylindricity of a roller can be quite time consuming when using conventional tools. Once measured, the data will probably be inaccurate due to the limitations of the measurement tools themselves. Pi Tapes have a limited accuracy to +/- 0.002 inch and their repeatability between operators varies even more. Micrometers are good on solid surfaces but are very tricky to use on soft elastomeric roll covers. In either case, critical roller cylindricity information is usually lost due to measurement methods and poor resolution.

Imperial Rubber’s TruShape™ measurement system make cylindricity measurements as easy to take as concentricity measurements. With 0.0001 inch repeatability in the diameter and 0.060 inch cross roller increment resolution, large numbers of data points are presented as a continuous plot so that the roller owner can clearly see how cylindrical their roller is. Below are several examples of true profile or cylindricity measurements.

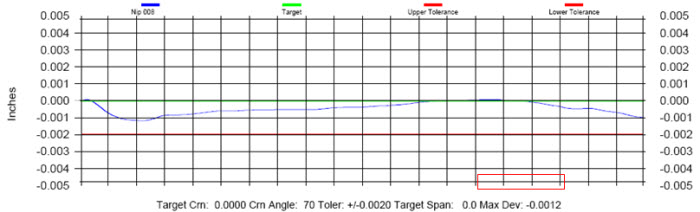

TruShape™ Measurement System — Cylindricity Plot of an Actual Roller

In the above case, the cylindricity is 0.0012 inch. This is noted by the Max Dev. note at the bottom of the plot. (Max Dia. — Min Dia. = Cylindricity)

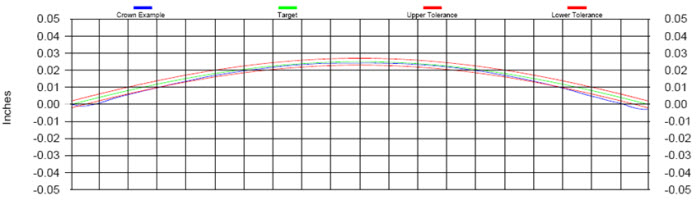

TruShape™ Measurement System – Cylindricity Plot of a Crowned Roller

Lastly, this plot illustrates what can be missed by taking only 3-5 diameter measurements and assuming that the diameter remains the same between data points. Again, this system indicates that this roller has a cylindricity of 0.0043 inch. Several points are within tolerance — but many more are not. An automated continuous measurement system provides the only practical way of discovering a roller’s true shape. Any other traditional method of measuring these features is time consuming and can produce misleading results.

CONCLUSION:

In order to properly prepare rollers for web handling duties, it is important to know a roller’s true shape. The variation of a roller’s geometry can produce many web handling problems. Roller geometry variation must be tightly controlled to produce the greatest chance for success in its machine. The only way to know a roller’s true geometric variation is to measure for concentricity and cylindricity. These variations are difficult to properly measure especially using conventional measuring devices such as dial indicators, Pi Tapes, and micrometers. Advanced electronic measuring systems can produce accurate pictures of the exact geometric shape of your roller. These pictures can help diagnose roller problems and help to insure that new rollers will be successful in your equipment.
