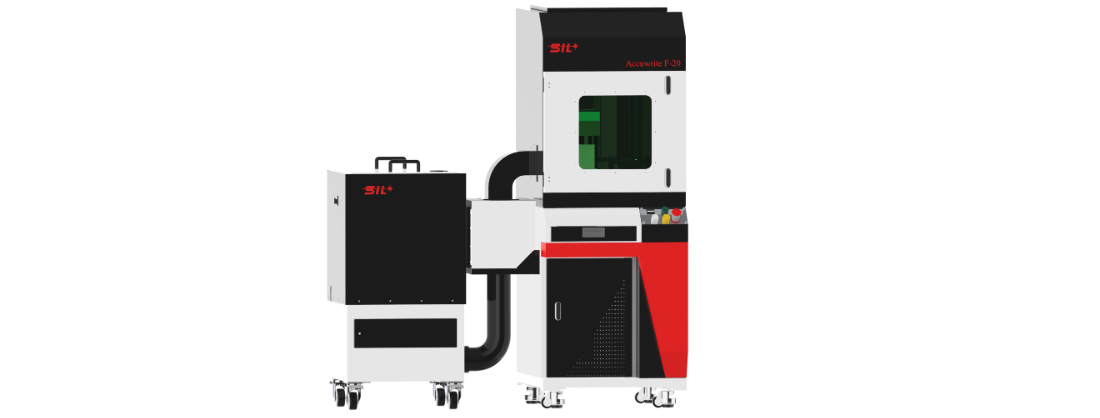

The most advanced Gold Laser Marking Machine

Laser Marking Machine

Fiber laser marker can do, such as surface marking, deep engraving, cutting, etc., in both the jewelry and industrial sectors. It is particularly useful for the marking of texts, logos, designs and graphic patterns. From serial numbering to photo engraving, the LASER-marker is perfect for customizing metallic objects or precious alloys. Power choices for mopa fiber laser source marking machine are 20w, 30w, 50w, 100w, etc. You need to choose different power according to the application. Like surface marking, deep engraving, cutting, etc. Our new type of Mopa Fiber Laser Source Marking this new and revolutionary technology assures extreme and long-lasting reliability, high energy efficiency, and high productive performance.

Computerized Rotary Attachment

Gold Laser Marking Machine is provided with optional rotary attachment which computer controlled round axis movement through software. The Rotary attachment is necessary for laser marking on rings, bracelets and all round or curved objects. The perfect and precision round scale guarantees perfect position of markings, even on particularly curved surfaces. For Hallmarking purpose and for Gold Particles collecting propose, we have two models like with and without enclosed body with Gold Dust Collector.

Specifications

Model SIL Accuwrite F – 20/30/50/60/100 Watts
Power 20 W to 100 W
Wavelength 1063 ±3 nm
Beam quality <1.2 (M2)
Output power adjustment range 10 – 100 %
Pulse repetition rate 20 – 400 KHz
Power stability <±1%
Focus spot diameter <0.05mm
Working area 70 X 70/100 X100/150 X 150/200 X 200/300 X 300 mm
Max marking depth 1.2mm
Max marking speed 1500 standard characters / second
Minimum line width 0.05mm
Minimum character 0.5mm
Repetition accuracy ±0.003 mm
Operation system Windows XP /7/8/10
Cooling mode Air cooling
Ambient temperature 15°C – 35° C
Power requirement 220V/single phase/50Hz/<600W
Life of laser module 100000Hrs
Guide Laser/Red Aiming Beam Yes 660nm
