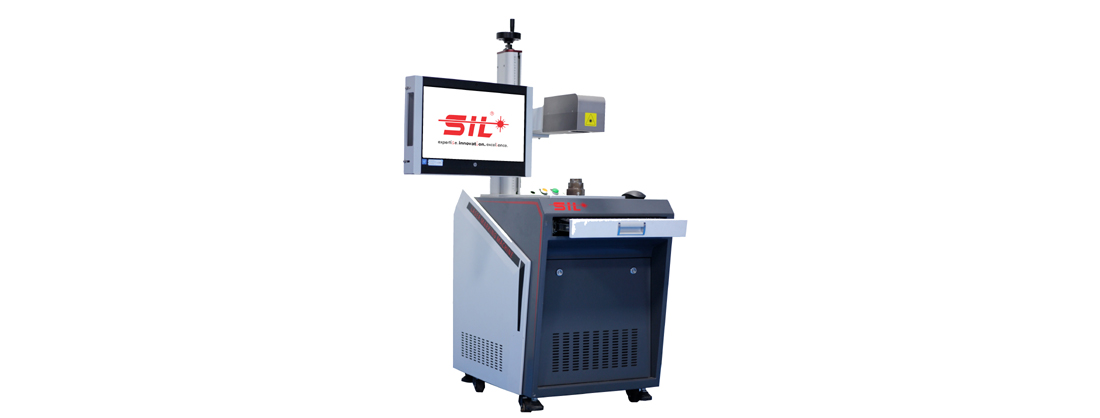

The most advanced small-scale 3D Laser Marking

TA mirror galvanometer is used to scan the laser beam and mark the product surface. Moving the focus lens (used instead of the f˜ lens) back and forth enables adjusting the beam not only on the x and y axes, but also on the z axis.

3D Software Extension

Ideal for the three-dimensional reproduction of designs and engravings with major detail, requiring different levels of engraving depth. This software extension, optionally provided, is based on the management of STL files, allows the 3D reproduction of solids authentic to their real proportions.

3 Axis Auto-Movement

Axis position management through software, allowing the serial marking of multiple objects on the same tray and at the same time, even having different shapes and sizes. Based on the management of Cartesian coordinates, the use of this module, makes possible to program the movement of all axes depending on the position of the objects to be LASER-marked, making possible to boost productivity by the serial marking.

BENEFITS
  • Hi-tech technology
  • Permanent, high quality marks;
  • High efficiency and low operation cost;
  • Good accessibility, even to irregular surface;
  • Non-contact marking and no special working environmental needed;
  • The minimized metallurgical and mechanical damage
  • Easy to automate and integrate (direct writing of patterns can established
  • Using computer-controlled movement of the beam or sample);
  • Precise beam positioning and a beam highly localized energy
  • Transfer to the workpiece;
  • High reproducibility and high speed, effectivity;
  • Minimal heat load,
  • Contamination – free.
