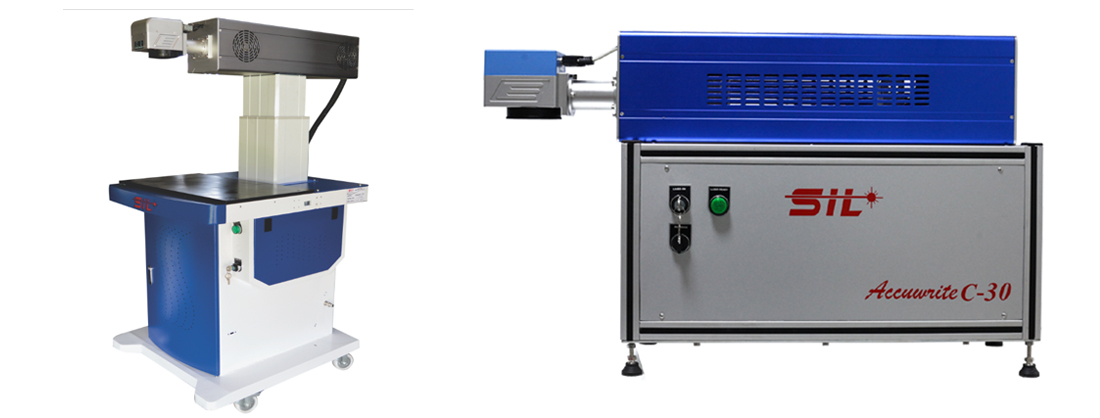

Co2 Laser Non – Metal Marking Machine

SIL Co2 laser markers are widely used in the field of non-metal industry such as garment & shoes engraving, fabric cutting, handicrafts & gift, food printing, soft drink printing, beverage, rubber marking, acrylic marker, marking on plastic, leather engraving industries, automobile industries, personal care products, medical packaging, crystal, organic glass, paper cutting, dual color-board, ceramic, coated metals & many more such applications. SIL Co2 marking machine is versatile & finds application for users requiring highest precision, accuracy, repeatability and fastest speed batch production of tags, logos, nameplate, text, serial numbers, barcodes etc. The Co2 lasers are available in different power ranges. The wavelength of Co2 laser is 10.6 µm & can be used for different non-metals with variable thicknesses. SIL Co2 markers are engineered & manufactured in india. The machine is compact & can be integrated into existing systems. Co2 laser markers take high quality metal laser tube. Metal tube has stable power output, marking precision, repeatability & longer life. Among the outstanding features offered by Co2 laser marking, improved reliability & throughout over conventional solutions such as ink jet printing. SIL Co2 laser marker features all digital technology & marks up to 750 characters per second (stationary marking speed). SIL Co2 laser markers provide a best in class solution for a wide range of marking applications.

BENEFITS
  • SIL Co2 laser marking is specially developed for non-metals marking industry. This machine is equipped with original american RF laser source & high speed galvanometer. The speed offered by machine is extremely high with excellent marking quality. The machine performance is steady & highly reliable. The machine can be in operation 24 X 7. The machine is built keeping ergonomics & safety as priority. The optical system is completely sealed thus prevent optics from being faulty from dust / mishandling.
  • SIL Co2 laser marking machine comes with fastest speed & high precision, accuracy & reliability.
  • The marking depth is controllable depending on the type of material.
  • The software works with windows operating system & is compatible with file format such as .plt, .dxf, .bmp, .pcw & others saved by CorelDRAW, AutoCAD, photoshop etc. The .shx & .ttf can be imported directly into the marking software.

Specifications

Model SIL CO2 XXX
Max.laser power 10 W/ 30 W/ 50 W/ 100 W
Laser wavelength 10.6 μm
Q frequency 1 KHz – 80 KHz
Linear speed ≤ 7000 mm/s
Repeatability ± 0.01 mm
Supply voltage 220 VAC/ 50~60 Hz
Graphic format supported .plt,.dxf,.bmp,.pcw,.dxf,.cdr
Rotary device Optional
