Ball Type Universal Joints

1.Ball Type Joints
2.Hook Type Joints
3.Needle Roller Joints
4.Custom Joints

Ball type joints are suitable for applications requiring High Torque, Low Speed upto 250 RPM and low angle of inclination

Single Ended Ball Universal Joint (SBUJ)

Double Ended Ball Universal Joint (DBUJ)

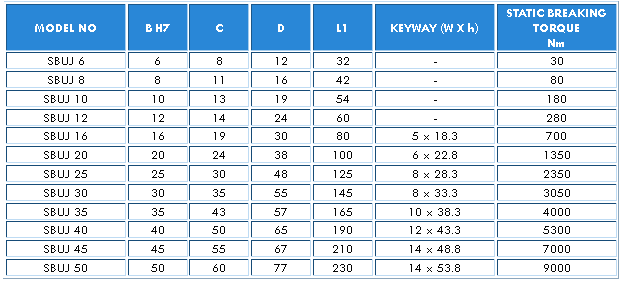

Single Ended Ball Universal Joint (SBUJ)

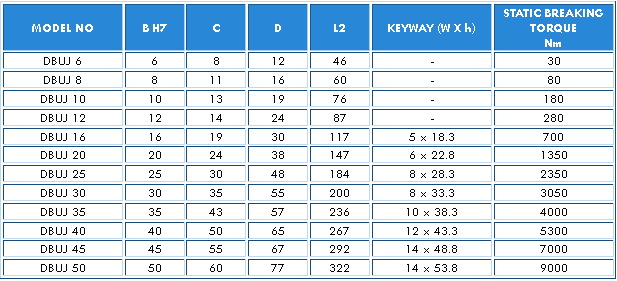

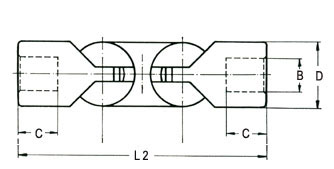

DOUBLE ENDED BALL UNIVERSAL JOINT (DBUJ)

Notes:
All Dimensions are in mm
Please enquire for non-standard size requirement
