Needle Roller Type Universal Joints

1.Ball Type Joints
2.Hook Type Joints
3.Needle Roller Joints
4.Custom Joints

Needle Roller typr joint are suitable for applications requiring for Speed above 800 RPM upto 5000 RPM and high angle of inclination. These joints are ideal for continuous operation and where zero backlash is important.

Single Ended Needle Roller Universal Joint (SNRUJ)

Double Ended Needle Roller Universal Joint (DNRUJ)

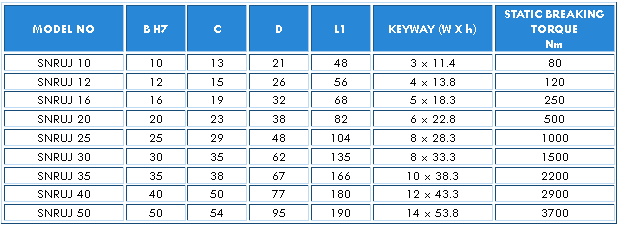

SINGLE ENDED NEEDLE ROLLER UNIVERSAL JOINT (SNRUJ)

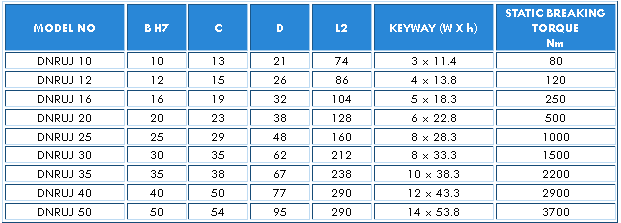

DOUBLE ENDED NEEDLE ROLLER UNIVERSAL JOINT (DNRUJ)

Notes:
All Dimensions are in mm
Please enquire for non-standard size requirement
