Split - Lug Type

In this model T-Slot rails are used and Trip Dogs is positioned on the rail by clamping the T portion of the rail between the split lug and the Trip Dog.
These dogs are available in Aluminium. Limit switch moves on the Derlene insert.

Split-Lug Limit Switch Dogs with Rail

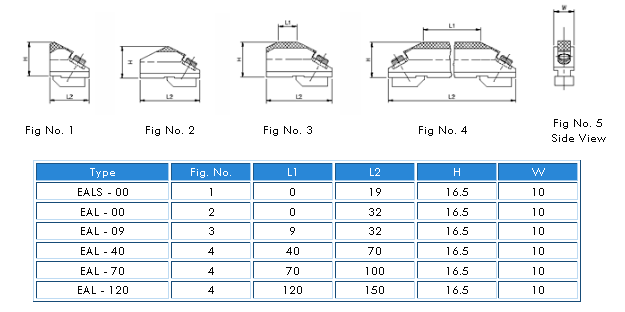

Split-Lug Limit Switch Dogs

Notes:
All Dimensions are in mm
Please enquire for non-standard size requirement
