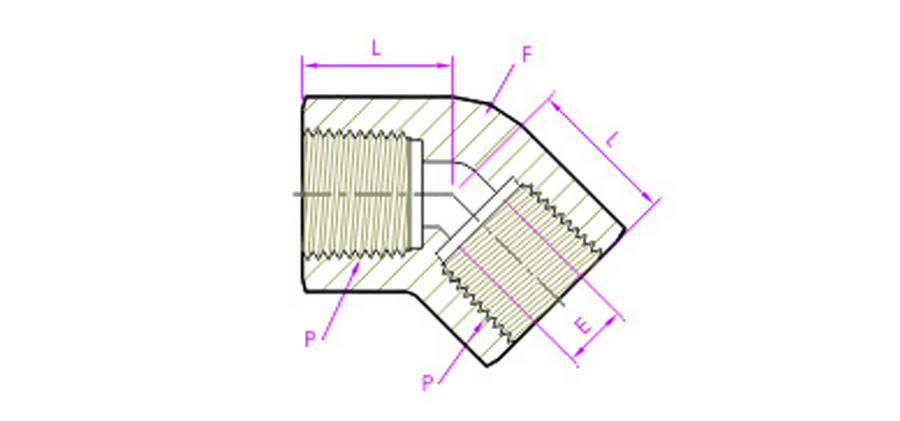

45 Degree Female Elbow
NPTF X NPTF
| Tubefit part no. |
Equivalent Part no. Type 1 |
Equivalent part no Type 2 |
NPT FEMALE PIPE SIZE P |
Ø E |
BODY HEX F |
L |
| 1N-45PFE |
-------- |
1-1FVE |
1/16 |
0.12 |
7/16 |
0.47 |
| 2N-45PFE |
-------- |
2-2FVE |
1/8 |
0.19 |
9/16 |
0.47 |
| 4N-45PFE |
-------- |
4-4FVE |
1/4 |
0.28 |
3/4 |
0.69 |
| 6N-45PFE |
-------- |
6-6FVE |
3/8 |
0.38 |
7/8 |
0.75 |
| 8N-45PFE |
-------- |
8-8FVE |
1/2 |
0.47 |
1-1/16 |
0.94 |
| 12N-45PFE
| -------- |
12-12FVE |
3/4 |
0.57 |
1-5/16 |
1.00 |
| 16N-45PFE |
-------- |
16-16FVE |
1 |
0.71 |
1-5/8 |
1.19 |
