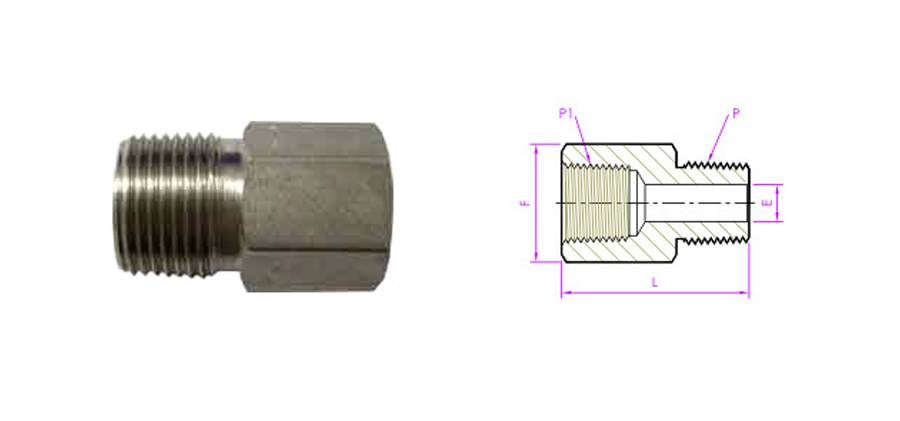

Adapter
NPTF X NPTF
| Tubefit part no. | Equivalent Part no. Type 1 | Equivalent part no Type 2 | NPT FEMALE PIPE SIZE P | NPT MALE PIPE SIZE P | Ø E | BODY HEX F | L |
|---|---|---|---|---|---|---|---|
| 2N-PA | -1-A | 2-2 RA | 1/8 | 1/8 | 0.19 | 5/8 | 1.10 |
| 4N-PA | -4-A | 4-4 RA | 1/4 | 1/4 | 0.28 | 3/4 | 1.40 |
| 6N-PA | -6-A | 6-6 RA | 3/8 | 3/8 | 0.38 | 7/8 | 1.45 |
| 8N-PA | -8-A | 8-8 RA | 1/2 | 1/2 | 0.47 | 1-1/16 | 1.45 |
| 12N-PA | -12-A | ------ | 3/4 | 3/4 | 0.66 | 1-1/4 | 2.02 |
| 16N-PA | -16-A | 16-16 RA | 1 | 1 | 0.88 | 1-23/32 | 2.28 |
