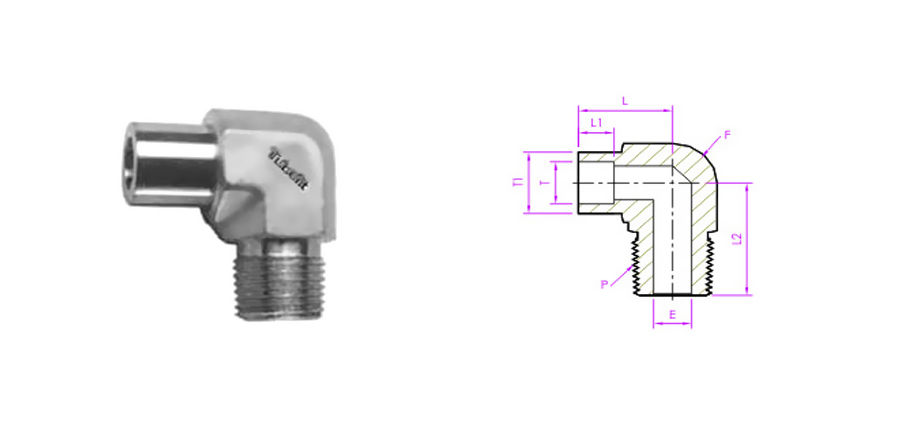

Male Elbow
Fractional Tube Socket Weld X NPTF
| Tubefit part no. |
Equivalent Part no. Type 1 |
ODT-ØT (INCHES) |
NPT MALE PIPE SIZE P |
Ø E |
T1 |
L |
L1 |
L2 |
HEX F |
| 4-WME-4-N |
SS-4-TSW-2-4 |
1/4 |
1/4 |
0.18 |
0.48 |
0.79 |
1.05 |
0.28 |
13/32 |
| 6-WME-4-N |
SS-6-TSW-2-4 |
3/8 |
1/4 |
0.28 |
0.62 |
1.04 |
1.05 |
0.31 |
13/13 |
| 6-WME-6-N |
SS-6-TSW-2-6 |
3/8 |
3/8 |
0.28 |
0.60 |
0.97 |
1.17 |
0.31 |
13/16 |
| 6-WME-8N |
SS-6-TSW-2-8 |
3/8 |
1/2 |
0.28 |
0.60 |
1.02 |
1.45 |
0.31 |
7/8 |
| 8-WME-8N |
SS-8-TSW-2-8 |
1/2 |
1/2 |
0.40 |
0.73 |
1.08 |
1.45 |
0.38 |
7/8 |
| 12-WME-12N |
SS-12-TSW-2-12 |
3/4 |
3/4 |
0.62 |
1.12 |
1.56 |
1.56 |
0.44 |
1-1/16 |
