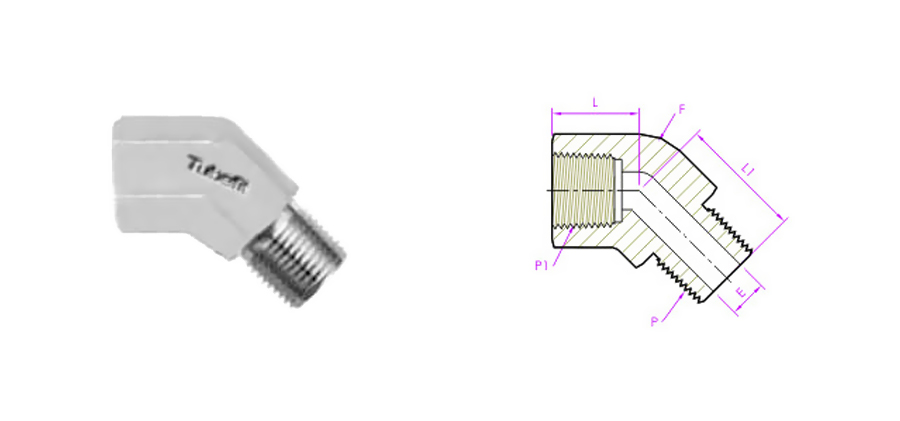

45 Degree Street Elbow
NPTF X NPTF
| Tubefit part no. |
Equivalent Part no. Type 1 |
Equivalent part no Type 2 |
NPT FEMALE PIPE SIZE P |
NPT MALE PIPE SIZE P |
Ø E |
BODY HEX F |
L |
L1 |
| 1N-45PSE |
------- |
1-1 SVE |
1/16 |
1/16 |
0.12 |
7/16 |
0.47 |
0.66 |
| 2N-45PSE |
------- |
2-2 SVE |
1/8 |
1/8 |
0.19 |
9/16 |
0.47 |
0.72 |
| 4N-45PSE |
------- |
4-4 SVE |
1/4 |
1/4 |
0.28 |
3/4 |
0.63 |
1.05 |
| 6N-45PSE |
------- |
6-6 SVE |
3/8 |
3/8 |
0.38 |
7/8 |
0.72 |
1.06 |
| 8N-45PSE |
------- |
8-8 SVE |
1/2 |
1/2 |
0.47 |
1-1/16 |
0.91 |
1.34 |
| 12N-45PSE |
------- |
12-12 SVE |
3/4 |
3/4 |
0.62 |
1-5/16 |
0.97 |
1.38 |
| 16N-45PSE |
------- |
16-16 SVE |
1 |
1 |
0.88 |
1-5/8 |
1.13 |
1.13 |
