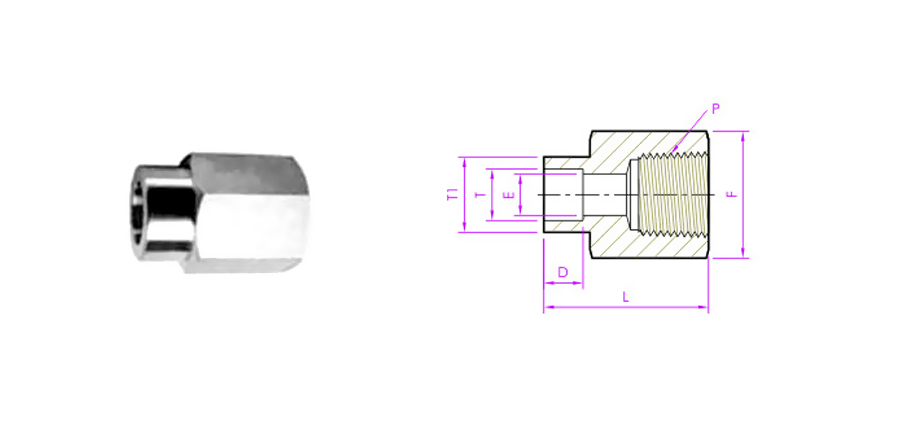

Female Connector
Fractional Tube Socket Weld X NPTF
| Tubefit part no. |
Equivalent Part no. Type 1 |
ODT-ØT (INCHES) |
NPT FEMALE PIPE SIZE P |
Ø E |
T1 |
L |
L1 |
HEXF |
| 2-WFC-2N |
SS-2-TSW-7-2 |
1/8 |
1/8 |
0.09 |
0.29 |
0.83 |
0.10 |
5/8 |
| 4-WFC-2N |
SS-4-TSW-7-2 |
1/4 |
1/8 |
0.18 |
0.48 |
1.05 |
0.28 |
5/8 |
| 4-WFC-4N |
SS-4-TSW-7-4 |
1/4 |
1/4 |
0.18 |
0.48 |
1.18 |
0.28 |
3/4 |
| 6-WFC-4N |
SS-6-TSW-7-4 |
3/8 |
1/4 |
0.28 |
0.60 |
1.24 |
0.31 |
3/4 |
| 8-WFC-6N |
SS-8-TSW-7-6 |
1/2 |
3/8 |
0.40 |
0.73 |
1.36 |
0.38 |
7/8 |
| 8-WFC-8N |
SS-8-TSW-7-8 |
1/2 |
1/2 |
0.40 |
0.73 |
1.59 |
0.38 |
1-1/16 |
| 10-WFC-8N |
SS-10-TSW-7-8 |
5/8 |
1/2 |
0.50 |
0.92 |
1.65 |
0.41 |
1-1/16 |
| 12-WFC-12N |
SS-12-TSW-7-12 |
3/4 |
3/4 |
0.62 |
1.04 |
1.73 |
0.44 |
1-1/4 |
