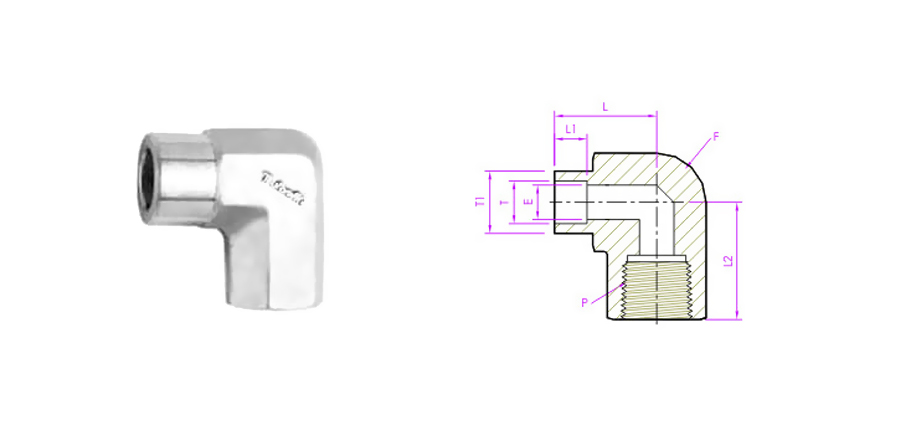

Female Elbow
Fractional Tube Socket Weld X NPTF
| Tubefit part no. | Equivalent Part no.Type 1 | ODT-ØT(INCHES) | NPT FEMALE PIPE SIZE P | Ø E | T1 | L | L1 | L2 | HEX F |
|---|---|---|---|---|---|---|---|---|---|
| 4-WFE-4N | SS-4-TSW-8-4 | 1/4 | 1/4 | 0.19 | 0.48 | 0.9 | 1.17 | 0.28 | 13/16 |
| 6-WFE-4N | SS-6-TSW-8-4 | 3-8 | 1/4 | 0.28 | 0.60 | 0.99 | 1.17 | 0.31 | 13/16 |
| 6-WFE-8-N | SS-6-TSW-8-8 | 3/8 | 1/2 | 0.28 | 0.60 | 1.13 | 1.56 | 0.31 | 1-1/16 |
| 8-WFE-8N | SS-8-TSW-8-8 | 1/2 | 1/2 | 0.40 | 0.73 | 1.19 | 1.56 | 0.38 | 1-1/16 |
