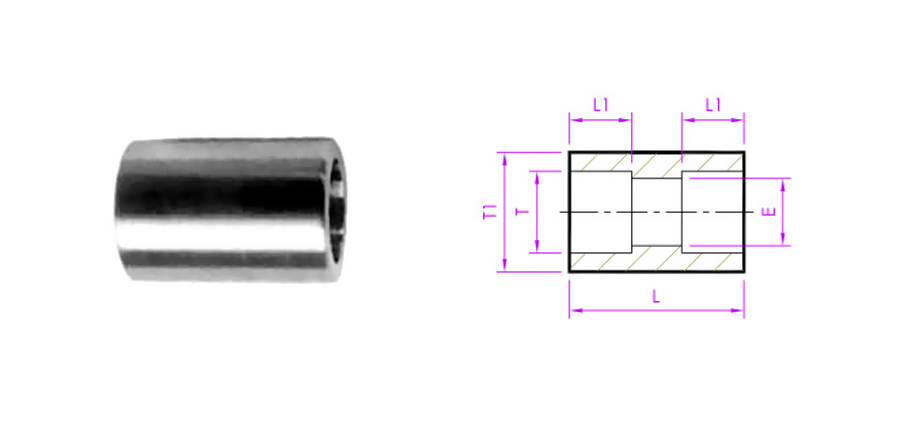

Pipe Union
Fractional Tube Socket Weld X NPTF
| Tubefit part no. | Equivalent Part no. Type 1 | PIPE SIZE ØP (INCHES) | Ø E | ØT1 | L | L1 |
|---|---|---|---|---|---|---|
| 4-WPU | SS-4-PSW-6 | 1/4 | 0.40 | 0.98 | 1.06 | 0.38 |
| 6-WPU | SS-6-PSW-6 | 3/8 | 0.50 | 1.11 | 1.12 | 0.44 |
| 8-WPU | SS-8-PSW-6 | 1/2 | 0.73 | 1.36 | 1.12 | 0.50 |
| 12-WPU | SS-12-PSW-6 | 3/4 | 0.93 | 1.48 | 1.75 | 0.62 |
| 16-WPU | SS-16-PSW-6 | 1 | 1.06 | 1.86 | 1.75 | 0.62 |
